UPD720100AGM-8EY-A Folha de dados(PDF) 17 Page - Renesas Technology Corp

Nome de Peças UPD720100AGM-8EY-A
Descrição Electrónicos  MOS INTEGRATED CIRCUIT
PDF  34 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  RENESAS [Renesas Technology Corp]
Página de início  http://www.renesas.com
Logo RENESAS - Renesas Technology Corp

UPD720100AGM-8EY-A Folha de dados(HTML) 17 Page - Renesas Technology Corp

Back Button UPD720100AGM-8EY-A Datasheet HTML 13Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 14Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 15Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 16Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 17Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 18Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 19Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 20Page - Renesas Technology Corp UPD720100AGM-8EY-A Datasheet HTML 21Page - Renesas Technology Corp Next Button
Zoom Inzoom in Zoom Outzoom out
 17 / 34 page
background image
Data Sheet S15535EJ3V0DS
15
µPD720100A

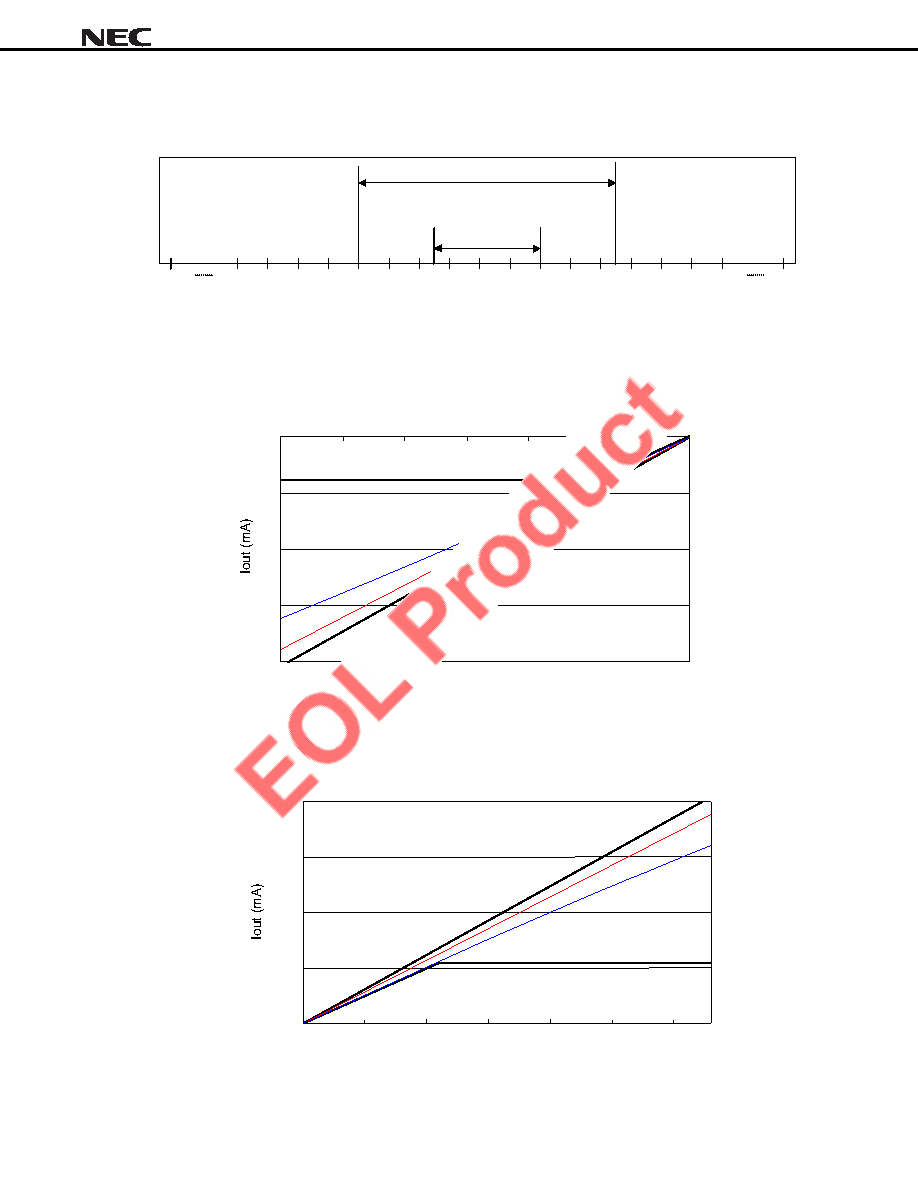

Figure 2-1. Differential Input Sensitivity Range for Low-/full-speed
4.6
-1.0
Input Voltage Range (Volts)
Differential Input Voltage Range
Differential Output
Crossover
Voltage Range
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
Figure 2-2. Full-speed Buffer VOH/IOH Characteristics for High-speed Capable Transceiver
Max.
Min.
-80
-60
-40
-20
0
VDD-0.3
Vout (V)
VDD-2.3
VDD-3.3
VDD-0.8
VDD
VDD-1.3
VDD-1.8
VDD-2.8
Figure 2-3. Full-speed Buffer VOL/IOL Characteristics for High-speed Capable Transceiver
Max.
Min.
80
60
40
20
0
0
0.5
1
1.5
2
2.5
3
Vout (V)



Html Pages

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34


Folha de dados Download

Go To PDF Page
