Nexperia

BAS416

Low-leakage diode

13. Soldering

0.95

1.65

2.2

2.1

3.05

solder lands

solder resist

occupied area

solder paste

0.5

(2×)

0.6

(2×)

0.6 (2×)

0.5 (2×)

sod323_fr

Dimensions in mm

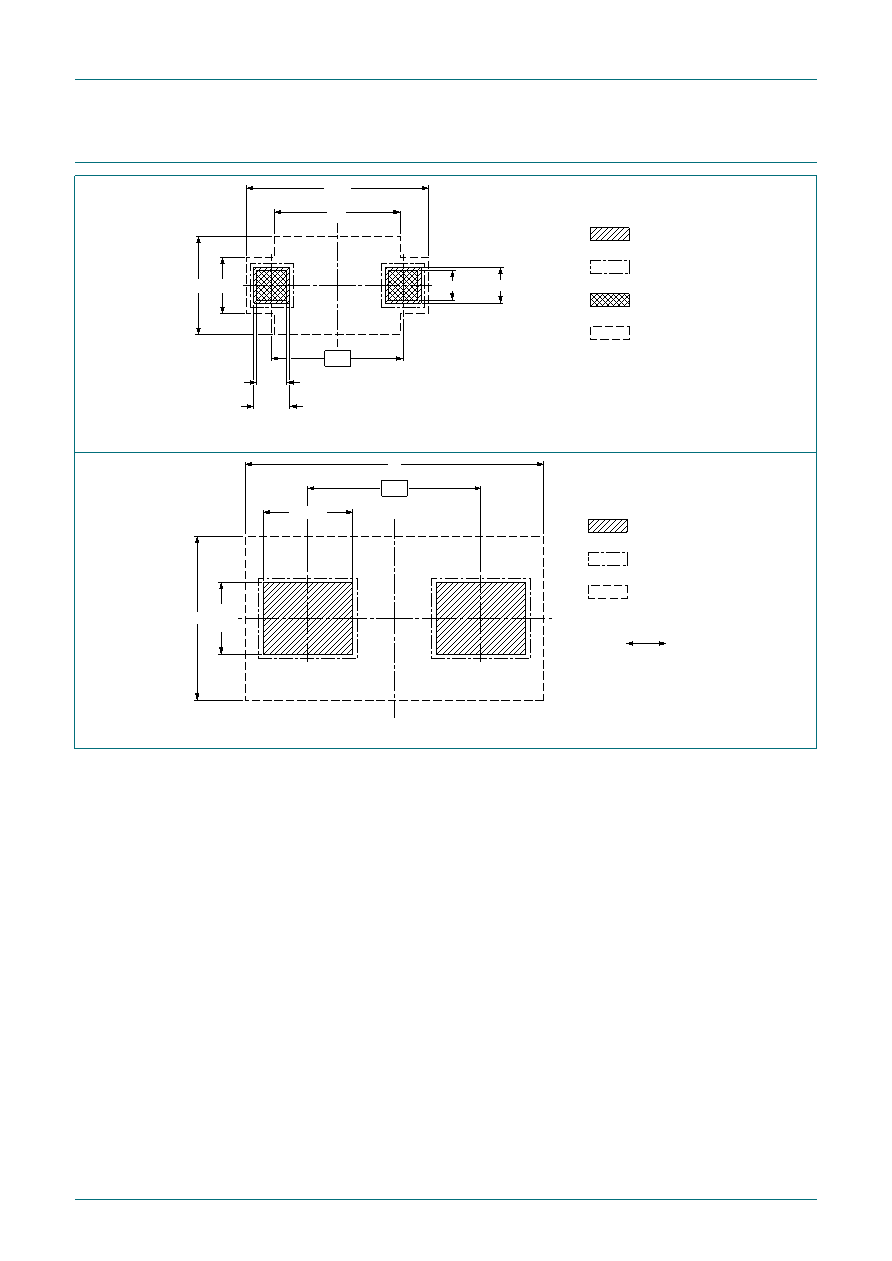

Fig. 8. Reflow soldering footprint for SOD323

1.5 (2×)

2.9

5

1.2

(2×)

2.75

sod323_fw

solder lands

solder resist

occupied area

preferred transport

direction during soldering

Dimensions in mm

Fig. 9. Wave soldering footprint for SOD323
