CRYSTAL OSCILLATORS

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email: nelsales@nelfc.com

www.nelfc.com

Data Sheet 0635F

Specifications:

Product Data Sheet

Features

• SC-cut crystal

• High Stability (up to ± 5x10

-9

)

• Low Aging (5x10

-10

/day, 5x10

-8

/year)

• Low Phase Noise (-160 dBc/Hz, TYP, floor)

• Sine Wave or HCMOS/TTL output

• 4.8 MHz to 160 MHz Frequencies Available

Applications

• Telecommunication Systems

• Data Communications

• GPS

• Instrumentation

OGX8HXXXXX Series

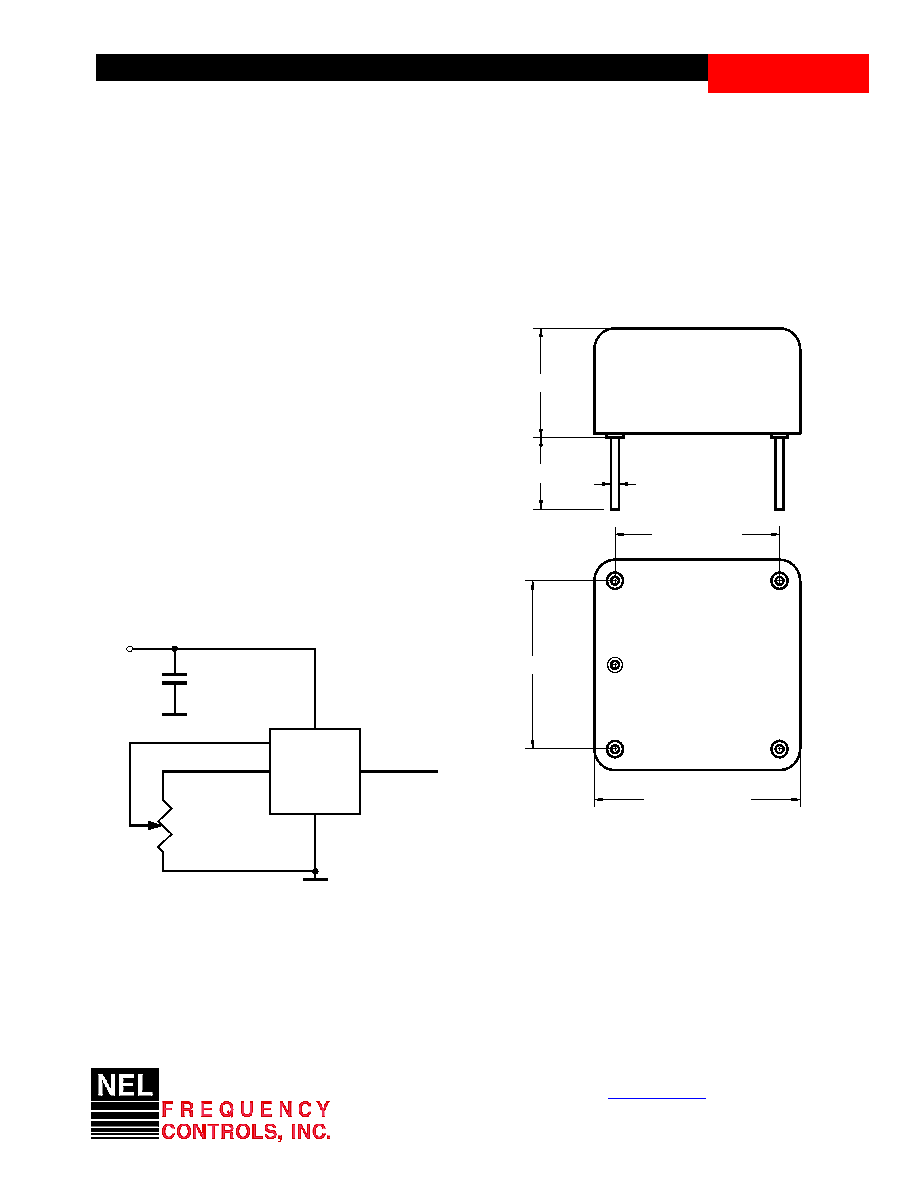

Precision SC-cut OCXO in 1”x1” Through Hole Package

10K

Vref

2

5

DUT

4

1

Vc

3

Vcc

OUTPUT

1

2

3

4

5

1.00 (25,4 mm) SQ.

0.75 (19,05 mm)

Ø0.030 (0,76 mm) TYP

0.50 (12,7 mm)

0.75 (19,05 mm)

0.25 (6,35 mm)
