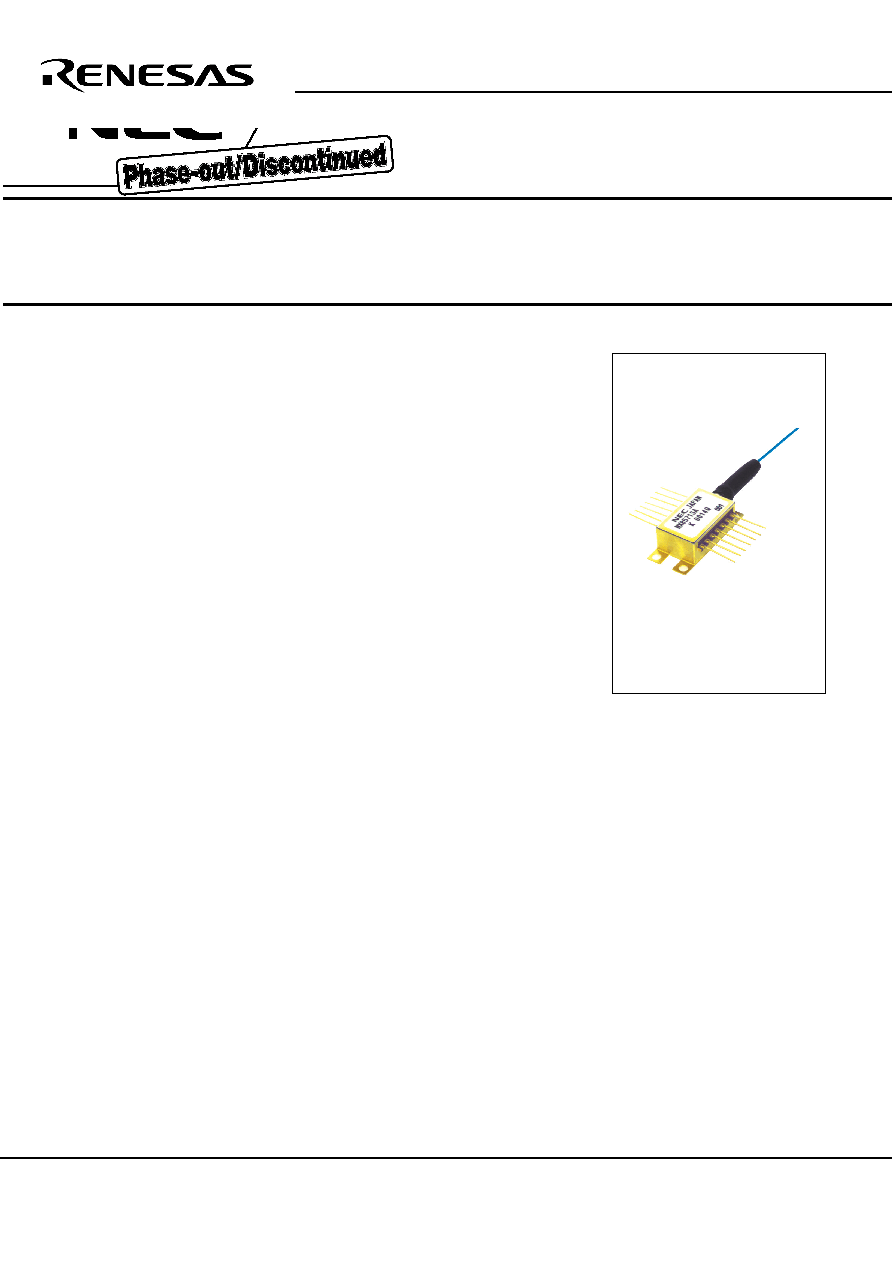

DATA SHEET

The information in this document is subject to change without notice. Before using this document, please confirm that

this is the latest version.

Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices

representative for availability and additional information.

LASER DIODE

NX8571 Series

1 550 nm CW LIGHT SOURCE

InGaAsP MQW-DFB LASER DIODE MODULE

WITH WAVELENGTH MONITOR

Document No. PL10136EJ04V0DS (4th edition)

Date Published September 2005 CP(K)

Printed in Japan

 NEC Compound Semiconductor Devices, Ltd. 2002, 2005

The mark

shows major revised points.

DESCRIPTION

The NX8571 Series is a 1 550 nm Multiple Quantum Well (MQW)

structured Distributed Feed-Back (DFB) laser diode module with wavelength

monitor function.

This device is temperature tunable over 4

× 50 GHz

channels. Available at both C-band (1 530.334 to 1 565.087 nm) and L-band

(1 565.496 to 1 608.760 nm) ITU-T grid wavelengths.

This device is designed as CW light source and ideal for transmission

systems in which external modulators are used.

FEATURES

• Wavelength monitor function (Etalon Filter, Wavelength monitor PD)

• Optical output power : Pf = 10 mW MIN.

• Available for DWDM wavelengths based on ITU-T recommendations

(50 GHz grid, please refer to the ORDERING INFORMATION)

• 4 channel wavelength tunable capability for 50 GHz-spacing

(NX8571SC

×××D)

• Internal thermo-electric cooler and isolator

• Hermetically sealed 14-pin butterfly package

• Polarization maintain fiber pigtail
