P9222-R/RN Datasheet
© 2019-2022 Renesas Electronics Corporation
26
May 5, 2022

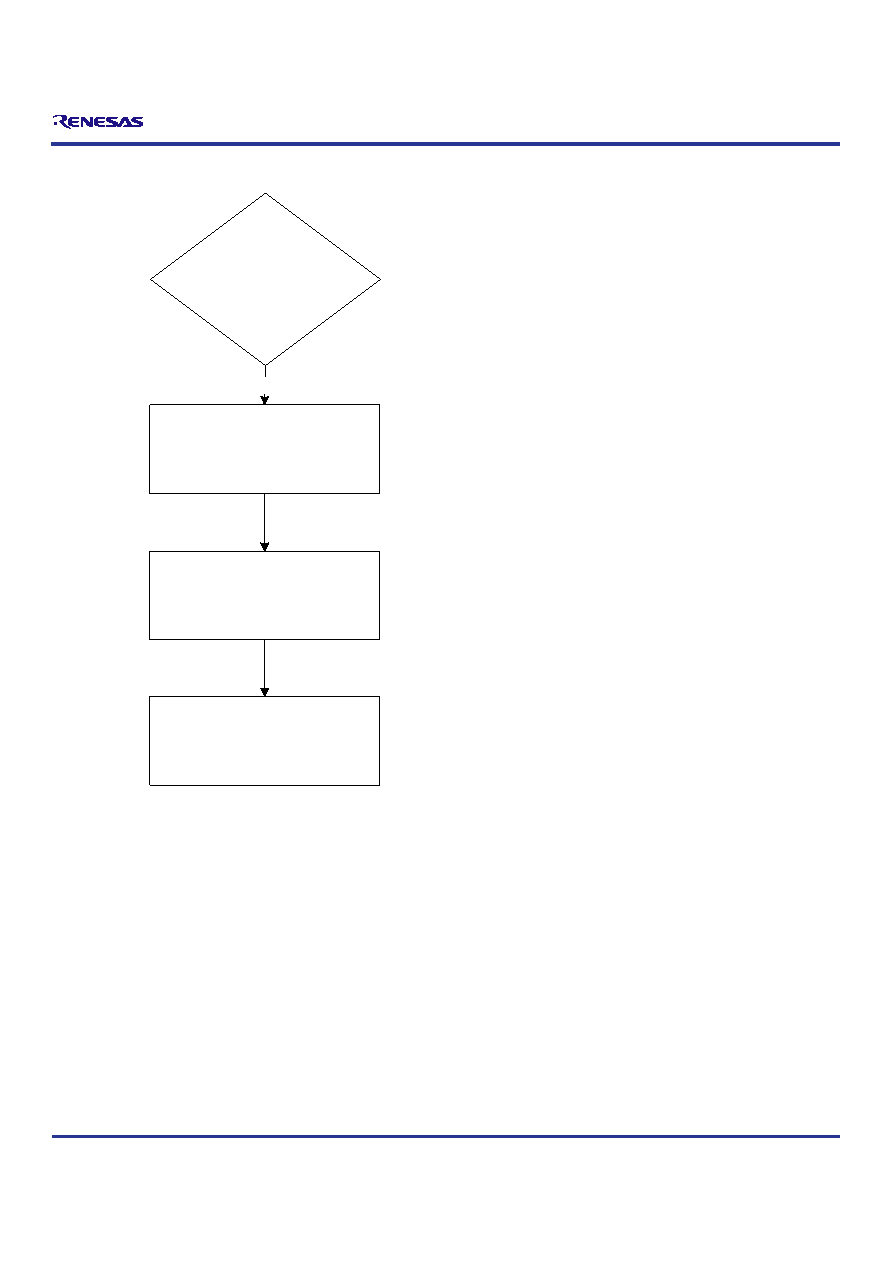

Figure 20. State Diagram for Reading User Data Received from the P9235-RB
If the receiver is sending 1 byte, 2 bytes, and 3 bytes in the
outgoing register, then we would set the header register to 0x18,
0x28, and 0x38 respectively.
Did the INT pin transition
from HIGH to LOW and bit 5 of
register 0x36
set to 1?
Yes
Read the incoming Header register
(0x57) and User Data
registers (0x58 to 0x5F)
Set bit 5 of register 0x3A to 1 to clear
the received interrupt and data
received flag
Set bit 5 of register 0x4E to 1
to clear the interrupt events and reset
the INT pin
