P9221-R Datasheet
© 2017 Integrated Device Technology, Inc.
15
October 10, 2017
7. Functional Block Diagram

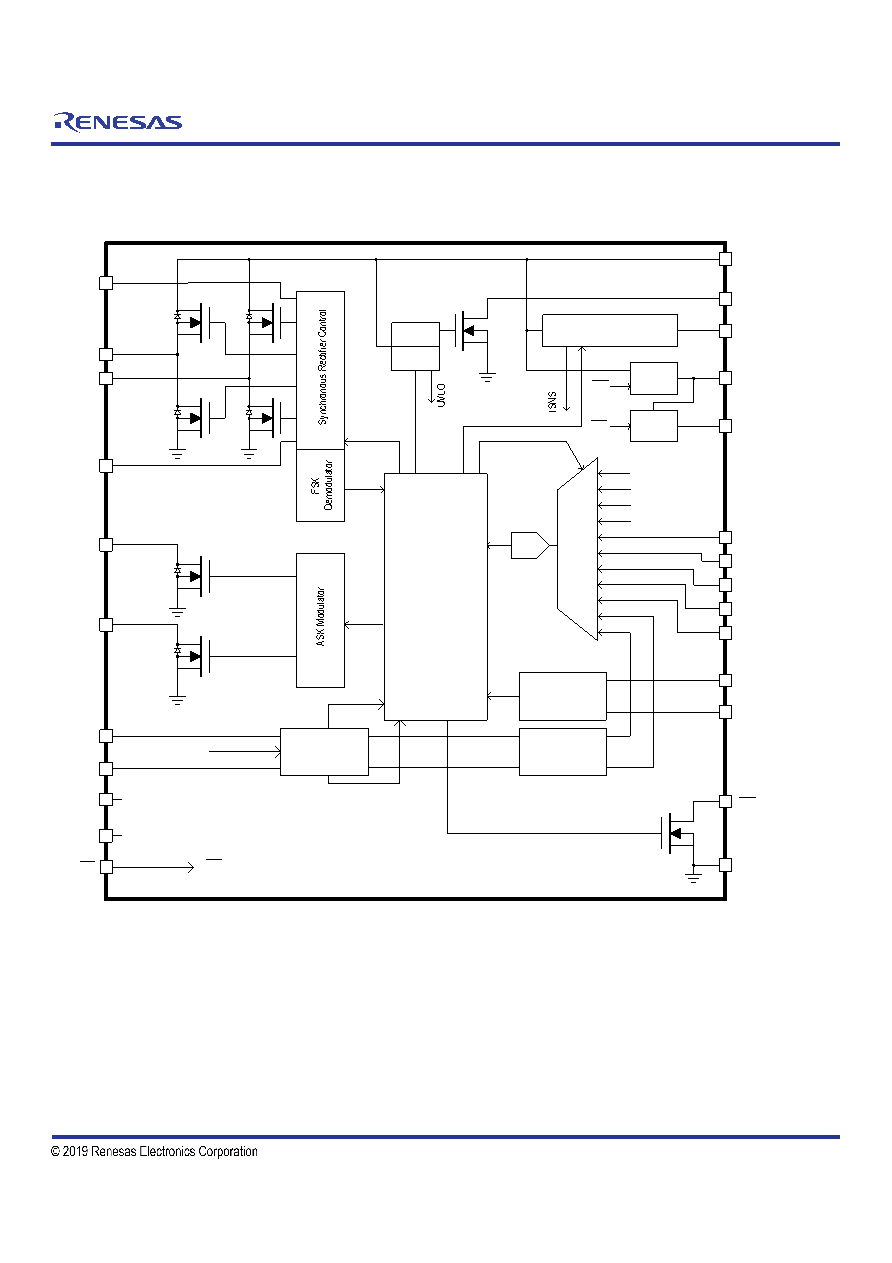

Figure 17. Functional Block Diagram
EN
LDO
VRECT
SINK
OVP
32-bit ARM
Processor
BST1
AC1
AC2
OUT
VRECT
VOUT
ISNS
TS/EOC
ILIM
VOSET/Q-Fact
RPPO
RPPG
VTDIE
ADC
MUX
I2C
Slave
SCL
SDA
Peak Detector
and LPF
VDD5V
LDO
5V
LDO
1.8V
VDD18
GND
UVLO
Phase Detector
AC1
RSVx
EN
EN
EN
INT
BST2
COMM1
COMM2
ALIGNX
ALIGNY
DEN
