LOW-POWER CK420BQ DERIVATIVE FOR PCIE COMMON CLOCK ARCHITECTURES
932SQL450 DATASHEET

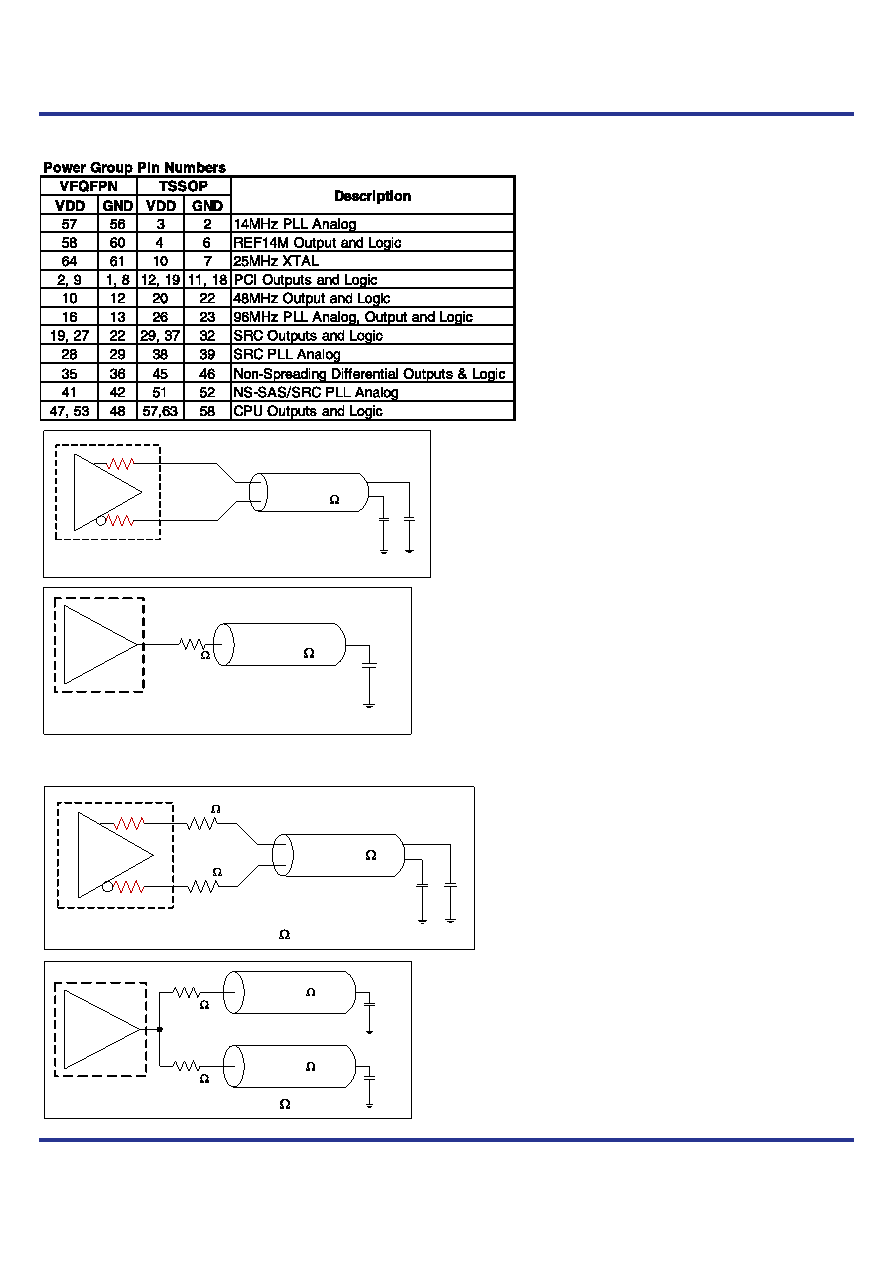

Power Supply and Test Loads
Alternate Terminations
Low-Power Differential Output (w/Integrated Rs) Test Load
2pF
10 inches
Zo = 85
2pF
Rs=27
CL=5pF
20 inches
Zo = 50
Single-ended Output Test Load
Alternate termination for driving 100 transmission lines
2pF
Zo = 100
2pF
Rs=7
Rs=7
Rs=16
Zo = 50
CL=5pF
Rs=16
Zo = 50
CL=5pF
Alternate termination for driving 2 50 loads
