OUTPUT SPECIFICATIONS

Voltage accuracy

±1.0%, max.

Line regulation

NL to FL

±0.02%

Load regulation

FL to NL, Single outputs

±0.04%

FL to NL, Dual outputs

±0.05%

Cross regulation

Dual outputs

±0.5%, max

(Voltage balance)

Ripple and noise

Single output

10mV pk-pk, typical,

20MHz BW

65mV pk-pk, max.

Dual output

6mV pk-pk, typical,

35mV pk-pk, max.

Transient recovery

NL to FL, all outputs

10µs

time to 0.1% of final

FL to NL, single output

200µs

value

FL to NL, dual output

20µs

Temperature coefficient Single output

±0.02%/°C

Dual output

±0.01%/°C

Current limit

130% to 180% Iout

Short circuit protection

See Note 4

Thermal limit

INPUT SPECIFICATIONS

Input voltage range

See table on facing page

Input filter

See Note 3

Pi network

EMC CHARACTERISTICS

Conducted emissions

EN55022, EN55011, FCC 15

Level B

GENERAL SPECIFICATIONS

Efficiency

Single output

61%, min.

Dual output

62%, min.

Isolation voltage

500VDC, min.

Switching frequency

Fixed

20kHz, min.

Case material

UL94V-0

Non-conductive

black plastic

Weight

57g (2oz)

MTBF

680,000 hours

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating ambient

–25°C to +71°C

Non-operating amb. –40°C to +125°C

Case

+95°C, max

Derating

None required

Cooling

Free-air convection

cooled

Relative humidity

Non-condensing

20% to 95% RH

Altitude

Operating

10,000 feet max.

Non operating

40,000 feet max.

Vibration

5Hz to 500Hz

2.4G rms (approx.)

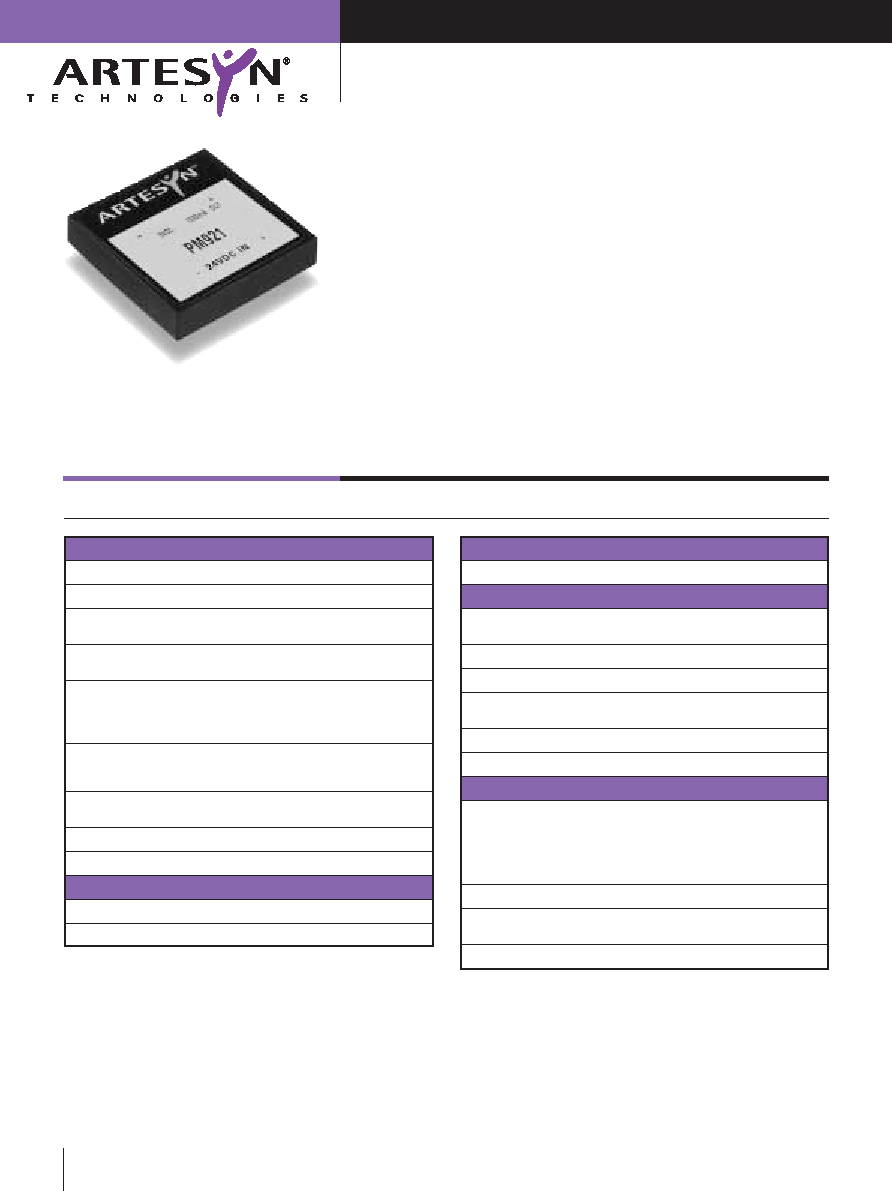

PM900 SERIES

Single and dual output

[ 2 YEAR WARRANTY ]

• Extremely tight line and load regulation

• Short circuit protection

• Pi input filter

• Low ripple output current

• Conducted noise EN55022, EN55011 level B

• Linear topology for high output accuracy and regulation

The PM900 Series of 5 and 6 Watt DC/DC converters are a broad line of high

performance modules with many important features and specifications as

standard. All models contain Pi-type input filters to minimise reflected ripple

current. They are packaged in low profile 2.0 x 2.0 x 0.4 inch cases with

standard and two alternate pin-outs designed for direct PC card mounting. The

units also feature output current limiting, short-circuit protection and

input/output isolation of 500VDC. Other specifications include: an efficiency of

65%; line regulation of ±0.02%; load regulation of ±0.04% for single output

models and ±0.05% for dual output models; low ripple and noise (10mV pk-pk

for single output models and 6mV pk-pk for dual output models); and an output

voltage accuracy of ±1.0%. PM900 Series DC/DC converters are intended for a

wide variety of general industrial applications, especially where low noise

performance is required.

PAGE 1

Data Sheet © Artesyn Technologies® 2000
