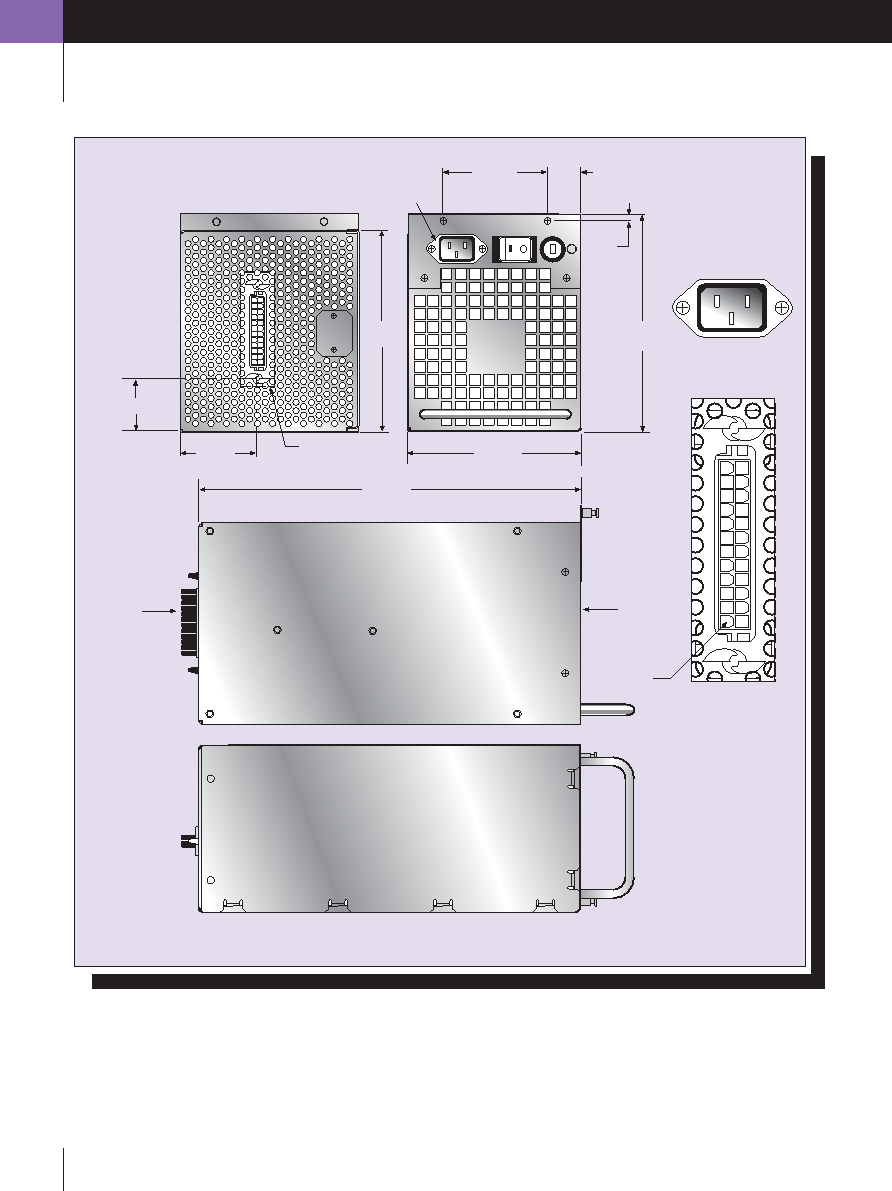

ALL DIMENSIONS IN INCHES (mm)

11.00

(279.40)

0.25

(6.40)

.98

(24.90)

3.00

(76.20)

SEE DETAIL 'B'

VIEW A

VIEW B

J2

DETAIL 'A'

DETAIL 'B'

J1

12

11

10

9

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

13

6.52

(165.60)

6.00

(152.40)

5.00

(127.00)

2.149

(54.58)

1.606 (40.79)

12

11

10

9

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

13

SEE DETAIL 'A'

VIEW B

J1

VIEW A

NL

NL

G

(J2) DC connector

Molex BMI receptacle 42474 part number 15-06-0240 or equivalent with Molex

5556 female crimp terminal part number 39-00-0182 or equivalent.

(J1) AC connector

Standard IEC connector.

(J2) DC mating connector

Molex BMI plug 42475 part number 15-06-0246 or equivalent with Molex 5558

male crimp terminal part number 39-00-0220 or equivalent.

(J1) AC mating connector

Standard IEC plug.

PAGE 3

1000 Watt

AC/DC PFC front-end for distributed power architectures

1000W AC/DC

|

DISTRIBUTED POWER FRONT END AC/DC POWER SUPPLIES
