December 1990
4
Philips Semiconductors
Product specification
Dual 4-bit binary ripple counter
74HC/HCT393

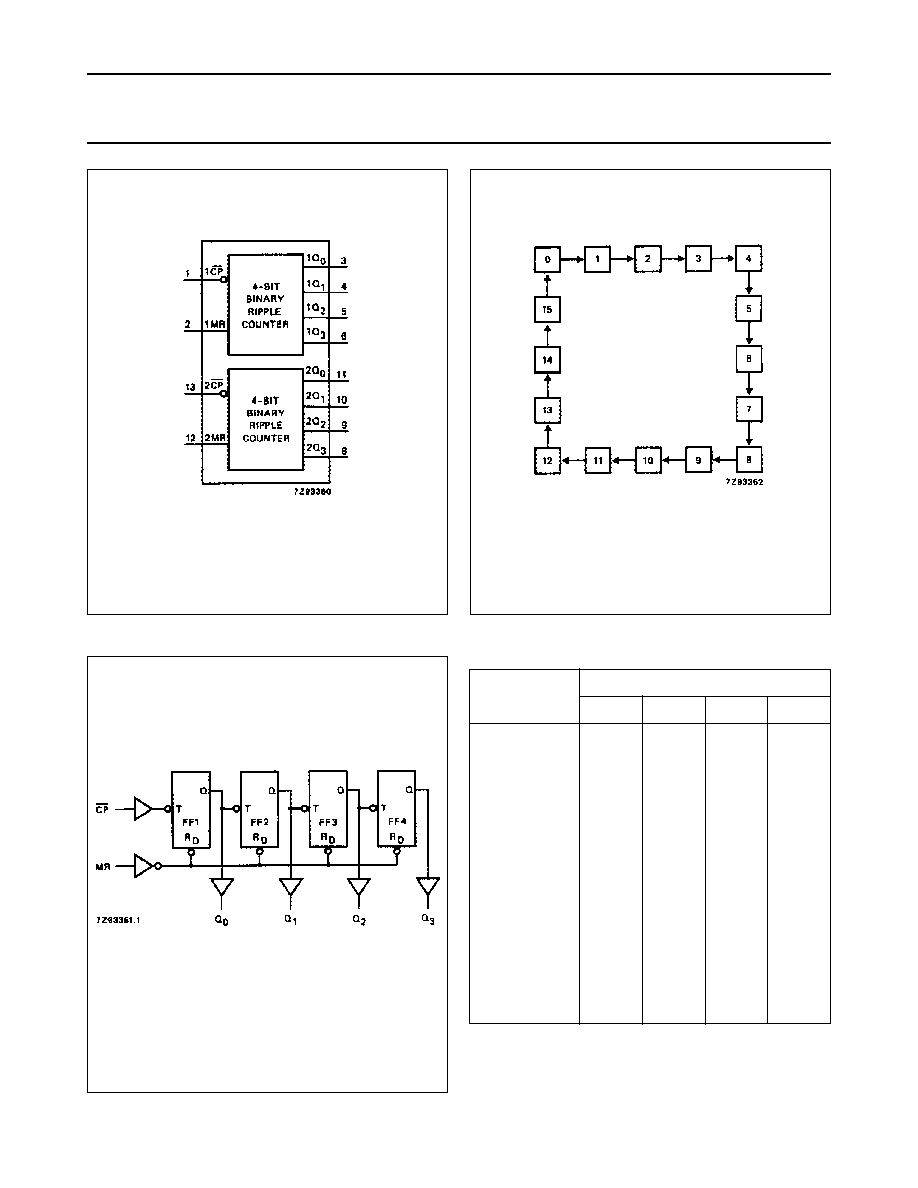

Fig.4 Functional diagram.
Fig.5 State diagram.
Fig.6 Logic diagram (one counter).
COUNT SEQUENCE FOR 1 COUNTER
Notes
1. H = HIGH voltage level
L = LOW voltage level
COUNT
OUTPUTS
Q0
Q1
Q2
Q3
0
1
2
3
L
H
L
H
L
L
H
H
L
L
L
L
L
L
L
L
4
5
6
7
L
H
L
H
L
L
H
H
H
H
H
H
L
L
L
L
8
9
10
11
L
H
L
H
L
L
H
H
L
L
L
L
H
H
H
H
12
13
14
15
L
H
L
H
L
L
H
H
H
H
H
H
H
H
H
H
