Notes

1

Peak output current lasting less than 3 seconds and non repetitive. During

peak loading output voltage may exceed total regulation limits.

2

20MHz bandwidth, peak to peak, measured using 0.1µF ceramic capacitor

in parallel with a 10µF tantalum capacitor at the point of output load.

3

Total regulation is defined as the static output regulation at 25°C, including

initial tolerance, line voltage within stated limits, load currents within stated

limits, and output voltages adjusted to their factory settings.

4

To maintain user-system safety approvals, the input power cable must be

appropriately rated and approved.

5

This feature protects output circuitry from output overvoltage caused by

internal PSU failure.

6

Three orthogonal axes random vibration, 10 minute test for each axis.

SSL40C Series

Single Output External P o wer Supply

EXTERNAL AC/DC POWER SUPPLIES

40W External AC/DC Power Supplies

2

www.artesyn.com

OUTPUT

OUTPUT CURRENTS

TOTAL

OVP

MODEL

VOLTAGE

MIN

MAX

(MAX)

NUMBER

+12V

0A

3.00A

3.60A

120mV

11.4V to 12.6V

16.8V

SSL40C-7612

+15V

0A

2.66A

3.00A

150mV

14.25V to 15.75V

21V

SSL40C-7615

+18V

0A

2.22A

2.60A

180mV

17.1V to 18.9V

25.2V

SSL40C-7618

+24V

0A

1.66A

1.90A

240mV

22.8V to 25.2V

33.6V

SSL40C-7624

+48V

0A

0.83A

1.00A

300mV

45.6V to 50.4V

64V

SSL40C-7617

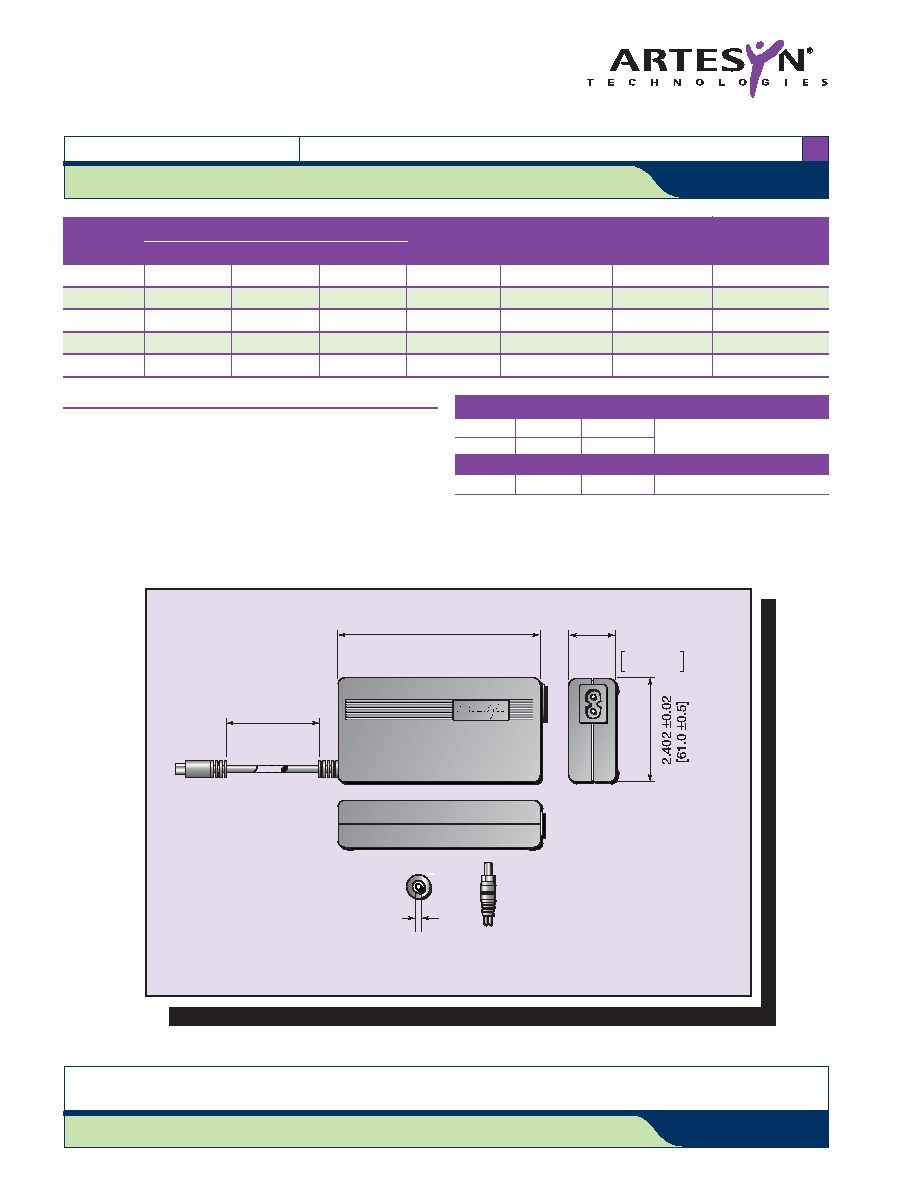

Cable Length

36.00

±0.79

[914.0

±20]

0.098

[2.50]

4.646

±0.02 [118.0 ±0.5]

All Dimensions in inches [mm]

1.083

+0.024

-0.000

27.5

+0.6

-0.0

2.5 mm Phone Jack

SINGLE OUTPUT PIN CONNECTIONS 2.5MM JACK PLUG

Inner

V

A

SWITCHCRAFT Power

Outer

Return

Jack, P/N 712A or equiv.

INPUT CONNECTOR

IEC 320

Two pins

C8 type

Rated at 2.5A, 250VAC
