High Current Power Inductor

CSBL0530 Series

This product is not authorized for use in any application related to safety.

Specification subject to change without notice. Please check web site for latest information.

Revised: 07/14/2020

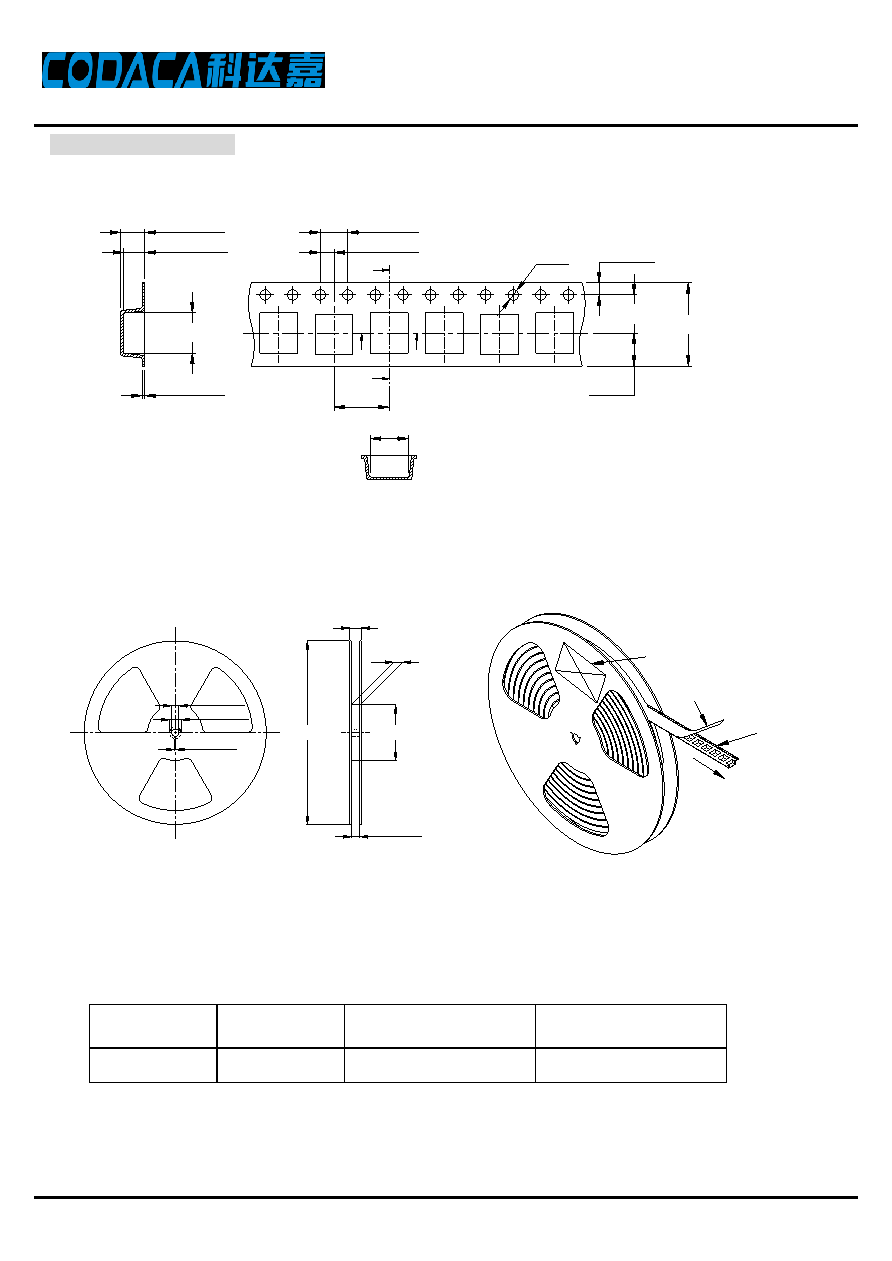

5 Packing Specification

5.1 Carrier Tape Dimensions (mm)

Φ1.5

2.0±0.1

4.0±0.1

1.75±0.1

+0.1

-0

A-A

8.0±0.1

A

B

A

12.0±0.3

5.5±0.1

（4.75）

B

0.4±0.05

B-B

5.8±0.1

3.35±0.1

3.55 Ref

5.5±0.1

※ Packing is referred to the international standard IEC 60286-3.

5.2 Reel Dimensions (mm)

100 Min.

21.0±0.8

13.0±0.5

2.0±0.5

W1

12.4

18.4Max

W2

330±2.0

11.9Min

W3

+2.0

-0

Label

Cover tape

Sprocket hole

Unreeling direction

5.3 Carton Dimensions and Packing Quantity

■ Inner Carton：340×340×95mm

■ Out Carton ：360×360×370mm

Product Series

Quantity / Reel

Inner Carton Quantity

Out Carton Quantity

CSBL0530

2000pcs

(2000×4) = 8000pcs

(8000×3) = 24000pcs
