Typical Performance Characteristics
Note: Curves shown with f
S1(MA) = 66 kHz and fS(SB) = 132 kHz.

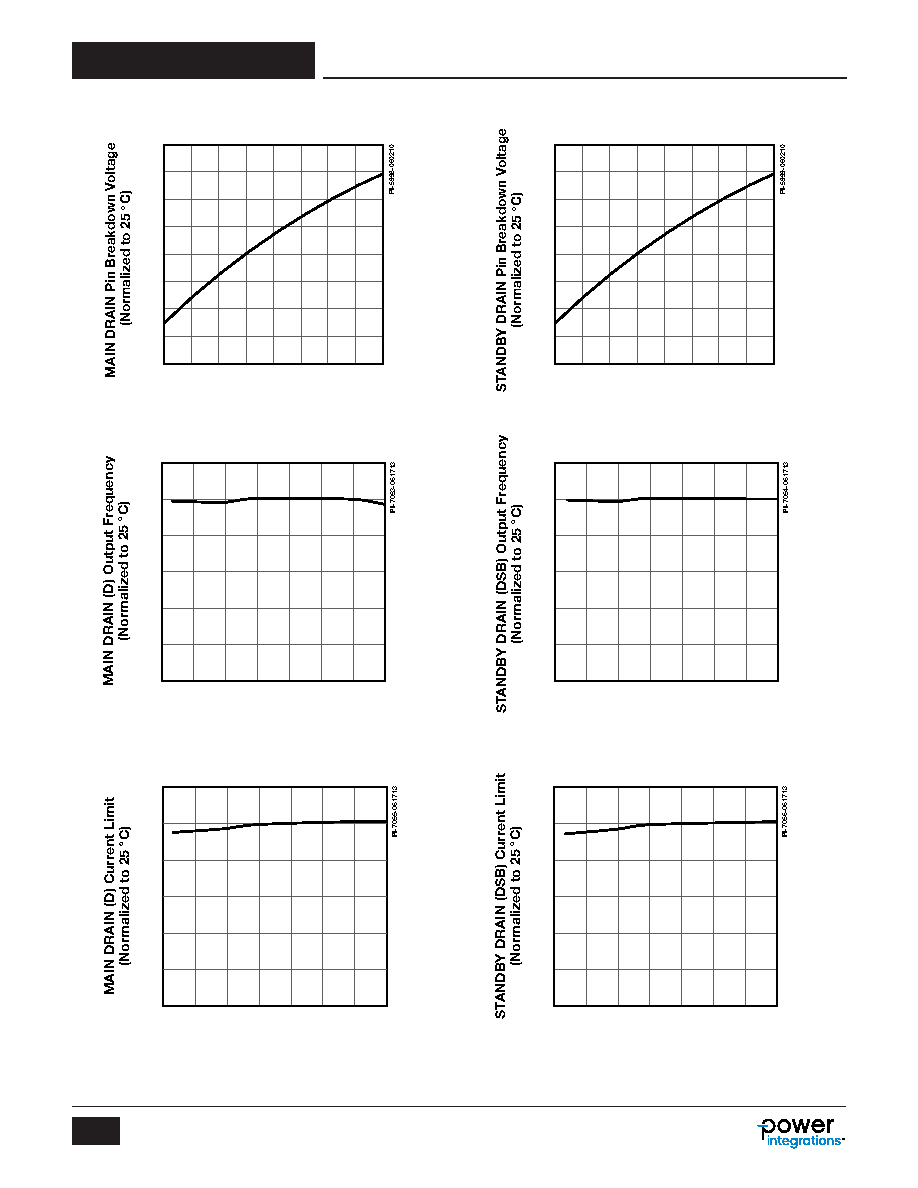

Figure 32. Main Supply. Breakdown Voltage vs. Temperature.
Figure 33. Standby Supply. Breakdown vs. Temperature.
Figure 34. Main Switching Frequency vs. Temperature.
Figure 35. Standby Switching Frequency vs. Temperature.
Figure 36. Main Drain (D) Current Limit vs. Temperature.
Figure 37. Standby Drain (DSB) Current Limit vs. Temperature.
