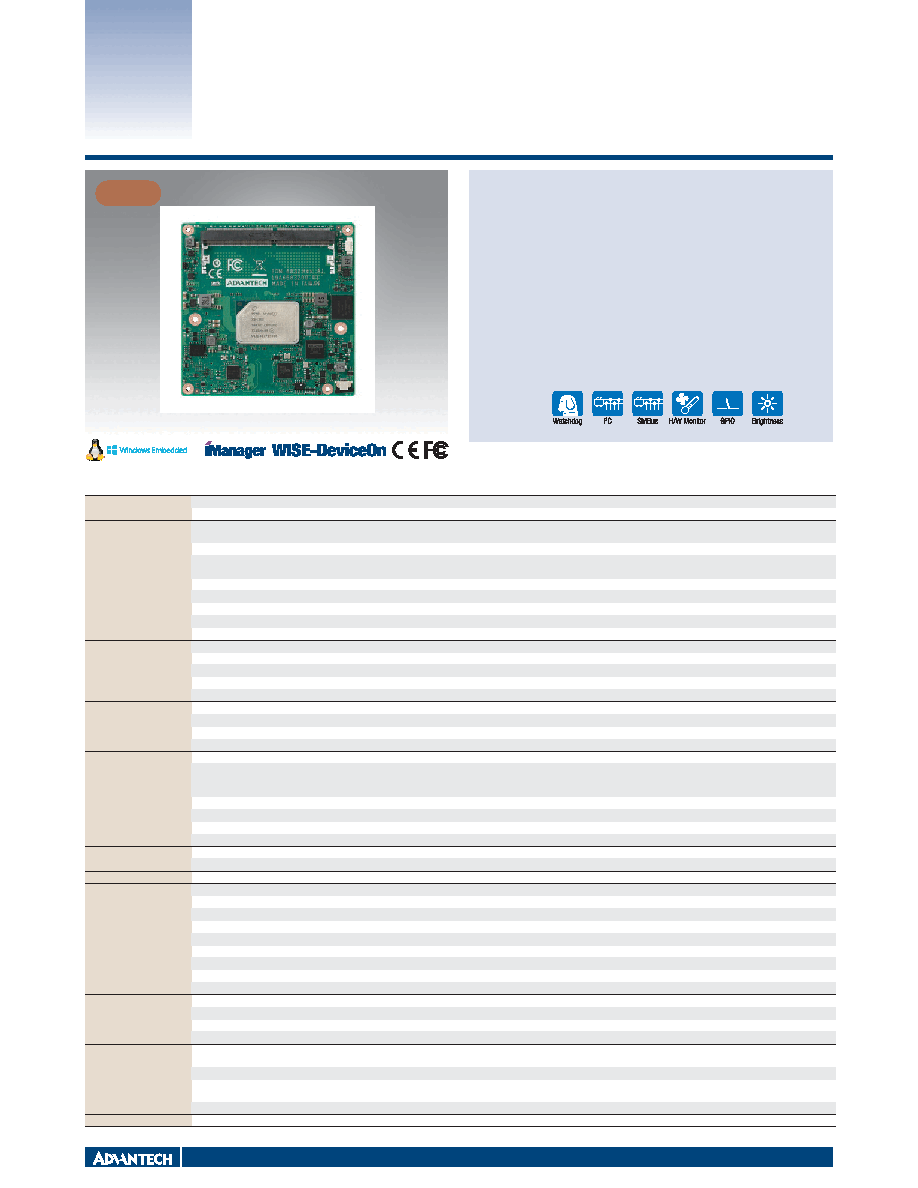

Computer On Modules

Features

Intel® Pentium®/Celeron® and Atom®

x6000 Series Processors

(Code Name: Elkhart Lake)

COM Express® Compact Type6

SOM-6832

ƒ

COM Express® R3.0 Compact Module Type 6 Pinout

ƒ

Intel® Pentium®/Celeron® and Atom® x6000 Series (Elkhart Lake) Processors

ƒ

Dual Channel up to 32GB DDR4-3200 and IBECC Supported by Specific

SKUs

ƒ

Supports up to 3 simultaneous display: LVDS/eDP, HDMI/DisplayPort

ƒ

Supports onboard eMMC Storage and 2.5GbE

ƒ

Supports iManager, WISE-DeviceOn, and Embedded Software APIs

Specifications

Form Factor

Form Factor

COM Express Compact

Pin-out Type

COM Express R3.0 Type 6 compatible

Processor System

CPU

Pentium®

N6415

Pentium®

J6426

Atom® x6425E

Atom® x6413E

Atom® x6211E

Atom®

x6425RE

Atom®

x6414RE

Atom®

x6200FE

Base Frequency

1.2 GHz

2.0 GHz

2.0 GHz

1.5 GHz

1.3 GHz

1.9 GHz

1.5 GHz

1.0 GHz

Max Single Core Turbo

Frequency

3.0 GHz

3.0 GHz

3.0 GHz

3.0 GHz

3.0 GHz

N/A

N/A

N/A

Cores

4

4

4

4

2

4

4

2

LLC

1.5 MB

1.5 MB

1.5 MB

1.5 MB

1.5 MB

1.5 MB

1.5 MB

1.5 MB

CPU TDP

6.5W

10W

12W

9W

6W

12W

9W

4.5W

IBECC

N/A

N/A

Yes

Yes

Yes

Yes

Yes

Yes

BIOS

AMI UEFI 256Mbit

Memory

Technology

DDR4

Speed

3200 MT/s

Max. Capacity

Up to 32GB

Socket

2 x 260P SODIMM (Dual Channel)

ECC Support

IBECC supported by Specific CPU SKUs

Graphics

Controller

Intel® UHD Graphics

N/A

Base. Frequency

350 MHz

400 MHz

500 MHz

500 MHz

350 MHz

400 MHz

400 MHz

N/A

Max. Frequency

800 MHz

850 MHz

750 MHz

750 MHz

750 MHz

N/A

N/A

N/A

3D/HW Acceleration

OpenGL* 4.5, DirectX* 12, OpenCL*1.2, Vulkan 1.1

Display

LCD (LVDS/eDP)

LVDS dual channel: 1920 x 1200@60Hz (option support eDP 4096 x 2304 @ 60Hz)

DDI (HDMI/DisplayPort)

2 DDI ports support configurable HDMI/DisplayPort

-HDMI 2.0b: 4096 x 2160 @ 60Hz

-DisplayPort 1.4: 4096 x 2160 @ 60Hz

Multiple Display

Triple Simultaneous Independent Display

PCI Express x1 (Gen3)

6 PCIe x1

Audio Interface

HD Audio

LPC

Yes

Serial Bus

SMBus

Yes

I2C Bus

Yes

Ethernet

Gigabit

Default 2.5G; 1G by BIOS item option

I/O

SATA3.0

2 Port (6 Gbps)

USB3.2 (Gen2)

2 Ports (10 Gbps); 2 Optional Ports by PCIe co-lay

USB2.0

8 Ports (480 Mbps)

SPI Bus

Yes. For BIOS EEPROM

GPIO

8-bit

Watchdog

65536 level, 0 ~ 65535 sec

COM Port

2 Ports (2-Wire)

TPM

TPM2.0

Smart Fan

2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board

Power

Type

ATX: Vin, VSB; AT: Vin

Supply Voltage

Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25V; RTC Battery: 2.0V ~ 3.3V

Power Consumption (Max.)

TBD

Power Consumption (Idle)

TBD

Environment

Operating Temperature

Standard: 0 ~ 60 °C (32 ~ 140 °F)

Extend: -40 ~ 85 °C (-40 ~ 185 °F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Mechanical

Dimensions

95 mm x 95 mm (3.74" x 3.74")

Software APIs:

NEW

All product specifications are subject to change without notice.

Last updated: 29-Nov-2021
