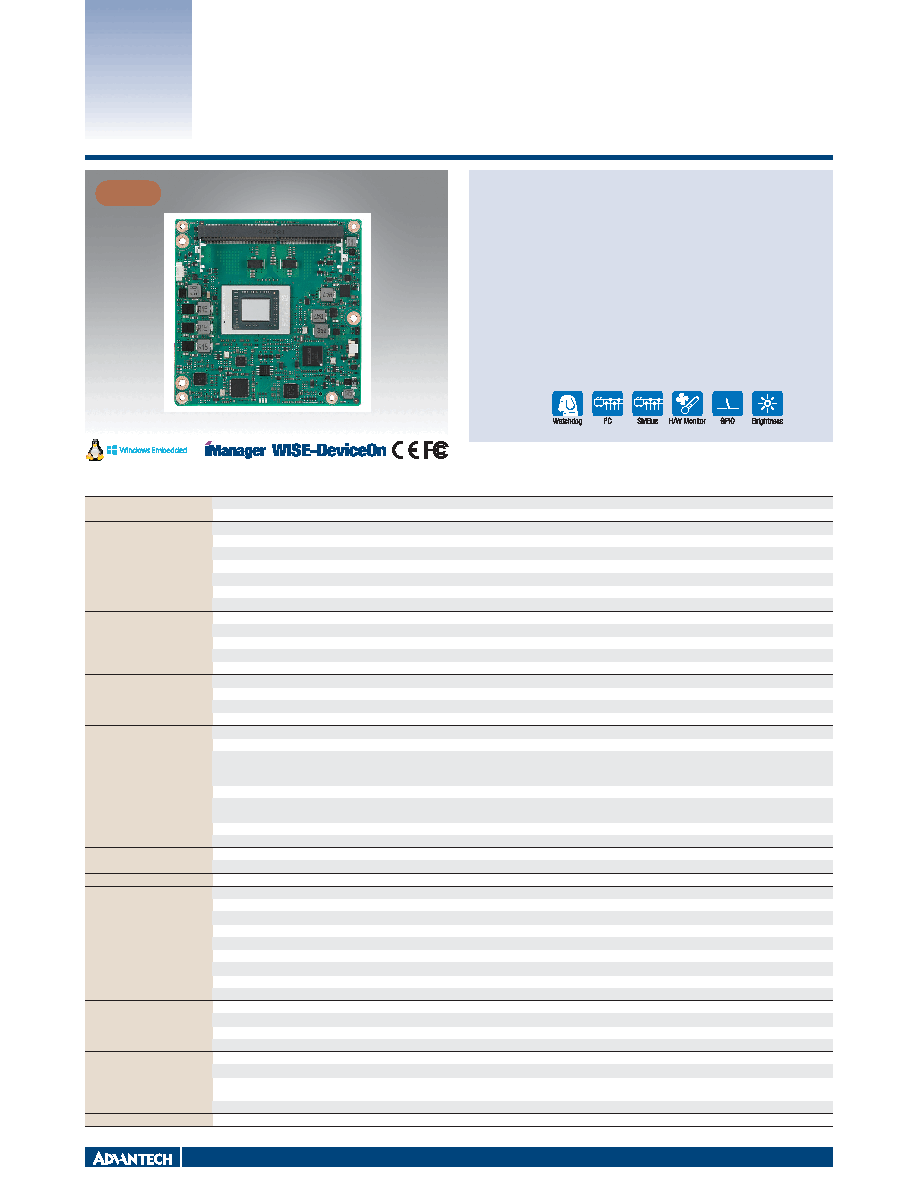

Computer On Modules

Features

AMD Embedded Ryzen V2000

COM Express® Compact Type 6

SOM-6872

ƒ

AMD Embedded Ryzen 7nm SoC – V2000 APU

ƒ

COM Express® R3.0 Compact Module Type 6 Pinout

ƒ

Dual Channel DDR4 SODIMM, max. 64GB (Both ECC & Non-ECC)

ƒ

High Speed I/Os: 2 USB 3.2 Gen2, 1 PCIe x8 Gen3, 8 PCIe x1 Gen3, and

2 SATA3.0

ƒ

Four Display (DP++, HDMI, VGA, LVDS)

ƒ

Supports iManager, Embedded Software APIs and WISE-DeviceOn

Specifications

Form Factor

Form Factor

COM Express Compact Module

Pin-out Type

COM Express R3.0 Type 6 compatible

Processor System

CPU

V2748

V2546

V2718

V2516

Base Frequency

2.9 GHz

3.0 GHz

1.7 GHz

2.1 GHz

Max Single Core Turbo Frequency

4.25 GHz

3.95 GHz

4.15 GHz

3.95 GHz

Core/Thread

8/16

6/12

8/16

6/12

LLC

8MB

8MB

8MB

8MB

CPU TDP

35W-54W

35W-54W

10W-25W

10W-25W

BIOS

AMI UEFI 256Mbit

Memory

Technology

DDR4 up to 3200 MT/s

Speed

3200 MT/s

ECC Support

Yes

Max. Capacity

Up to 64GB

Socket

2 260P SO-DIMM (Dual Channel)

Graphics

Controller

AMD Radeon Graphics Vega GPU

Max. Frequency

1.6 GHz

1.6 GHz

1.6 GHz

1.6 GHz

Graphic Memory

Shared Memory

3D/HW Acceleration

VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b)

Display

VGA

1920 x 1200 @ 60Hz

LCD

LVDS dual channel: 1920 x 1200 @ 60Hz (option support eDP 1.3 4096 x 2160 @ 60Hz)

DDI

2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA)

-HDMI 2.1: 4096 x 2160 @ 60Hz

-DisplayPort 1.4: 4096 x 2160 @ 60Hz

Multiple Display

Four Simultaneous Independent Displays

PCI Express (Gen3)

1 PCIe x8 (PEG)

8 PCIe x1

Audio Interface

HD Audio

LPC

Yes

Serial Bus

SMBus

Yes

I2C Bus

Yes

Ethernet

Gigabit

Intel I210; 10/100/1000 Mbps

I/O

SATA3.0

2 Ports (6 Gbps)

USB 3.2 Gen2

2 Ports (10 Gbps)

USB2.0

8 Ports (480 Mbps)

SPI Bus

Yes. For BIOS EEPROM

GPIO

8-bit GPIO

Watchdog

65536 level, 0 ~ 65535 sec

COM Port

2 Ports (2-Wire)

TPM

TPM2.0 (Optional)

Smart Fan

2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board

Power

Type

ATX: Vin, VSB; AT: Vin

Supply Voltage

Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V

Power Consumption (Max.)

55.1W @ 12V (V2748 with 32GB DDR4 3200*2)

Power Consumption (Idle)

4.6W @ 12V (V2748 with 32GB DDR4 3200*2)

Environment

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @ 95% relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Mechanical

Dimensions

95 x 95 mm (3.74" x 3.74")

Software APIs:

NEW

All product specifications are subject to change without notice.

Last updated: 29-Jul-2022
