RISC Computing Platforms

Features

ƒ

NXP ARM® Cortex®-A9 i.MX6 Dual/Quad 1GHz high performance processor

ƒ

On board DDR3 1066MHz 1GB/2GB memory and 8GB EMMC NAND flash

ƒ

Supports Triple Display: VGA/HDMI/LVDS

ƒ

Supports 1 x PCIe, 1 x mini-PCIe, 5 x serial ports, 6 x USB, 1 x M.2 socket,

18 x GPIO, 1 x CAN

ƒ

Low power consumption, fanless design

ƒ

Supports Linux and Android BSP

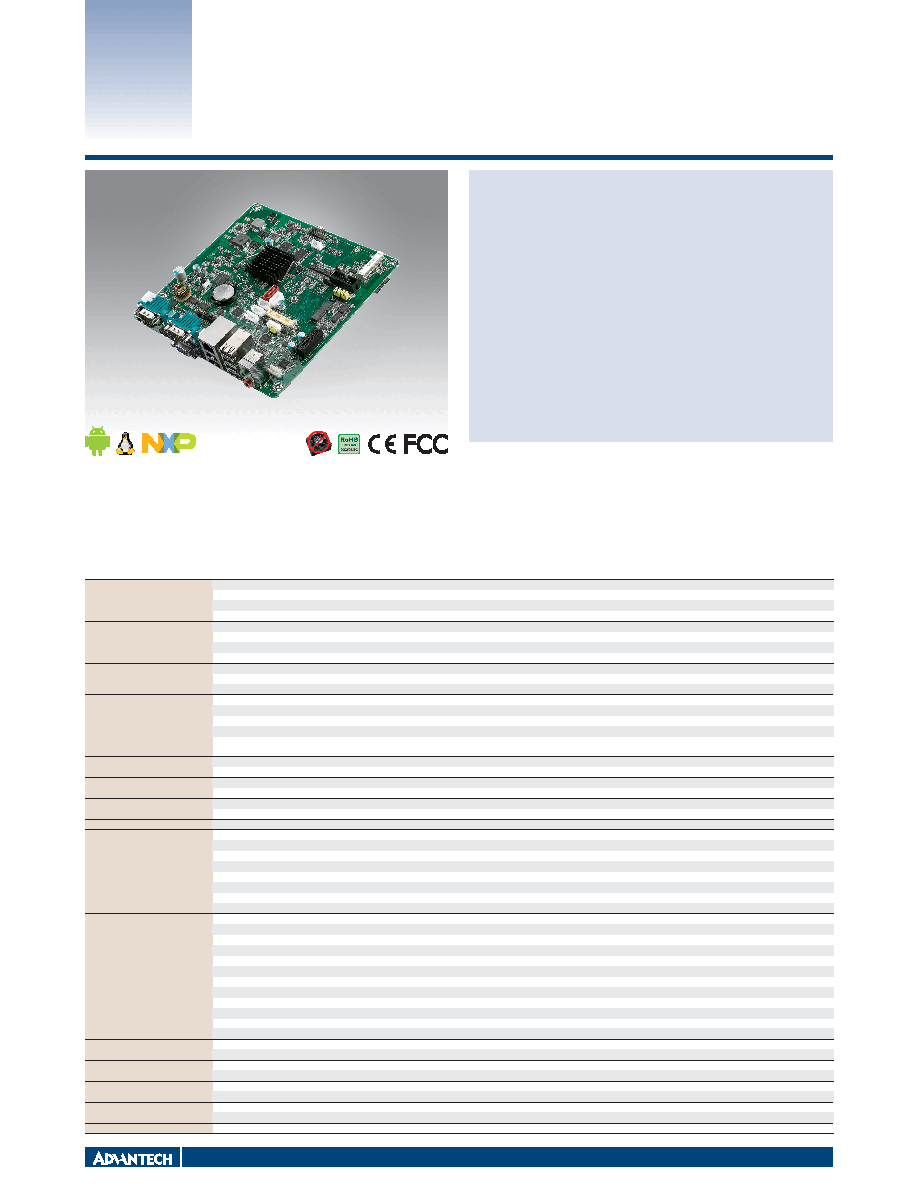

RSB-6410

NXP ARM® Cortex®-A9 i.MX6

Dual/Quad Mini-ITX Motherboard

Introduction

RSB-6410 is the world’s first RISC-based Mini-ITX motherboard computer which integrates an NXP i.MX6D/Q Cortex-A9 1.0GHz high performance processor. This embedded

motherboard provides the ideal solution for industrial applications such as machine control and self-service machine systems that require high performance graphic interfaces,

multiple I/O and networking connectivity but with low power consumption.

Specifications

Processor

CPU (40nm)

NXP i.MX 6D

NXP i.MX 6Q

Core Number

2

4

Max Speed

1.0 GHz

1.0 GHz

L2 Cache

1MB

1MB

Expansion Slot

PCI

-

Mini-PCIe

1 (USB signal only)

M.2

1 (E-Key)

PCIe

1

Memory

Technology

Single channel DDR3 1066MHz SDRAM on board

Max. Capacity

1G

2G

Flash

8GB EMMC NAND Flash for O.S & 4MB SPI NOR Flash for ADV loader

Graphics

Controller

NXP i.MX6 integrated hardware accelerators

VGA

1920 x 1080

LVDS

1 x 24bit dual channel LVDS with up to 1920x1080 resolution, 2 x 24bit single channel LVDS with up to 1366x768 resolution (option)

HDMI

1920 x 1080

Triple Display

Extended Mode: HDMI + LVDS, VGA+HDMI, VGA+LVDS, VGA+HDMI+LVDS (by application)

Clone Mode: HDMI + LVDS, VGA+HDMI, VGA+LVDS , 2 single channel LVDS

Ethernet

Chipset

NXP i.MX6 integrated RMII

Speed

1x 10/100/1000 Mbps

SATA

Max Data Transfer Rate

300 MB/s (SATA 2.0)

Channel

1

EIDE

Mode

None

Channel

None

SSD

CFast CompactFlash

-

Rear I/O

CRT

1

HDMI

1

Ethernet

1

USB

6 (USB2.0 HOST)

Audio

1 Line out, 1 Mic, 1 Amplifier (6W)

Serial

2 (1 of RS-232 w/ 4wire,1 of RS-232/422/485 w/ 4wire)

KB/MS

-

DC jack

1 (2.5 mm)

Internal Connector

LVDS & Inverter

1/1

eDP

-

USB

-

Serial

3 (2 x 4 wire RS232,1 x 2 wire RS232/debug port by jumper), only com5 supply 5V/12V

IDE

None

I2C

3

CAN

1

SATA

1 (SATA 2.0)

SATA PWR Connector

1

SD

1

Parallel

None

GPIO

18

Watchdog Timer

Output

System reset

Interval

time out : 0.1~6553.5s, power on/off 4s

Power

Power Type

Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Supports AT/ATX mode

Typical Power Consumption

8W (system burning)

Operating System

Android

Android4.4.2@ Kernel V3.0.35/Android6.0@kernel V4.1.15

Linux

Yocto1.7, Kernel V3.14.28/Yocto2.1@Kernel V4.1.15

Environment

Operating

Non-Operating

Temperature

0 ~ 60 °C (32 ~ 140 °F)

-40 ~ 85 °C (-40 ~ 185 °F)

Physical Characteristics

Dimensions

170 mm x 170 mm (6.69" x 6.69")

All product specifications are subject to change without notice.

Last updated: 7-Jul-2021
