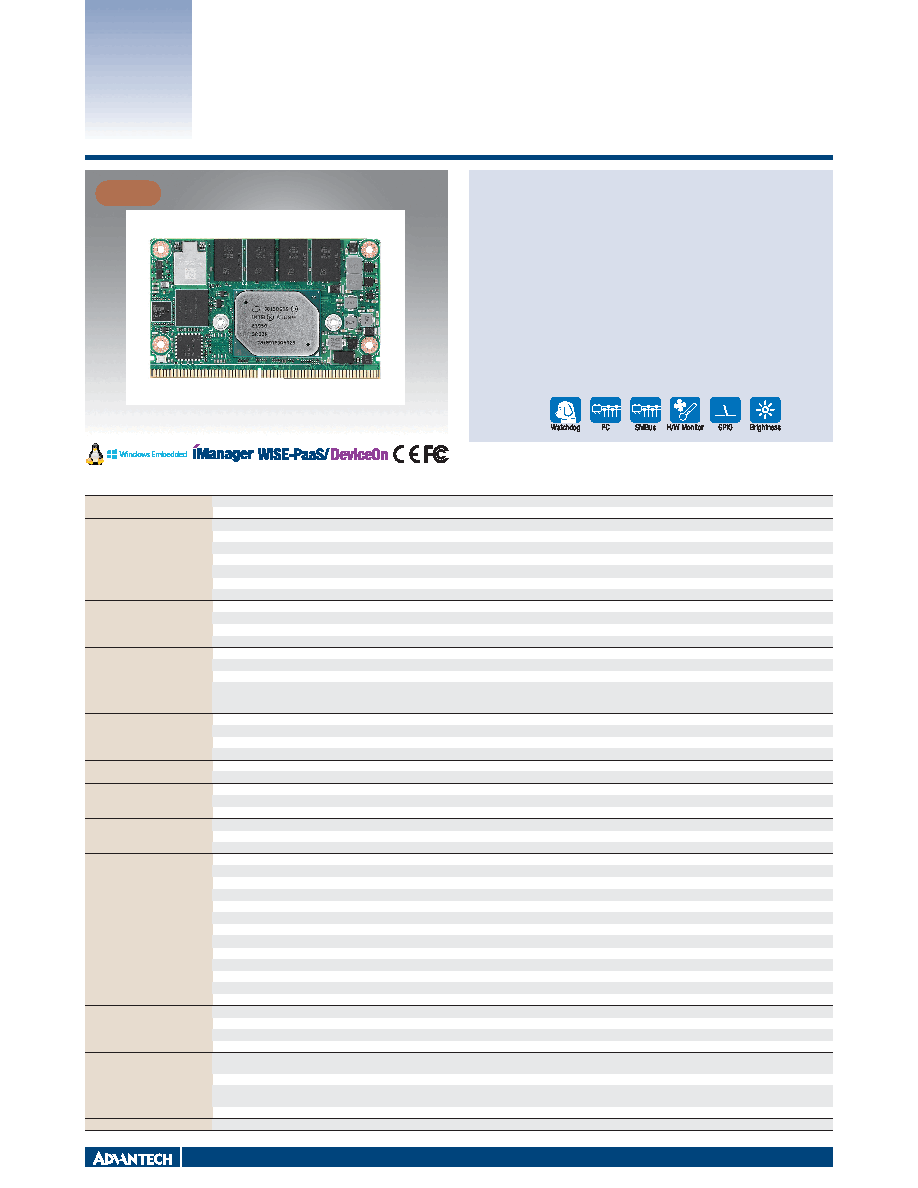

Computer On Modules

Features

Intel® Atom™ E3900 / Pentium® /

Celeron® N Series SMARC Module

SOM-2569

ƒ

SMARC2.0 & SMARC2.1 Compliance

ƒ

Intel® Atom™ E3900 / Pentium® / Celeron® N Series Processors

ƒ

Integrated dual GbE. wireless module on board design

ƒ

Dual channel LPDDR4 2/4/8 GB memory down & onboard eMMC

ƒ

Triple display (DP++, HDMI, LVDS)

ƒ

Supports iManager, WISE-PaaS/DeviceOn and embedded software APIs

Specifications

Form Factor

Form Factor

SMARC2.0 & SMARC2.1 Compliance

PCB Size

82 mm x 50 mm

Processor System

CPU

Atom X7-E3950

Atom X5-E3940

Atom X5-E3930

Pentium N4200

Celeron N3350

Base Frequency

1.6GHz

1.6GHz

1.3GHz

1.1GHz

1.1GHz

Turbo Boost Frequency

2GHz

1.8GHz

1.8GHz

2.5GHz

2.4GHz

Core/Thread

4/4

4/4

2/2

4/4

2/2

LLC

2 MB

2 MB

2 MB

2 MB

2 MB

CPU TDP

12 W

9.5 W

6.5 W

6 W

6 W

BIOS

AMI UEFI BIOS @ 64 Mb

Memory

Technology

LPDDR4 2400MT/s

ECC Support

N/A

Max. Capacity

8GB

Channel / Socket

Dual Channel / On Board Memory

Graphics

Controller

Intel® HD Graphics 505

Intel® HD Graphics 500

Intel® HD Graphics 500

Intel® HD Graphics 505

Intel® HD Graphics 500

Max. Frequency

650MHz

600MHz

550MHz

750MHz

650MHz

Graphic Memory

Intel DVMT5.0

3D/HW Acceleration

DX (9.3, 10, 11.3, 12), OpenGL 4.3, OGL ES 3.0, OpenCL 2.0

HEVC (H.265) @ L5, H.264 @ 5.2, MVC, MPEG2, VP8, VP9, VC-1, WMV9,JPEG/MJPEG HW Decode,

HEVC (H.265) @ L4, H.264 @ 5.2, MVC, VP8, VP9, JPEG/MJPEG HW Encode

Display

LCD (LVDS/eDP)

LVDS: Dual-channel 18/24-bit, up to 1920 x 1080 (option support eDP 4096 x 2304@60Hz, 24bpp)

DP++

1 Port (up to 4096 x 2160 @ 60Hz)

HDMI

1 Port (up to 3840 x 2160 @ 30Hz, option support DP++ up to 4096 x 2160 @ 60Hz )

Multiple Display

Triple displays with each display combinations

Expansion

PCI Express x1 (Gen2)

Up to 4 PCIe x1

Audio Interface

1 Intel HD Audio Interface / Up to 2 I2S

Serial Bus

SMBus

Yes

I2C Bus

Yes

CAN Bus

Yes (optional)

Ethernet

Controller

Intel I210

Speed

10/100/1000 Mbps

Connector (RJ45)

Up to 2 Ports

I/O

SATA3.0

1 Port (6Gbps)

USB3.0

2 Ports

USB2.0

6 Ports (480Mbps, include 1 client port)

GPIO

12 GPIOs

Watchdog

65536 level, 0~65535 sec

COM Port

4 Ports (2 Ports 4-wire / 2 Ports 2-wire)

Onboard Storage

Up to 64GB eMMC

TPM

TPM2.0 (Infineon SLB9665)

Smart Fan

N/A

SPI Bus

Yes

SDIO (SD Card)

Yes

Wifi / BT Module

1 Wifi / BT Module on Board (Optional)

CSI

2 Ports (1 Port 2-lane / 1 Port 4-lane)

Power

Type

AT/ATX : Vin

Supply Voltage

Vin: 4.75-5.25V, RTC Battery: 2.0V ~ 3.3V

Power Consumption (Max.)

14.11 W

Power Consumption (Idle)

3.45 W

Environment

Operating Temperature

Standard: 0 ~ 60 °C (32 ~ 140 °F)

Extended: -40 ~ 85 °C (-40 ~ 185 °F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Mechanical

Dimensions

82 mm x 50 mm

Software APIs:

NEW

All product specifications are subject to change without notice.

Last updated: 13-Oct-2021
