MI/O Extension SBCs, Modules and Chassis

Features

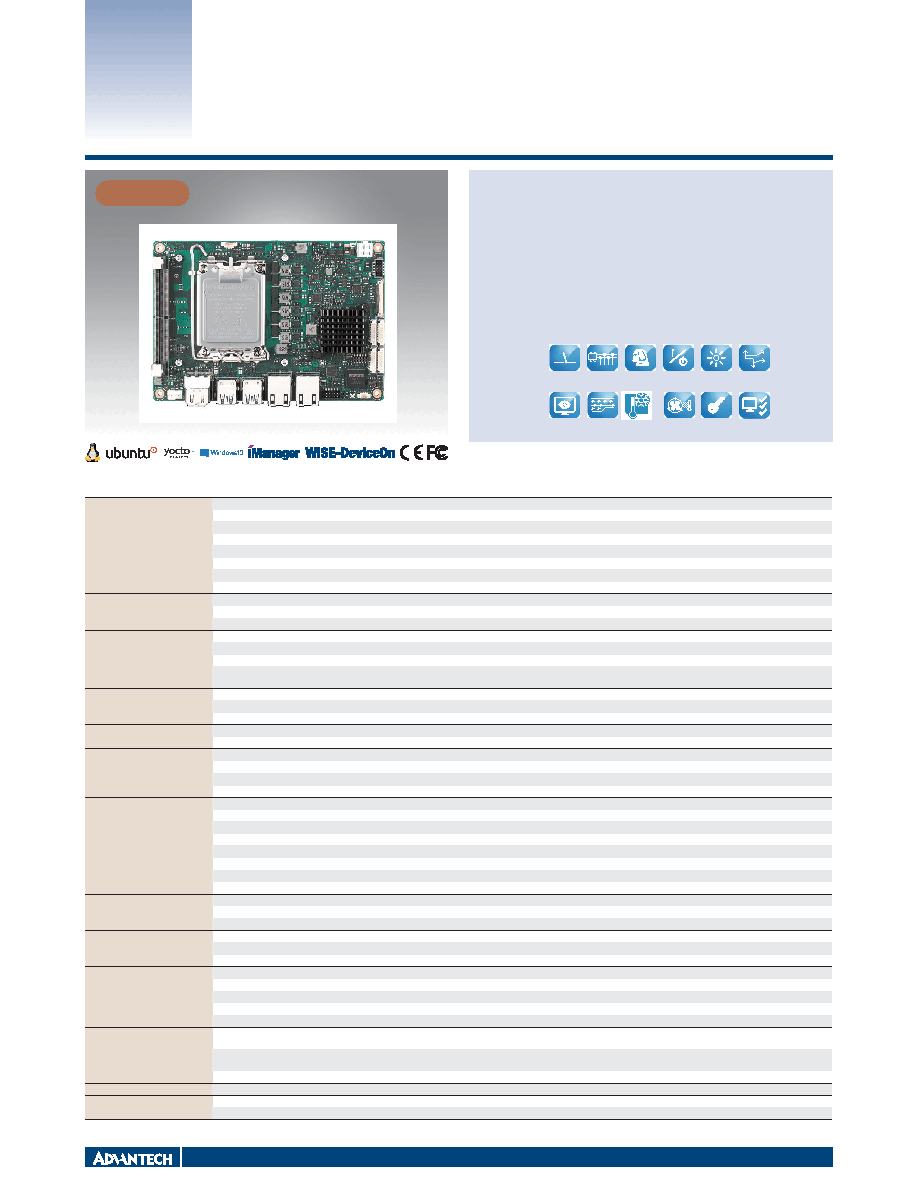

MIO-4370

12th Gen. Intel® Core™ Processors

S-series (LGA1700) on 4" EPIC SBC

ƒ

12th Gen. Intel® Core™ Processor up to 16 Cores, TDP 35W

ƒ

High scalability with socket type CPU (LGA1700) & Support Std. CPU cooler

ƒ

DDR5 4800 up to 32GB + 3 simultaneous display: Dual HDMI + eDP

ƒ

Dual High Speed 2.5G Ethernet with TSN, 2x COM, CANbus, TPM

ƒ

3 Expansions: Dual M.2 M-Key (support NVMe), M.2 E-Key

ƒ

Supports Windows 10 LTSC & Ubuntu 20.04 LTS, embedded software APIs,

WISE-DeviceOn

Specifications

Platform

Processor

i9-12900TE

i7-12700TE

i5-12500TE

i3-12100TE

Max. Frequency

4.8 GHz

4.7 GHz

4.3 GHz

4.0 GHz

Base Frequency

1.1 GHz

1.4 GHz

1.9 GHz

2.1 GHz

Core/Thread

16C (8+8) / 24T

12C (8+4) / 20T

6C (6+0) / 12T

4C (4+0) / 8T

LLC

30MB

25MB

18MB

12MB

CPU TDP

35W

35W

35W

35W

Chipset

R680E

BIOS

AMI UEFI 256Mbit

Memory

Technology

DDR5-4800

Max. Capacity

Up to 32GB

Channel/Socket

Single Channel / 1 Socket

Graphics

Controller

Intel® UHD Graphics 770

Intel® UHD Graphics 770

Intel® UHD Graphics 770

Intel® UHD Graphics 730

Max. Frequency

1.4 GHz

1.3 GHz

1.25 GHz

1.4 GHz

Execution Unit

32

32

32

24

3D/HW Acceleration

DX12, OGL4.5, OCL2.1, HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1

Display I/F

LCD

1 x eDP 1.4b, up to 5120 x 3200 @60Hz, 24bpp

HDMI/DP

2 x HDMI 1.2, up to 1920x1200p @ 60Hz, 24bpp

Multiple Display

3 simultaneous displays via eDP + HDMI + HDMI

Ethernet

Controller

LAN1/LAN2: Intel I225

Speed

LAN1/LAN2: 2.5GbE

External I/O

Ethernet

2 x RJ-45

HDMI

2

USB

4 x USB 3.2 Gen 1x1 (5Gbps)

LED

Power status, SATA R/W

Internal I/O

USB

2 x USB 2.0

COM Port

2 x RS-232/422/485, max. 1Mbps

CANBus

1 x CAN2.0, max. 1Mbps

Serial Bus

1 x I2C (BOM Default, optional to 1 x SMBus*)

Audio

Realtek ALC888s, Line-in/Line-out/MIC

GPIO

8-bit general purpose input output I/O

Fan

12V, 2A (4-wire)

Front Panel Control

Power-on, Reset, Buzzer, SATA LED, CaseOpen

Board Feature

Watchdog Timer

65536 level, 0~65535 sec

TPM

Intel® Platform Trust Technology (fTPM as default. BOM optional to discrete TPM*)

iManager 3.0

SW API for Hardware Monitor, Smart Fan Control, Brightness Control, I2C, GPIO, WDT

Expansion

M.2 E-Key

1 x E-Key 2230 (PCIex1, USB2.0)

M.2 B-Key

0 (Option: Change 1 x M-Key to 1 x B-Key 3042 (PCIex1, USB2.0) w/ support bracket and Nano SIM)

M.2 M-Key

2 x M-Key 2280 (PCIe Gen.4 x4)

Power

Supply Voltage

Vin: DC 12V ± 10%; RTC Battery: Lithium 3V/210mAH

Connector

ATX 2x2 pin 180D (Option to ATX 2x2 pin 90D)

Power Management

AT, ATX

Max. Consumption

TBU

TBU

TBU

TBU

Idle Consumption

TBU

TBU

TBU

TBU

Environment

Temperature

Operating: Standard: 0 ~ 60° C (32 ~ 140° F)

Storage: -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40° C @ 95% relative humidity, non-condensing

Storage: 60° C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Certification

EMC

CE, FCC Class B

Mechanical

Dimensions

165 x 114 mm (6.5" x 4.5")

Net Weight

320g (w/o CPU & Cooler)

*Note: Support by request

Preliminary

Software APIs:

Utilities:

GPIO

SMBus/I2C Watch Dog

Timer

Backlight

On/Off

Brightness

CAN bus

Hardware

Monitor

System

Thro�ling

Thermal

Protec�on

Smart Fan

Data

Security

System Info

All product specifications are subject to change without notice.

Last updated: 5-Sep-2022
