Industrial Motherboards & Systems

Features

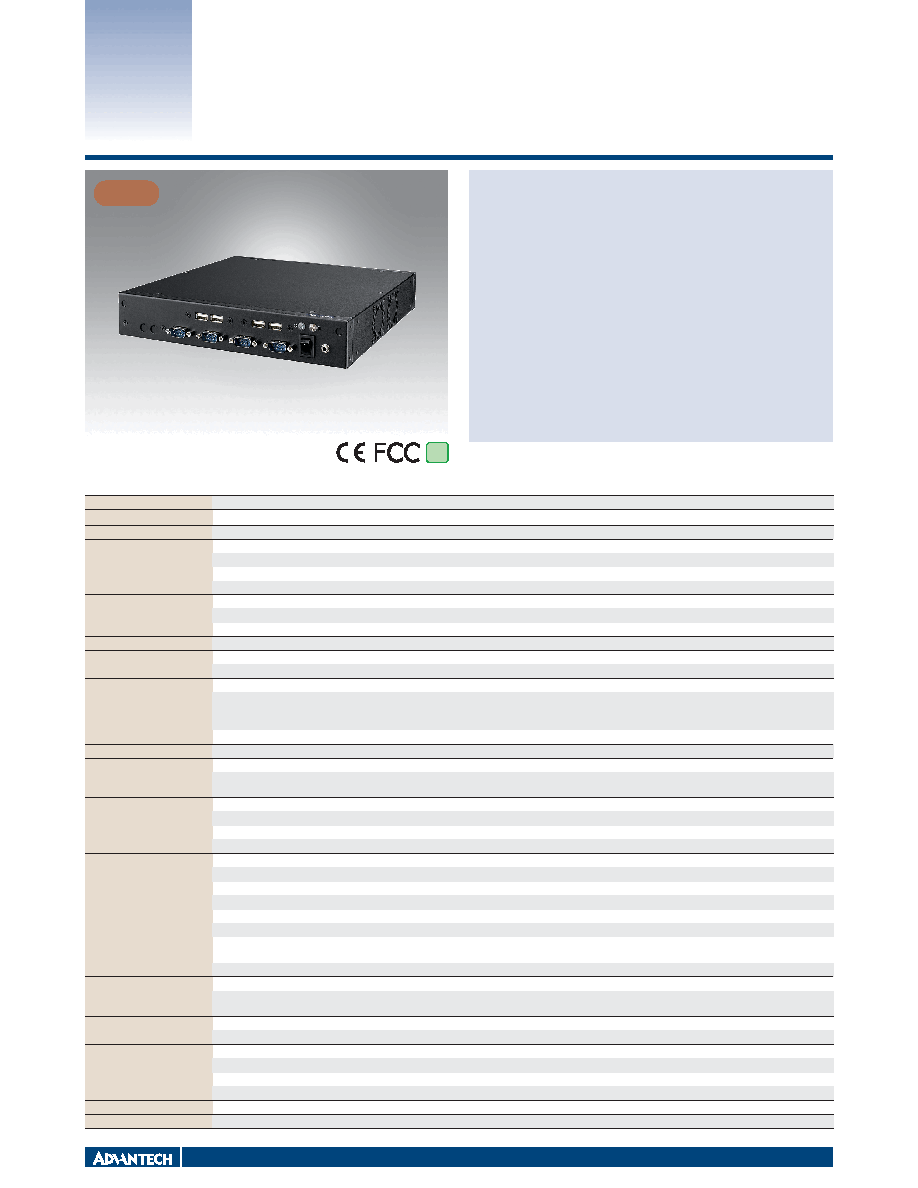

EPC-T2286

Series System THINbarebonewith8thGen.Intel®

Desktop Core i Processor

ƒ Thin design with 44.2mm in height

ƒ Thin barebone with multi-IO ports is suitable for variety of application

environments with DC-in design

ƒ Easy/ quick installation for additional peripherals

ƒ One 2.5" shock-resistant drive bay

ƒ Support Wall/VESA/Rack mounting Kit

ƒ Lock type DC power jack

NEW

Specifications

Model Name

EPC-T2000 series

Order Parts Number

EPC-T22865A-00Y0E

EPC-T22867A-00Y1E

EPC-T22863A-00Y0E

Barebone system

Description

Fan-base barebone, w/ CPU; w/o HDD, SSD, Memory, Power Adapter

Processor System

Compatible Motherboard

AIMB-286F-00A1E

Thermal solution

2x chassis fan (4cm/23.8CFM each)

CPU

Intel® Core™ i5-8500T (35W)

Intel® Core™ i7-8700 (65W)

Intel® Core™ i3-8100T (35W)

BIOS

AMI EFI 128 Mbit, SPI

Memory

Socket

2 x 260 PIN DDR4 SO-DIMM (Non-ECC)

Technology

Dual Channel DDR4 2133 MHz SDRAM

Max. Capacity

32GB (up to 16GB per SO-DIMM)

Graphics

Chipset integrated

Intel® HD Graphics, Supports OpenGL 5.x, DirectX12, OpenCL 2.X

Storage

2.5" HDD bay

1 (support 2.5" HDD/SSD, max 9.5 mm height)

mSATA Slot

0

Ethernet

Interface

10/100/1000 Mbps

Controller

LAN1: Realtek 8111G

LAN2: Realtek 8111G

LAN3: Intel i211AT

Connector

3 (RJ-45)

Audio

Chipset

Realtek ALC888S, High Definition Audio(HD)

Internal expansion Slot

Mini-PCIe

0

M.2

1 x B key for SSD and 3G/4G (USB 3.0 colay with USB04), Type: 2242, 3042mm;

1 x E key for wireless, Type: 2230mm

Front Panel

USB

4 (USB2.0)

COM

4 (3x RS-232, 1 x RS-232/422/485 by Bom optional, default RS-232)

Audio Jack

0 (optional Line-Out, Mic-In)

Antenna (optional)

up to 2

Rear Panel

DP++

0

DP/HDMI

1 / 1 (HDMI 1.4 + DP1.2)

Lan

3 (RJ-45)

USB

4 (USB 3.0, USB04 colay with M.2 B key for USB 3.0)

Audio Jack

2 (Line-Out, Mic-in)

Power Input

1 (DC Jack)

COM

2 (1x RS-232, supports 5V/12V by jumper selection;

1 x RS-232/422/485 by Bom optional, default RS-232)

Antenna (optional)

up to 2

Miscellaneous

LED Indicators

2 (Power LED, HDD LED)

Control

1 (Power Switch);

1 (Remote Power Switch)

Power Requirements

Voltage Power

12V DC-in

Consumption

TBD

Environment

Operating Temperature

-0 ~ 50 °C, with 65W CPU and SSD/HDD (HDD: 0~ 60 °C)

Non-operating Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Humidity

10 ~ 85% @ 40 °C, non-condensing

Vibration (5 ~5 00Hz)

1 Grms (HDD x 1); 3 Grms (SSD x 1)

Dimensions (W x H x D)

250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85")

Weight

4.0 kg

RoHS

COMPLIANT

2002/95/EC

ƒ Note: CE (No RED certification)

All product specifications are subject to change without notice.

Last updated: 22-Dec-2020
