STA540SA
General structure
Doc ID 16066 Rev 2
21/30
8.7.2
Thermal shutdown
With the thermal shutdown feature, the output (pin 12) signals the proximity of the junction
temperature to the shutdown threshold. Typically, current sinking at pin 12 starts at
approximately 10 °C before the shutdown threshold is reached.

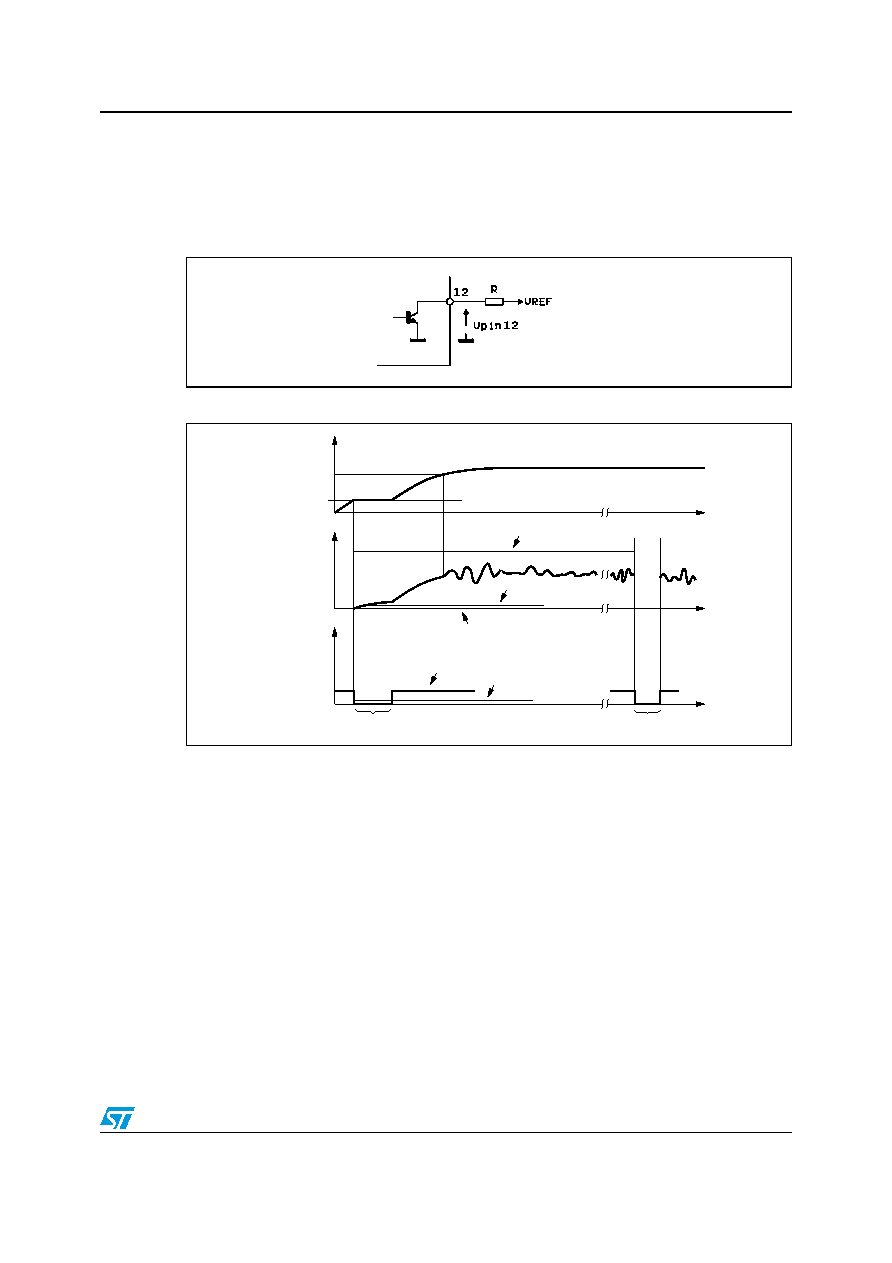

Figure 31.
Output fault waveforms
Figure 32.
Fault waveforms
SOFT SHORT
OUT TO Vs SHORT
FAULT DETECTION
CORRECT TURN-ON
OUT TO GND SHORT
t
t
t
ST-BY PIN
VOLTAGE
2V
OUTPUT
WAVEFORM
Vpin 12
CHECK AT TURN-ON
(TEST PHASE)
SHORT TO GND
OR TO Vs
D05AU1603
Obsolete
Product(s)
- Obsolete
Product(s)
