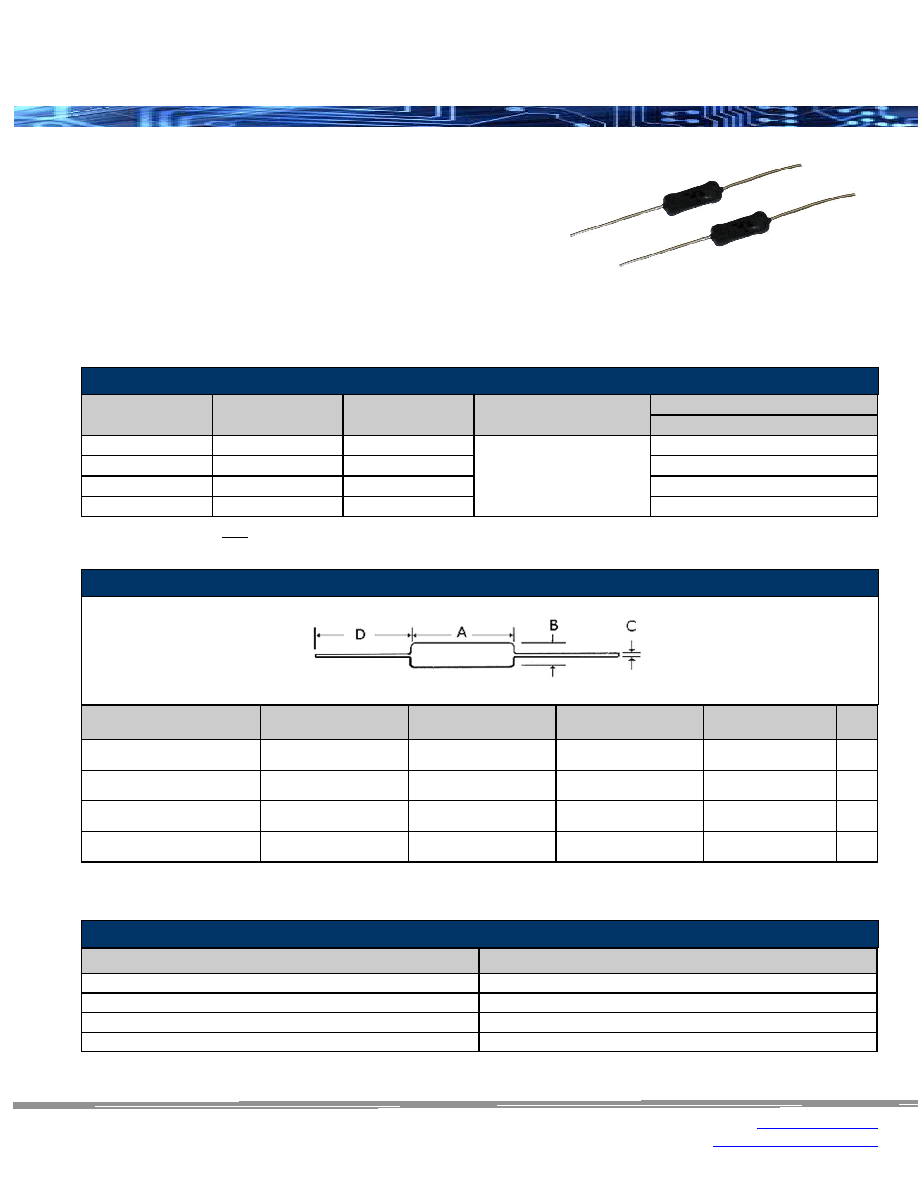

1 / 5 page  Rev Date: 5/24/2021 1 www.seielect.com This specification may be changed at any time without prior notice. marketing@seielect.com Please confirm technical specifications before you order and/or use. WWP Series Pulse Withstanding Wirewound Resistor Stackpole Electronics, Inc. Resistive Product Solutions Features: • Special materials and processing to maximize surge handling • High performance for low cost • High power to size ratio • Complete welded terminations • Tinned copper leads • High temperature silicone coating • NWWP non-inductive pulse withstanding wirewound available • Meets UL94V-0 • 100% RoHS compliant and lead free without exemption • Halogen free • REACH compliant Electrical Specifications Mechanical Specifications Performance Characteristics Test Test Specification Moisture Resistance 1% max Load Life 1% Temperature Cycling 0.5% Short Time Overload 1% Operating temperature range is -55°C to +275°C Dielectric Ohmic Range (Ω) and Tolerance Strength (V) 5% & 10% WWP3 1000 3 0.1 - 10K WWP5 1000 5 0.1 - 10K WWP7 1000 7 0.1 - 10K WWP10 1000 10 0.1 - 10K Power Rating (W) @ 70°C Note: Contact Stackpole for non-inductive designs (NWWP) TCR (ppm/ºC) Type/Code Max Voltage Rating = < 1 Ω = ±90 ppm/ºC 1 Ω to 10 Ω = ±50 ppmºC > 10 Ω = ±20 ppm/ºC √P*R 0.560 ± 0.062 0.187 ± 0.031 0.032 ± 0.002 1.500 Typical inches 14.22 ± 1.57 4.75 ± 0.79 0.81 ± 0.05 38.10 Typical mm 0.875 ± 0.062 0.312 ± 0.031 0.036 ± 0.002 1.500 Typical inches 22.23 ± 1.57 7.92 ± 0.79 0.91 ± 0.05 38.10 Typical mm 1.025 ± 0.062 0.312 ± 0.031 0.036 ± 0.002 1.500 Typical inches 26.04 ± 1.57 7.92 ± 0.79 0.91 ± 0.05 38.10 Typical mm 1.780 ± 0.062 0.375 ± 0.031 0.040 ± 0.002 1.500 Typical inches 45.21 ± 1.57 9.53 ± 0.79 1.02 ± 0.05 38.10 Typical mm WWP10 D (Bulk) Units A B C Type/Code WWP3 WWP5 WWP7 |
