CC1070
SWRS043
Page 28 of 58
868 MHz
915 MHz

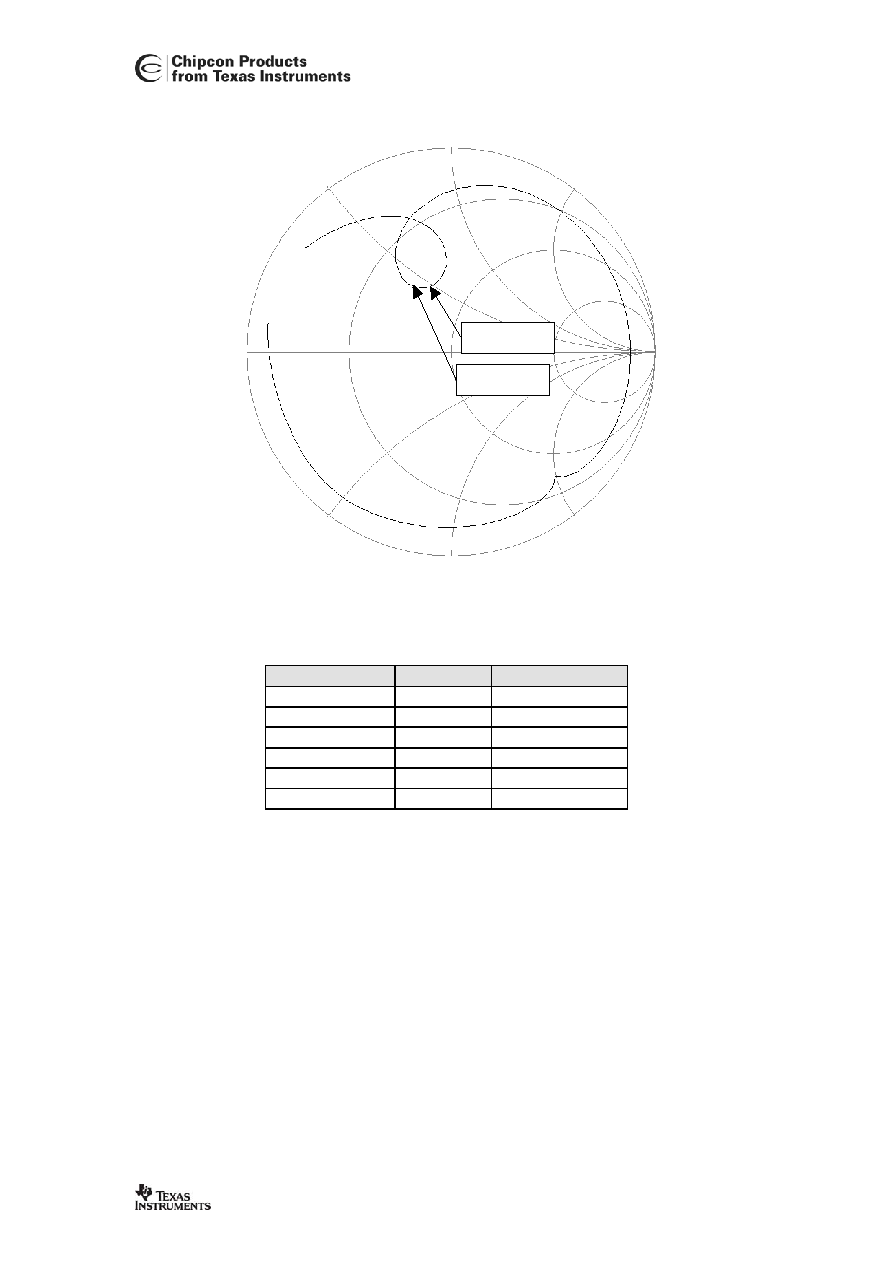

Figure 16. Typical optimum PA load impedance, 868/915 MHz. The frequency is swept
from 300 MHz to 2800 MHz. Values are listed in Table 17
Frequency (MHz)
Real (Ohms)
Imaginary (Ohms)
868
34
25
915
28
21
1736
84
-232
1830
31
-130
2604
3.3
-4.7
2745
2.6
2.3
Table 17. Impedances at the first 3 harmonics (868/915 MHz matching network)
