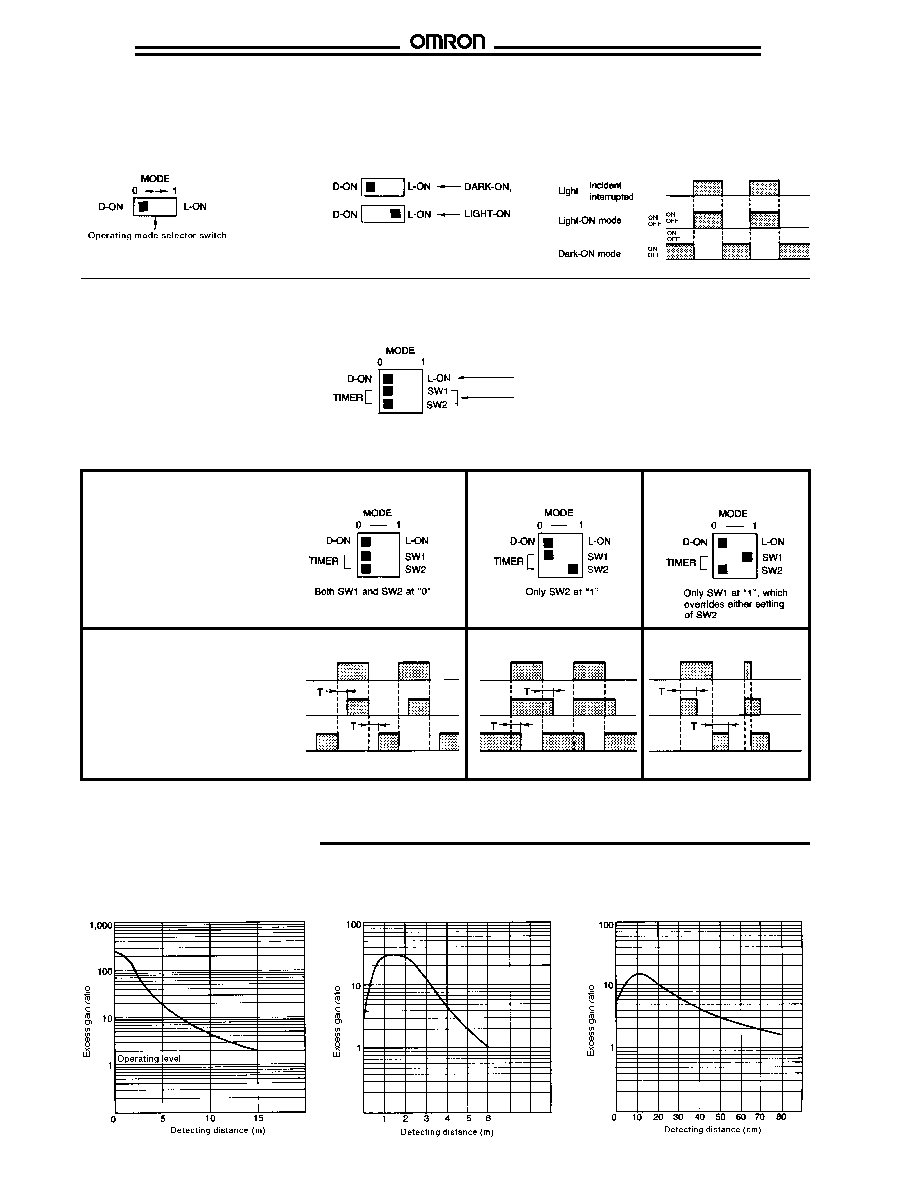

 4 / 8 page
background image
E3JM
E3JM
s TIMING CHARTS
Sensors without Timer
Switch configuration
Switch setting
Sensor with Timer
The timing function cannot be disabled.
Allow a minimum 0.1 sec. delay in
response time if set for ON-delay.
Operating mode selector switch;
Left for Dark-ON, right for Light-
ON
Timer mode selector switch
Timer chart and switch setting
Switch configuration
Engineering Data
s EXCESS GAIN
Through-beam type
E3JM-10❑❑4❑-US
Timer mode
setting
Light
Incident
Interrupted
Light-ON
Output
ON
operation mode
(NO circuit) OFF
Dark-ON
Output
ON
operation mode
(NO circuit) OFF
One-shot
delay
ON-delay
OFF-delay
ON-delay
OFF-delay
One-shot
delay
Retroreflective type
E3JM-R4❑4❑-US
Diffuse reflective type
E3JM-DS70❑4❑-US
4
Timing chart
