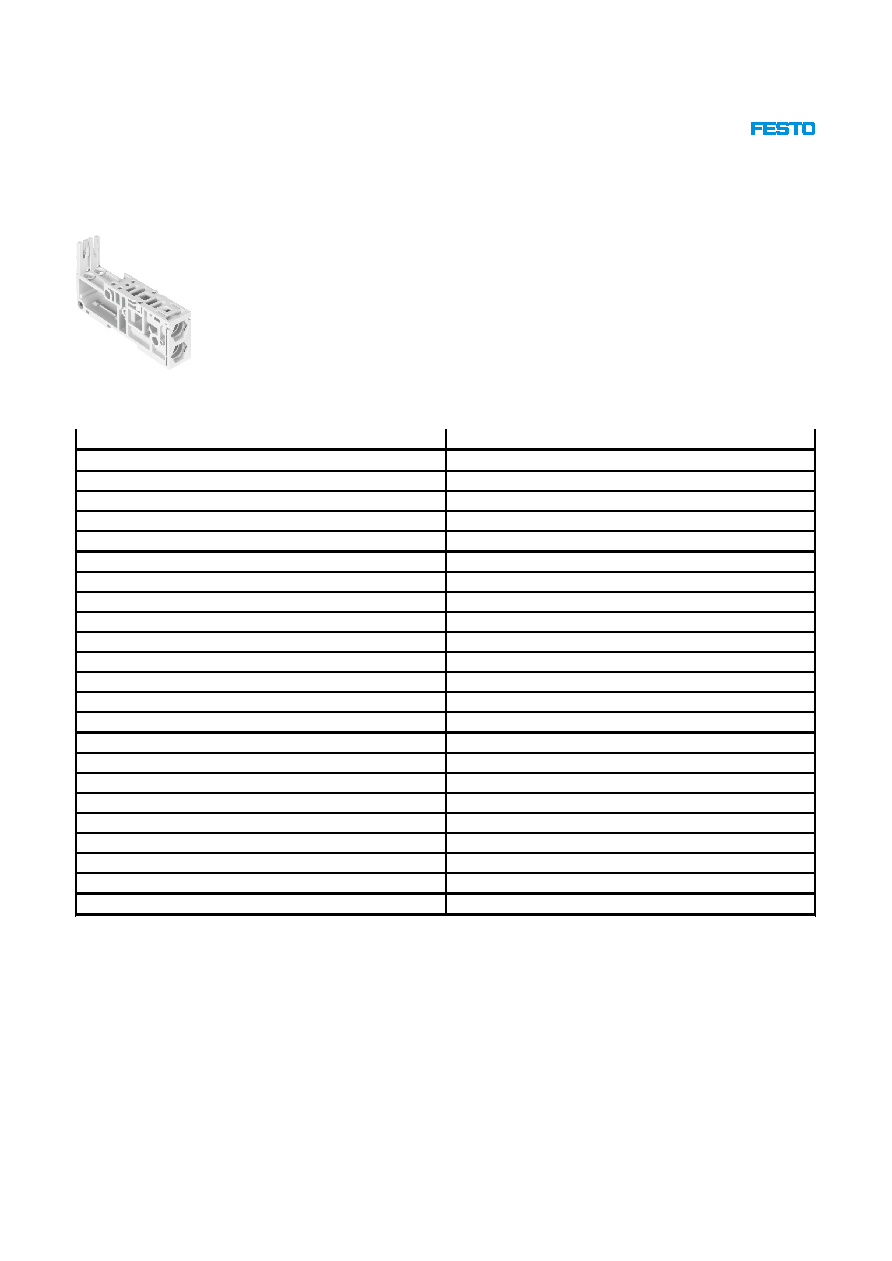

Sub-base

VMPAL-AP-20-RV

Part number: 8034561

Data sheet

Feature

Value

Width

20 mm

Width

21.2 mm

Length

107.3 mm

Width dimension

21.2 mm

Integrated function

Non-return valve

Max. no. of valve positions

1

Flow direction

Non-reversible

Valve manifold design

Valve sizes can be mixed

Operating pressure

-0.09 MPa ... 1 MPa

Operating pressure

-0.9 bar ... 10 bar

Pilot pressure MPa

0.3 MPa ... 0.8 MPa

Pilot pressure

3 bar ... 8 bar

Suitability for vacuum

no

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

3 - High corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-5 °C ... 50 °C

Product weight

50 g

Pneumatic connection 2

for 18 mm cartridge

Pneumatic connection 4

For 18 mm cartridge

Note on materials

RoHS-compliant

Material of sub-base

PA-reinforced

8/4/22 - Subject to change - Festo SE & Co. KG
