CSJ-RGFB-200-MHF3 datasheet(1/1 Pages) LINX

Nome de Peças	CSJ-RGFB-200-MHF3

Descrição Electrónicos	CBL ASSEMBLY, MHF3 TO FEM. BLKHD RP-SMA, 0.81mm CBL

PDF	1 Pages

Scroll/Zoom	100%

Fabricante Electrônico	LINX [Linx Technologies]

Página de início	https://linxtechnologies.com/wp/

Logo

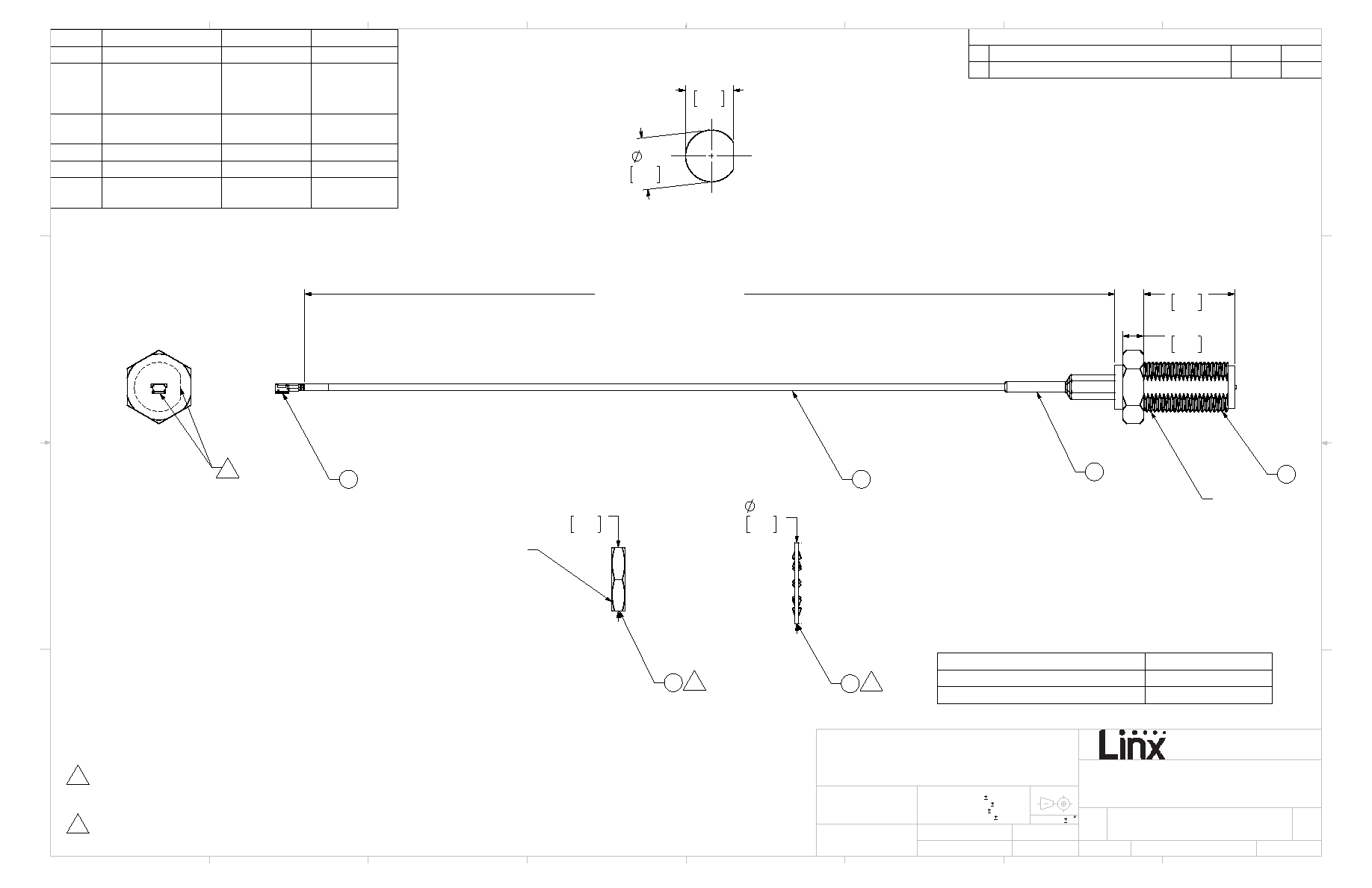

1 / 1 page

11.5

0.45

2.6

0.10

SEE PART NUMBER TABLE

A

B

C

1/4 - 36UNS - 2A

THREADS

F

H 8.0

0.31

D

1/4 - 36UNS - 2B

THREADS

10.2

0.40

E

88

6.0

0.24

6.5

0.26

RECOMMENDED

MOUNTING HOLE

NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN MILLIMETERS [INCHES].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE, USE

MATERIALS THAT DO NOT CONTAIN REACH SUBSTANCES OF VERY

HIGH CONCERN >1000ppm, AND USE DRC CONFLICT-FREE

SOURCED MATERIALS.

4. MINIMUM FREQUENCY RANGE: DC TO 6GHz.

5. CABLE ASSEMBLY SPECIFICATIONS;

- CHARACTERISTIC IMPEDANCE: 50Ω ± 3Ω

- INSERTION LOSS: 100mm - 0.37√f IN GHz TYP.

200mm - 0.68√f IN GHz TYP.

6. CONNECTOR TO BE APPLIED IN ACCORDANCE WITH CONNECTOR

SUPPLIER RECOMMENDED PROCEDURE.

7. TORQUE SPECIFICATIONS:

- BULKHEAD MOUNTING NUT TORQUE: 7 TO 10 in-lbs.

-RECOMMENDED MATING TORQUE: 7 TO 10 in-lbs.

8 CONNECTORS TO BE ORIENTED WITH MHF3 CONNECTOR MATING

FACE 90° CLOCKWISE FROM BULKHEAD CONNECTOR THREAD FLAT

FACE, AS SHOWN.

9 INSTALL WASHER (ITEM E) AND NUT (ITEM D) ONTO CONNECTOR

BODY (ITEM B).

9

REVISIONS

REV

DESCRIPTION

DATE

APPV

A INITIAL RELEASE OF LINX INTERNAL DRAWING

13-NOV-19

CLL

ITEM

DESCRIPTION

MATERIAL

FINISH

A

MHF PLUG TYPE III

BRASS

GOLD

B

RP-SMA FEM.

BULKHEAD MOUNT

CONNECTOR

BRASS

GOLD

C

CABLE

0.81mm

COAXIAL

BLACK

D

NUT

BRASS

GOLD

E

WASHER

BRASS

GOLD

F

HEAT SHRINK

TUBING

POLYOLEFIN

BLACK

PART NUMBER

CABLE LENGTH

CSJ-RGFB-100-MHF3

100mm ± 1.5mm

CSJ-RGFB-200-MHF3

200mm ± 3.0mm

D

C

B

A

B

C

D

1

2

3

4

5

6

7

8

7

6

5

4

3

2

1

PROJECTION:

FINISH:

MATERIAL:

DT: 13-NOV-19

DT: 23-SEP-19

ENGR: D.VARATHARAJAN

DRAWN: B.MURPHY

ANGLES: 1

159 ORT LANE

MERLIN, OR 97532

BLKHD RP-SMA, 0.81mm CBL

CBL ASSEMBLY, MHF3 TO FEM.

A

CSJ-RGFB-***-MHF3

DO NOT SCALE DRAWING

REV

DWG. NO.

SIZE

TITLE:

B

SCALE: 2.5:1

LDCFDFB_C

SHEET 1 OF 1

WARNING: THIS DRAWING CONTAINS PROPRIETARY INFORMATION

THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS

DESIGNATED AGENTS.

TOLERANCES:

0.50 [.020]-5.00 [.200]= 0.20 [.008]

5.00 [.200]-30.00 [1.200]= 0.40 [.016]

30.0 [1.20]-120.0 [4.75]= 0.60 [0.24]

120.0 [4.75]-315.0 [12.40]= 1.0 [.040]
