ø22mm - TW Series

Switches & Pilot Devices

704

www.IDEC.com

1904032203

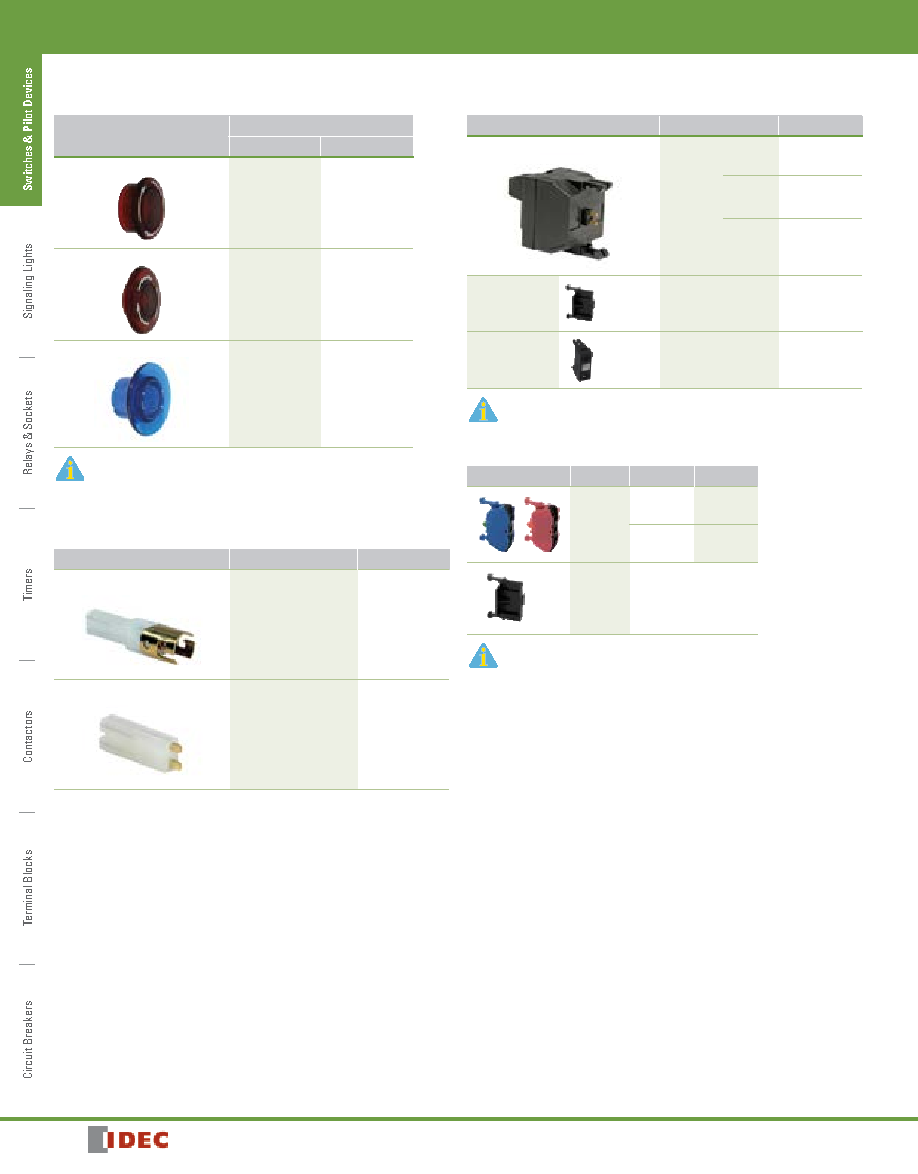

Illuminated Stop Switches (Sub-Assembled) continued

Lenses

Style

Part Number

Standard

Engravable

Ø 29mm Head Pushlock Turn Reset

AVLW3LU-R*

AVLW3BLU-R*

Ø 40mm Head Pushlock Turn Reset

AVLW4LU-R*

AVLW4BLU-R*

Ø 40mm Head Push Pull

AYLW4LU-k

AYLW4BLU-k

1. In place of k, specify the lens color code from table on previous page.

2. *Available only in red

3. Standard lenses have ribbed pattern, Engravable lenses are smooth and include an

engravable insert.

Lamp Circuit Components

Style

Application

Part Number

Long Lamp Holder

Used with Full-size

Transformer and two

contact blocks

TW-LH2

Lead Holder

Used with TW-LH2

holder when using four

contact blocks and

transformer

HW-LH3

Transformers/Full Voltage Modules

Style

Description

Part Number

Full Size Transformer

Finger-Safe

120V AC

TW-F126B

240V AC

TW-F246B

480V AC

TW-F486B

Dummy Block with

Full Voltage Adaptor

For use

with odd

number of

contacts.

Finger-Safe

HW-DA1FBN

Full Voltage Adaptor

For use

with even

number of

contacts.

Finger-Safe

TW-DA1FB

All Transformers step down to 6V (use 6V LED).

Contact Blocks

Style

Contacts

1NO

1NC

Finger-

Safe

Spring-Up

Terminal

HW-U10-F

HW-U01-F

HW-U10R-F

(early make)

HW-U01R-F

(late break)

Dummy

Block

HW-DB

1. Dummy blocks (no contacts) are used with an odd number of contact blocks.

2. Use of early and late break contacts creates a make before break function
