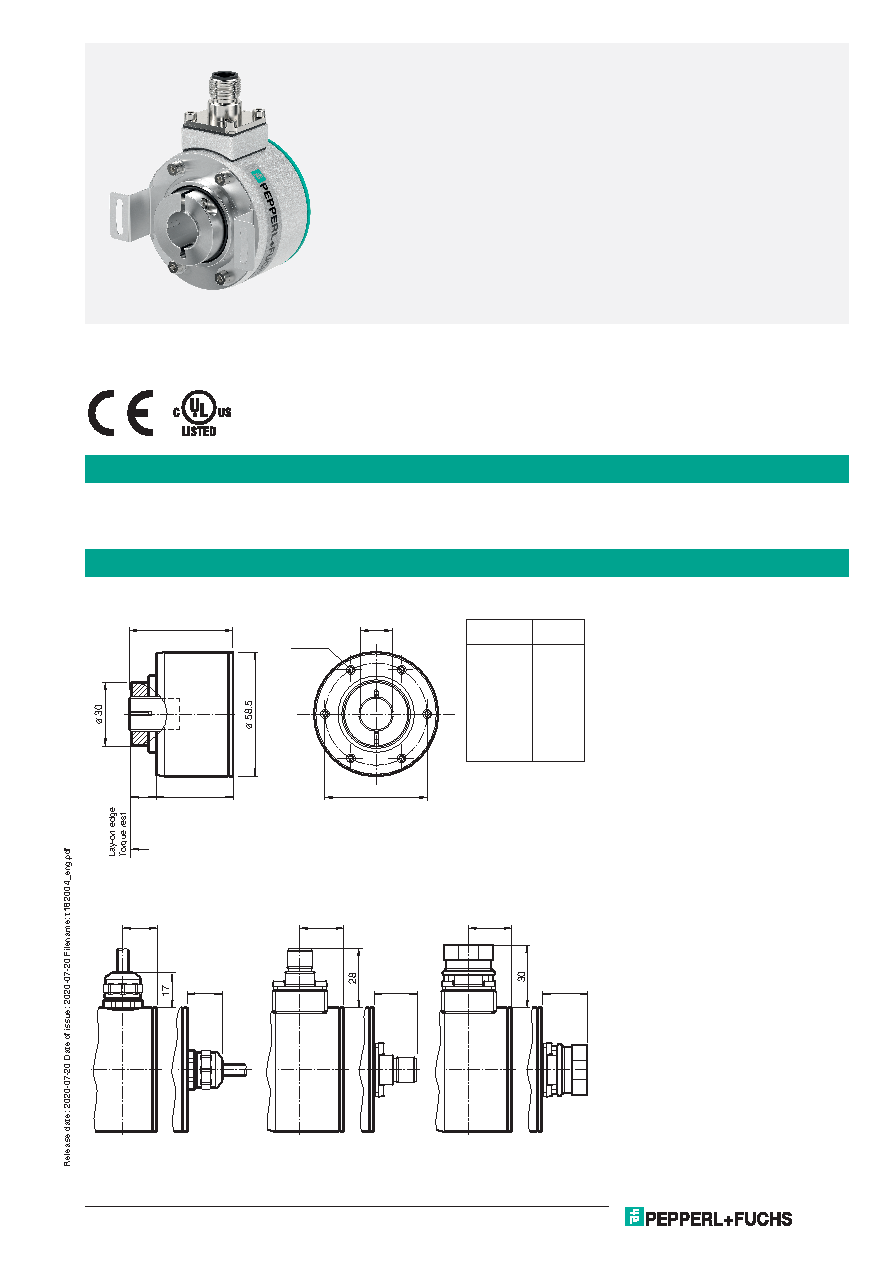

Incremental rotary encoder

ENI58IL-R

Function

The ENI58IL impresses with its modular design, which is available over all mechanical and electrical interfaces. The ENI58IL is the best solution

for all common applications, coupled with its high robustness, high reliability and versatility. With the high-precision BlueBeam technology and

innovative housing design, the ENI58IL is the new market standard for incremental encoders.

Dimensions

49.5

13

36

ø 48

X H7

ø 3/8“

ø 9.525

ø 1/2“

ø 12.7

ø 1/4“

ø 6.35

ø 15

ø 15

ø 14

ø 14

ø 12

ø 12

ø 10

ø 10

ø 8

ø 8

ø 6

ø 6

X [mm]

M3 (6x)

Recessed hollow shaft with cable and connector M12, M23 (radial, axial) and MIL connector (axial)

Recessed

hollow shaft

Max. insertion depth = 23

Min. insertion depth = 15

16

16

19.7

21

22.5

19.7

Cable

Connector M12

Connector M23

Connections

1
