MODEL: R3-NC3

R3-NC3 SPECIFICATIONS

ES-8422 Rev.20 Page 2/8

https://www.m-system.co.jp/

Station No. setting: Rotary switch; 1 – 64

Baud rate setting: Rotary switch

156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps

Station type: Remote device station

Data allocation: 4 (112 I/O points, 16 words) × m

(m = Cyclic expansion setting)

Transmission cable: Approved for CC-Link

INSTALLATION

Power consumption

•AC: Approx. 20 VA

•DC: Approx. 12 W

Current consumption (no power supply): 120 mA

Output current (power supply): 250 mA continuous at 20 V

DC; 400 mA for 10 minutes

Operating temperature: -10 to +55°C (14 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: Installation Base (model: R3-BSx)

Weight: 200 g (0.44 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute (CC-Link to

internal bus or internal power to power input to RUN contact

output to FG

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

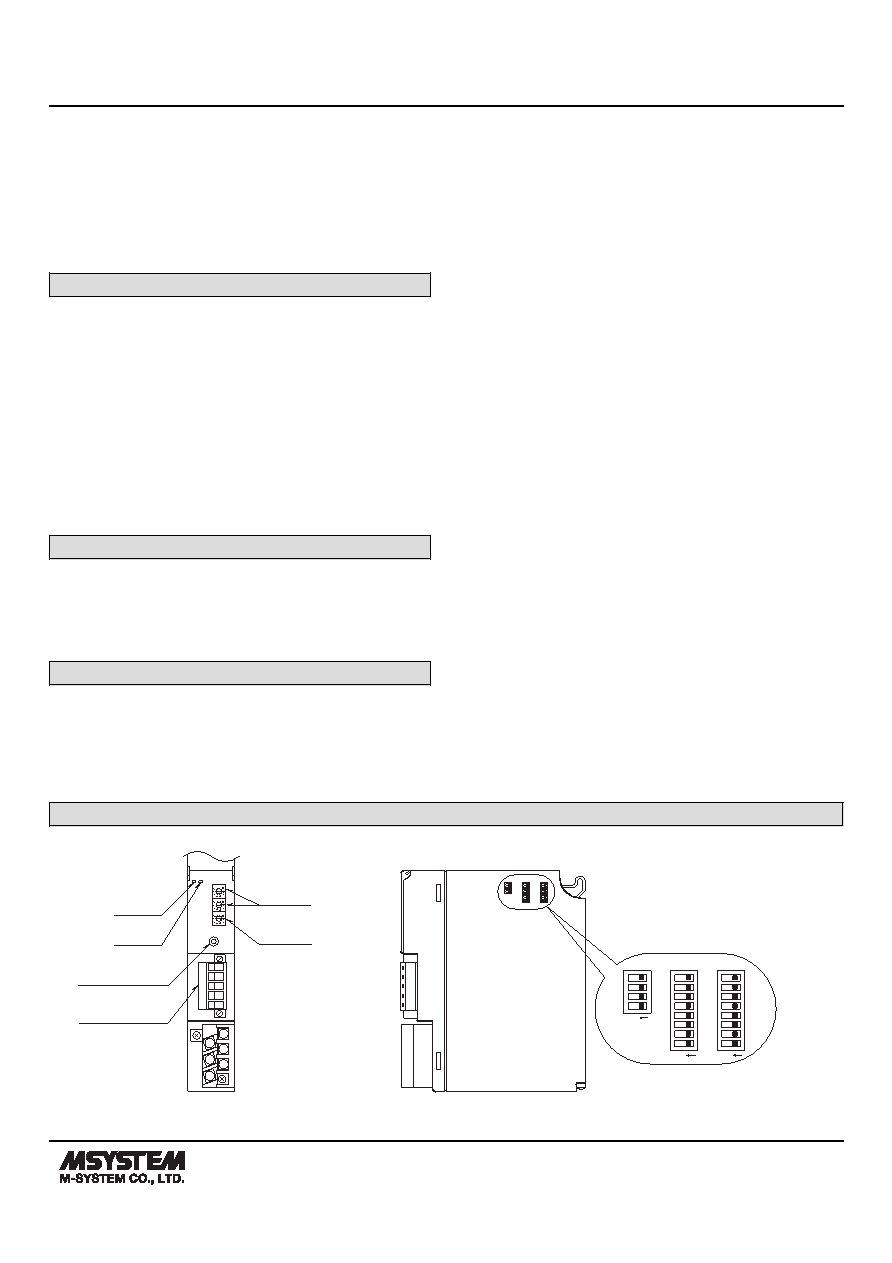

EXTERNAL VIEW

RUN LED

■ FRONT VIEW

■ SIDE VIEW

ERR LED

SW2

ON

8

7

6

5

4

3

2

1

SW3

ON

4

3

2

1

ON

8

7

6

5

4

3

2

1

SW1

1

2

3

4

5

6

Configuration Jack

8

7

8

7

8

7

FG

SLD

DG

DB

DA

Station No.

Rotary SW

Baud Rate

Rotary SW

SA1

x10

SA2

x1

B RATE

Euro Type

Connector Terminal

DIP SW
