 2009-2014 Microchip Technology Inc.

DS20002194E-page 9

MCP660/1/2/3/4/5/9

Note: Unless otherwise indicated, TA =+25°C, VDD = +2.5V to 5.5V, VSS = GND, VCM =VDD/3, VOUT =VDD/2,

VL =VDD/2, RL =1 kto VL, CL = 20 pF and CS =VSS.

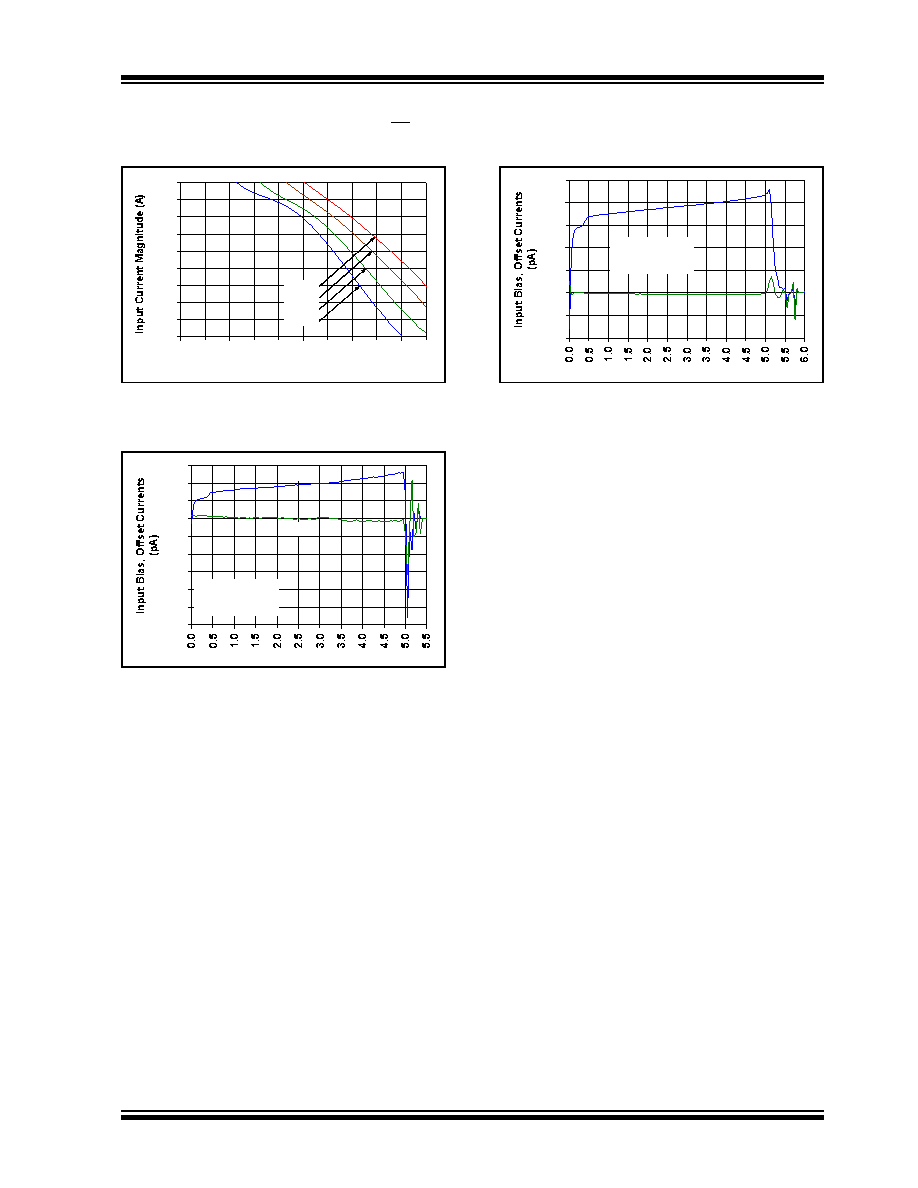

FIGURE 2-13:

Input Bias Current vs. Input

Voltage (below VSS).

FIGURE 2-14:

Input Bias and Offset

Currents vs. Common-Mode Input Voltage with

TA =+85°C.

FIGURE 2-15:

Input Bias and Offset

Currents vs. Common-Mode Input Voltage with

TA = +125°C.

1.E-12

1.E-11

1.E-10

1.E-09

1.E-08

1.E-07

1.E-06

1.E-05

1.E-04

1.E-03

-1.0 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0.0

Input Voltage (V)

+125°C

+85°C

+25°C

-40°C

100µ

10µ

1µ

100n

10n

100p

10p

-120

-100

-80

-60

-40

-20

Common Mode Input Voltage (V)

Representative Part

TA = +85°C

VDD = 5.5V

IOS

-400

-200

200

400

600

800

1000

Common Mode Input Voltage (V)

Representative Part

TA = +125°C

VDD = 5.5V

IOS
