MODEL: M8BS2

M8BS2 SPECIFICATIONS

ES-5495 Rev.15 Page 2/14

http://www.m-system.co.jp/

(output 1 to output 2 to power to FG)

Input/Output use: ≥ 100 MΩ with 500 V DC

(Input(input side) to Output 2(input side) to Output 1(output

side) to Output 2(output side) to power to FG)

Dielectric strength

• Input use

DC power:

1500 V AC @1 minute (input to output 2 or power to FG)

500 V AC @1 minute (output 2 to power)

AC power:

1500 V AC @1 minute (input to output 2 or power)

1500 V AC @1 minute (input to FG)

500 V AC @1 minute (output 2 to power to FG)

• Output use (M8YVx)

DC power:

1500 V AC @1 minute (output 1 or output 2 or power to FG)

500 V AC @1 minute (output 1 to output 2 to power)

AC power:

1500 V AC @1 minute (input to output 1 or output 2 or

power)

1500 V AC @1 minute (input to FG)

500 V AC @1 minute (output 1 to output 2 to power to FG)

• Output use (M8YSx)

DC power:

1500 V AC @1 minute (input or output or power to FG)

500 V AC @1 minute (input to power)

AC power:

1500 V AC @1 minute (output to input or power)

1000 V AC @1 minute (output to FG)

500 V AC @1 minute (input to power to FG)

• Input/Output use

DC power:

1500 V AC @1 minute (Input(input side) to Output 2(input

side) or Output 1(output side) or Output 2(output side) or

power to FG)

500 V AC @1 minute (Output 2(input side) to Output

1(output side) to Output 2(output side) to power)

AC power:

1500 V AC @1 minute (Input(input side) to Output 2(input

side) or Output 1(output side) or Output 2(output side) or

power)

1500 V AC @1 minute (Input(input side) to FG)

500 V AC @1 minute (Output 2(input side) to Output

1(output side) to Output 2(output side)to power to FG)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

Low Voltage Directive

The AC power unit conforms with the following standards:

EN 50178

Installation Category II

Pollution Degree 2

Max. operating voltage 300 V

RoHS Directive

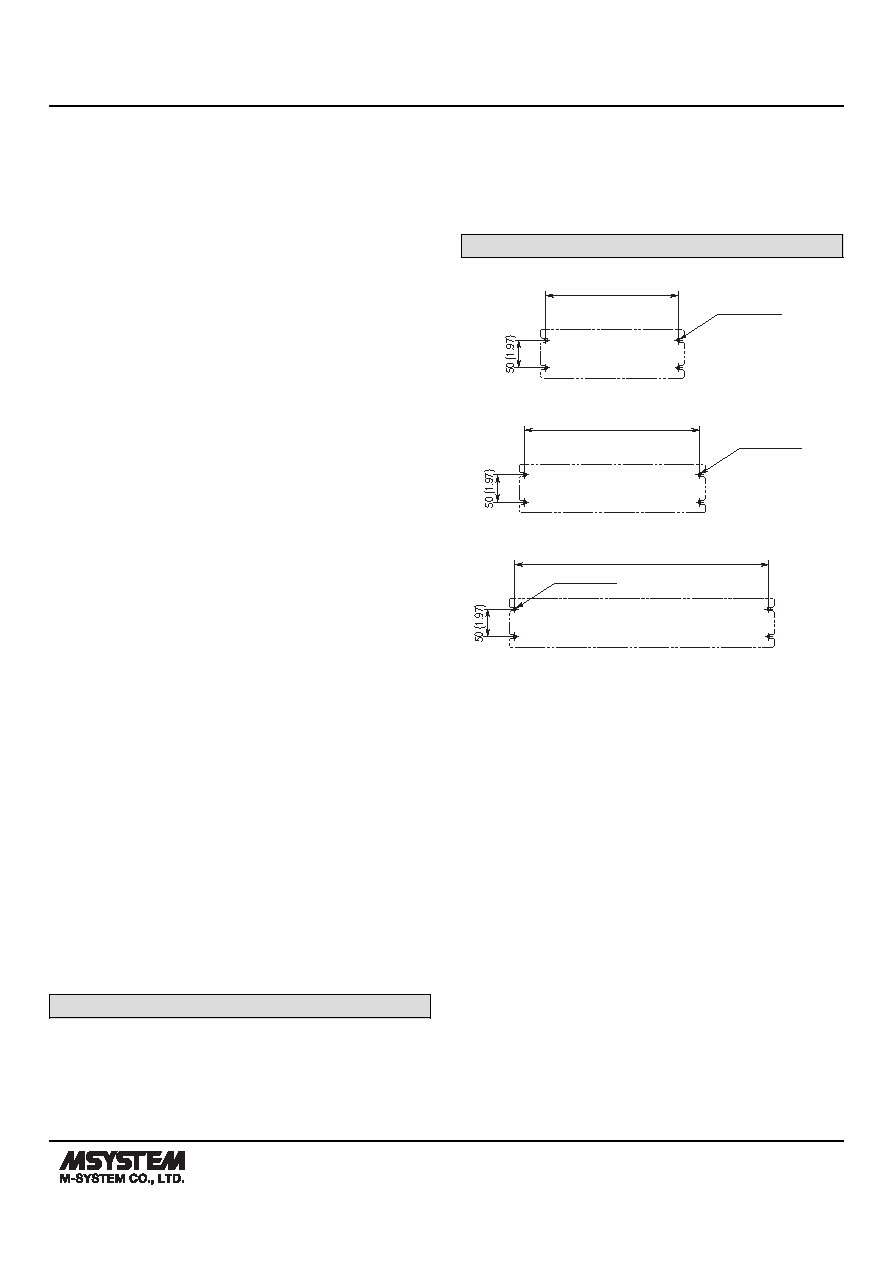

MOUNTING REQUIREMENTS unit: mm (inch)

■ M8BS2-04x

230 (9.06)

4–M5 SCREW

■ M8BS2-08x

300 (11.81)

4–M5 SCREW

■ M8BS2-16x

460 (18.11)

4–M5 SCREW
