MODEL: M7EASDY

M7EASDY SPECIFICATIONS

ES-7763 Rev.12 Page 5/5

https://www.m-system.co.jp/

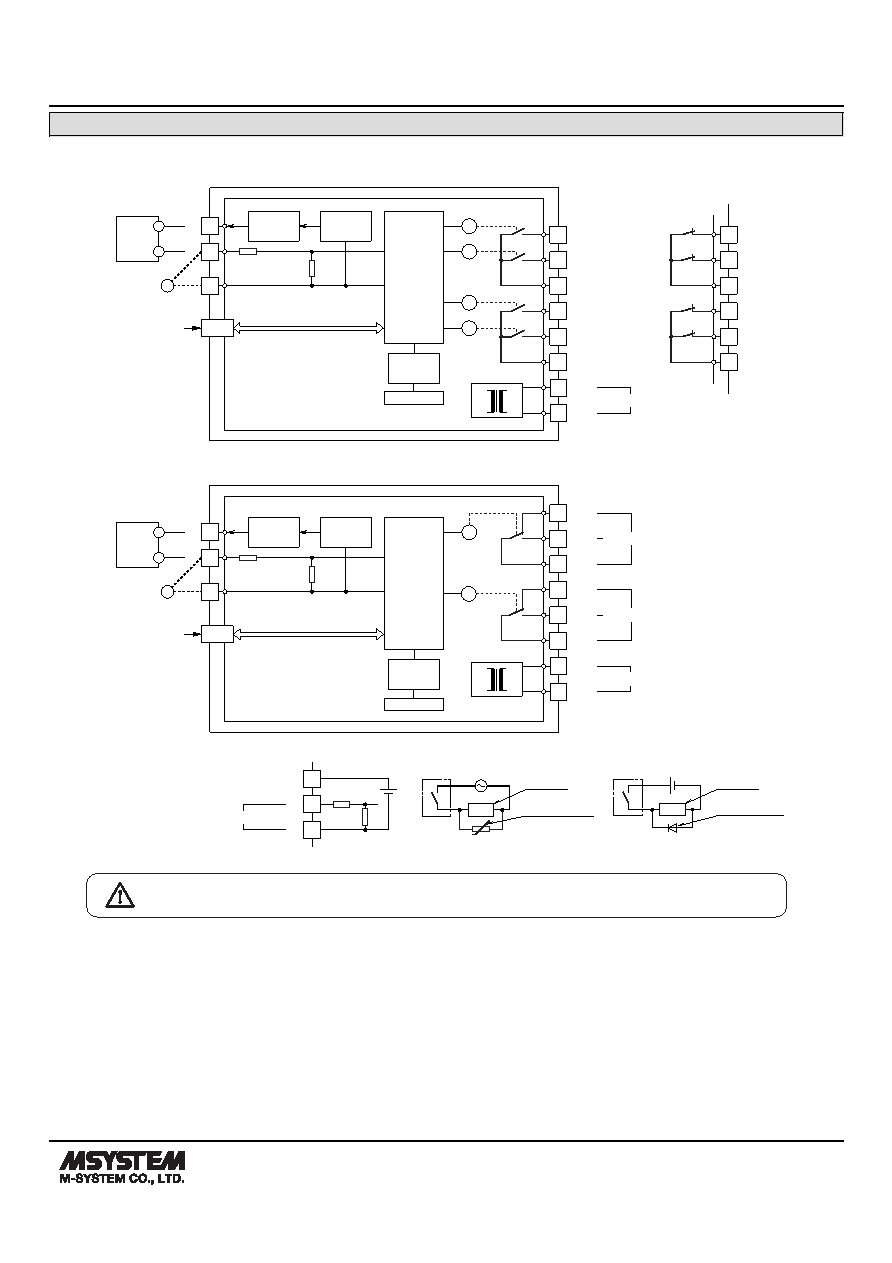

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Base Socket

Digital

Computation

Circuit

• DC Powered

■Relay Protection

• AC Powered

L2 OUTPUT

L1 OUTPUT

N.C.

N.O.

COM

N.C.

N.O.

COM

■OUTPUT CODE 5: SPDT Relay

Base Socket

Digital

Computation

Circuit

24V DC

Supply

Shortcircuit

Portection

L4 OUTPUT

L1 OUTPUT

COM

L3 OUTPUT

L2 OUTPUT

COM

■OUTPUT CODE 2: N.O. Relay

■ OUTPUT CODE 3:

N.C. Relay

L4 OUTPUT

L1 OUTPUT

COM

L3 OUTPUT

L2 OUTPUT

COM

Digital

Computation

CONTROL SW

Digital

Computation

CONTROL SW

CONFIGURATOR

JACK

50Ω

200Ω

–

2-WIRE

TRANSMITTER

–

V –

(1 – 5VDC)

MONITOR

24V DC

Supply

Shortcircuit

Portection

CONFIGURATOR

JACK

50Ω

200Ω

–

2-WIRE

TRANSMITTER

–

V –

(1 – 5VDC)

MONITOR

50Ω

200Ω

No Connection

–

INPUT

■When 24V DC is Not Used

U(+)

V(–)

POWER

U(+)

V(–)

POWER

LOAD

Inductive

Load (Coil)

Varistor or Spark

Quenching Circuit

LOAD

Inductive

Load (Coil)

Diode, Varistor or

CR Circuit

Specifications are subject to change without notice.
