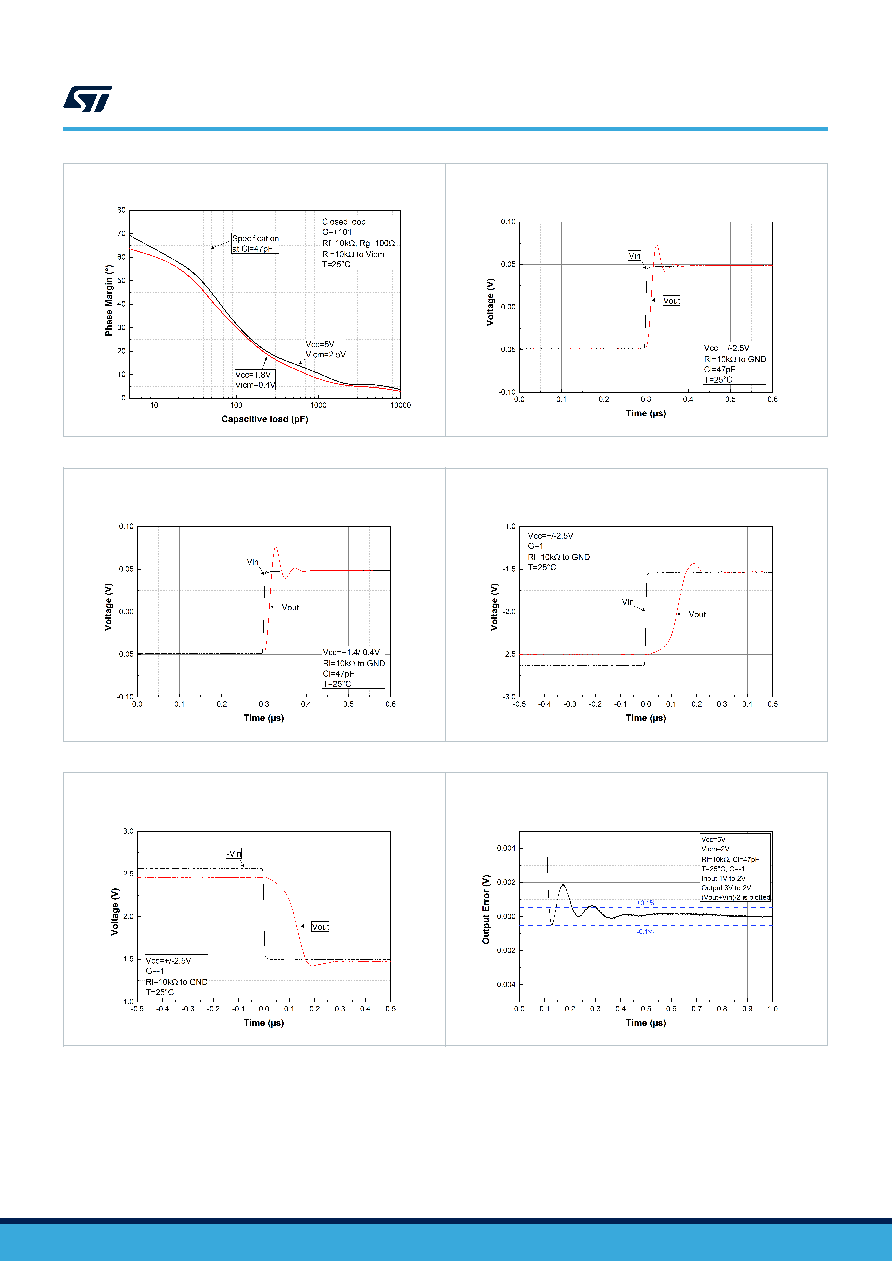

Figure 28. Phase margin vs. capacitive load
Figure 29. Small step response at VCC = 5 V
Figure 30. Small step response at VCC = 1.8 V
Figure 31. Desaturation from low rail at VCC = 5 V
Figure 32. Desaturation from high rail at VCC = 5 V
Figure 33. Settling time output high to low at VCC = 5 V
TSV7721, TSV7722, TSV7723
Typical performance characteristics
DS13614 - Rev 3
page 16/40
