3 / 3 page

MODEL: LPCA

http://www.m-system.co.jp/

LPCA SPECIFICATIONS

ES-1970 Rev.6 Page 3/3

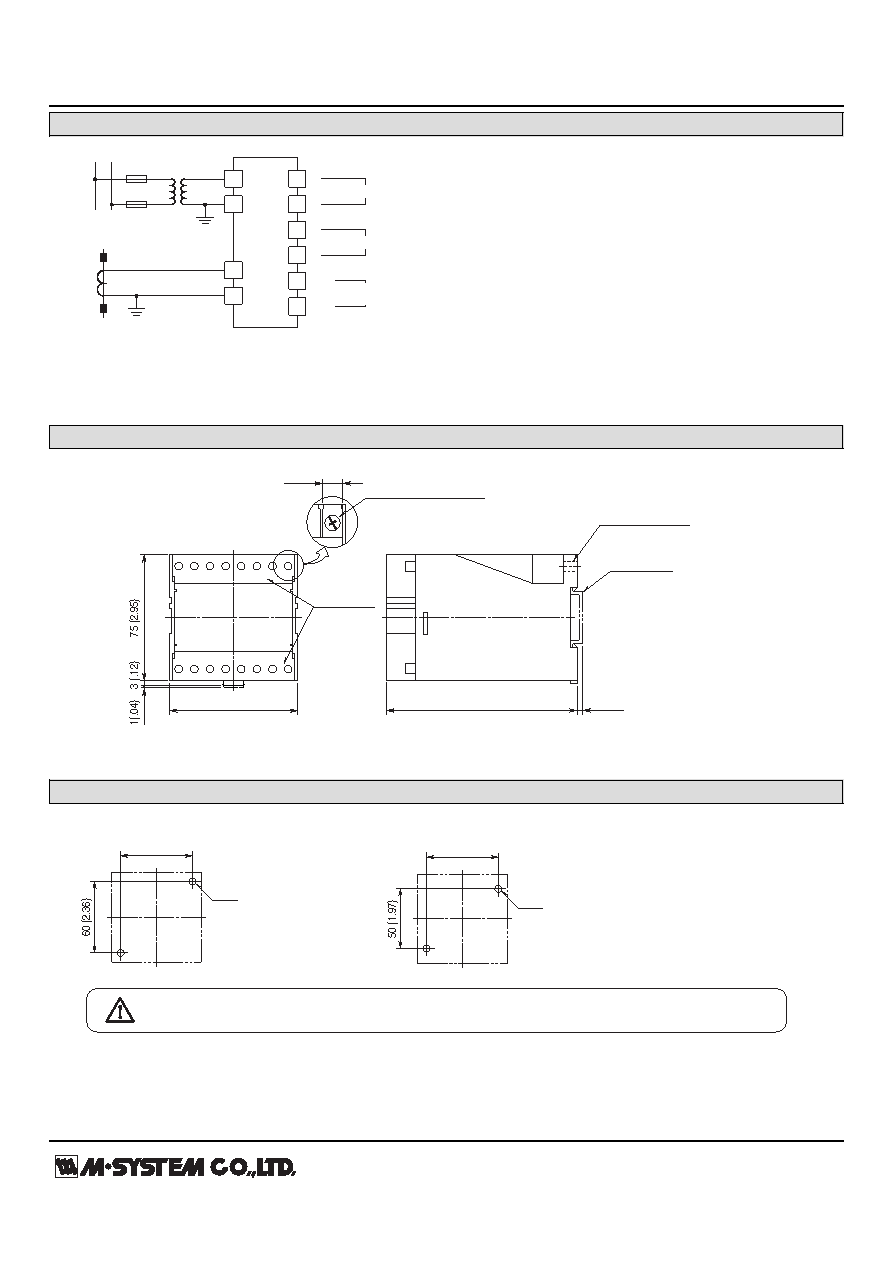

CONNECTION DIAGRAM

–

VT OUTPUT

–

CT OUTPUT

LOAD

SOURCE

U(+)

V(–)

FUSE

LOAD

SOURCE

AUXILIARY

POWER

* The transducer can be powered from the input voltage

when the voltage is sufficiently stable and meets other

supply voltage requirements.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

112 (4.41)

[3.3 (.13)]

DIN RAIL

35mm wide

8 (.31)

M3.5 SCREW

(Only on the used terminals)

75 (2.95)

TERMINAL

COVER

2–5.8 (.23) dia. or

2–4.8 (.18) dia.

MTG HOLE

8 (.31) deep

•When mounting, no extra space is needed between units.

9 10 11 12 13 14 15 16

1 2

7 8

MOUNTING REQUIREMENTS unit: mm (inch)

2–M5

60 (2.36)

■ M5 SCREWS

2–M4

60 (2.36)

■ M4 SCREWS

Specifications are subject to change without notice.
