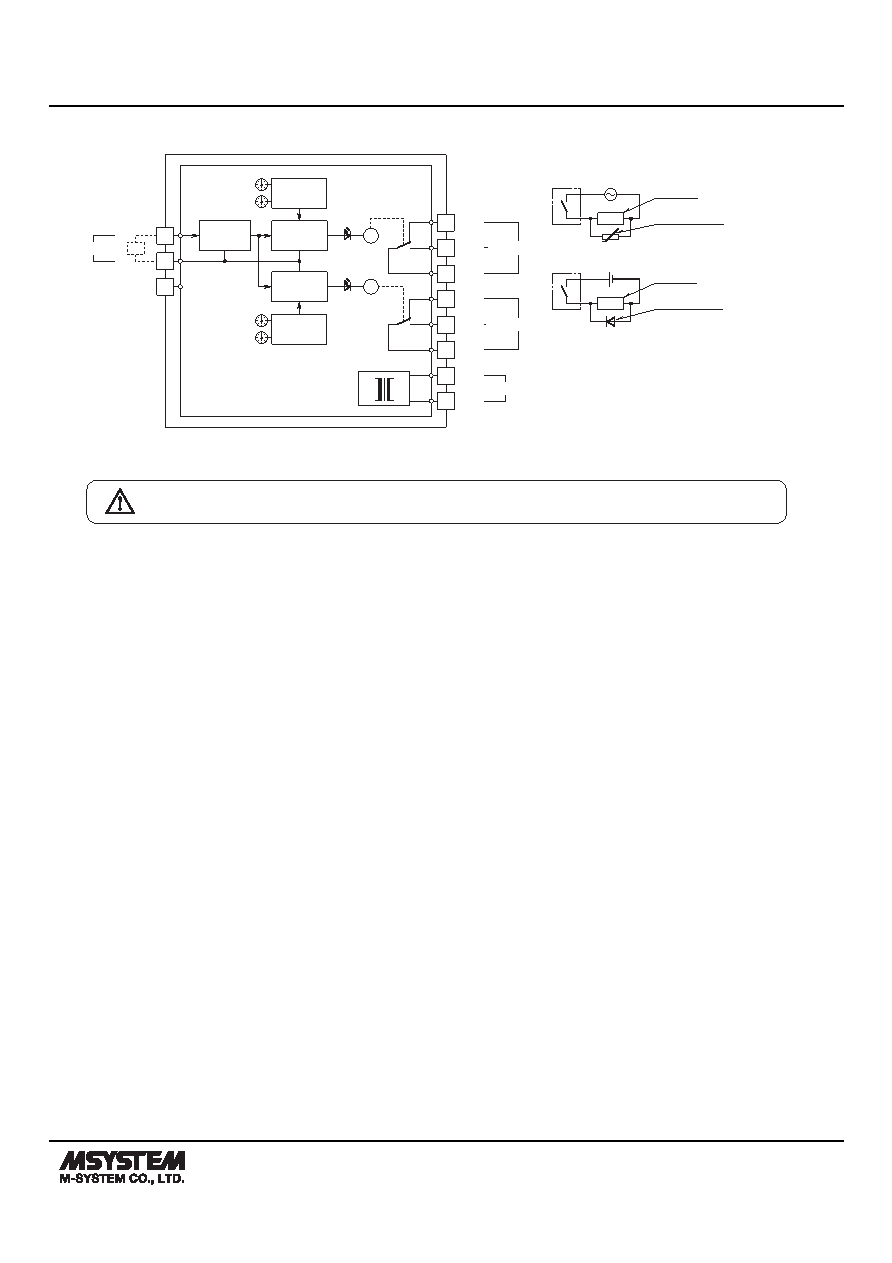

MODEL: KSL
KSL SPECIFICATIONS
ES-3613 Rev.10 Page 5/5
http://www.m-system.co.jp/
■OUTPUT CODE: 5
U(+)
V(–)
7
8
4
Comparator
+
–
*
INPUT
5
Low Drift
Amplifier
R
6
D / A
Converter
Comparator
D / A
Converter
Ry
2
3
1
Ry
10
11
9
N.C.
N.O.
COM
N.C.
N.O.
COM
*Input shunt resistor attached for current input.
POWER
LO OUTPUT
HI OUTPUT
ROTARY
SWITCH
ROTARY
SWITCH
LOAD
Inductive
Load (Coil)
Varistor or Spark
Quenching Circuit
•DC Powered
LOAD
Inductive
Load (Coil)
Diode, Varistor or
CR Circuit
■ Relay Protection
•AC Powered
U
Base Socket
Specifications are subject to change without notice.
