MODEL: 5VS

http://www.m-system.co.jp/

5VS SPECIFICATIONS

ES-2318 Rev.8 Page 2/2

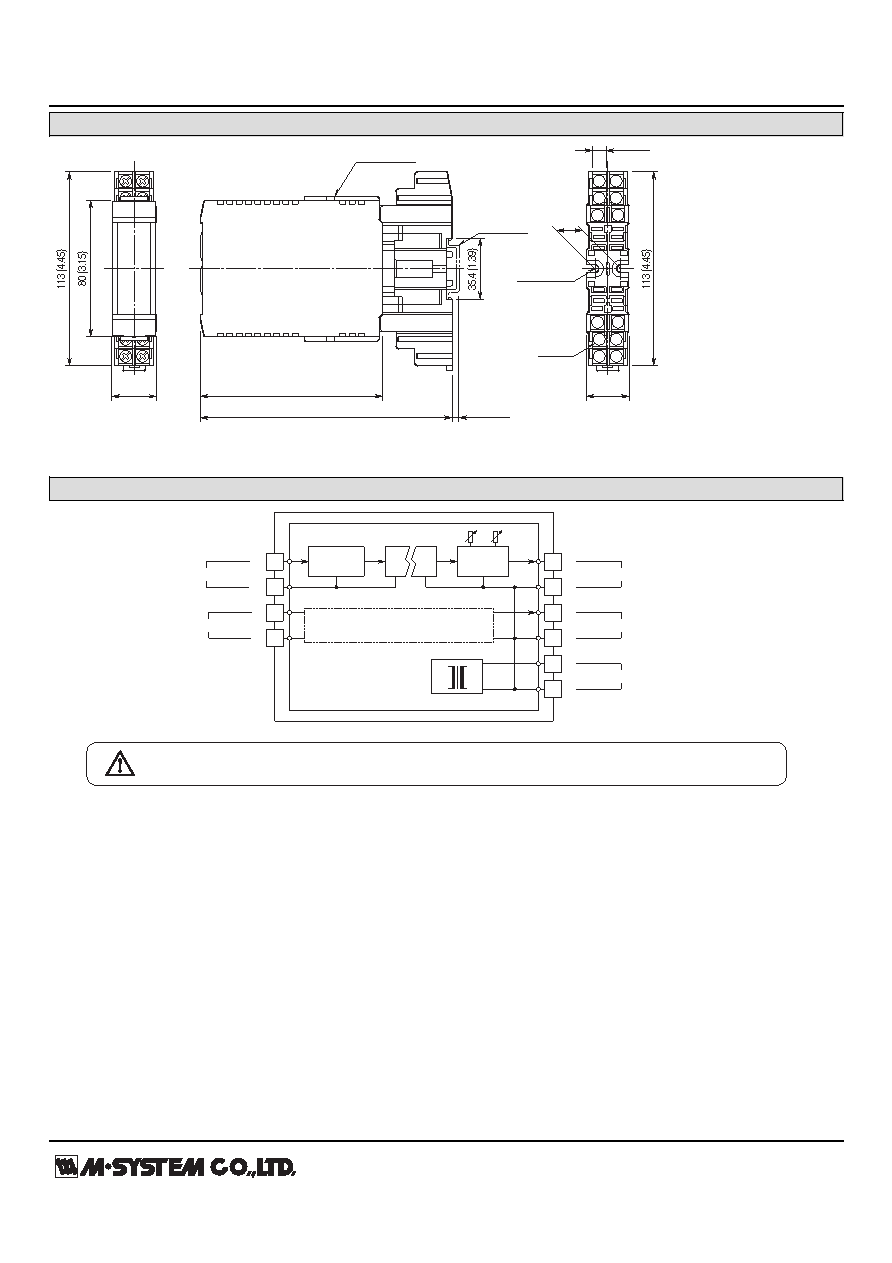

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

1

2

3

4

7

6

8

5

11 12

9 10

26 (1.02)

107 (4.21)

DIN RAIL

35mm wide

[3.3 (.13)]

26 (1.02)

15

(.59)

7.8 (.31)

2–4.5 (.18)

HOLE

15 (.59) deep

12–M3.5

SCREW

CLAMP

(top & bottom)

148 (5.83)

•When mounting, no extra space is needed between units.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

Isolation

Low Drift

Amplifier

Output

Driver

Ch.1 OUTPUT

5

6

+

–

Ch.1 INPUT

1

2

S

Z

3

4

9 +

+

–

Ch.2 INPUT

Channel 2

Ch.2 OUTPUT

Base Socket

–

10

7 +

POWER

–

8
