MODEL: M2BD
M2BD SPECIFICATIONS
ES-5002 Rev.10 Page 3/7
http://www.m-system.co.jp/

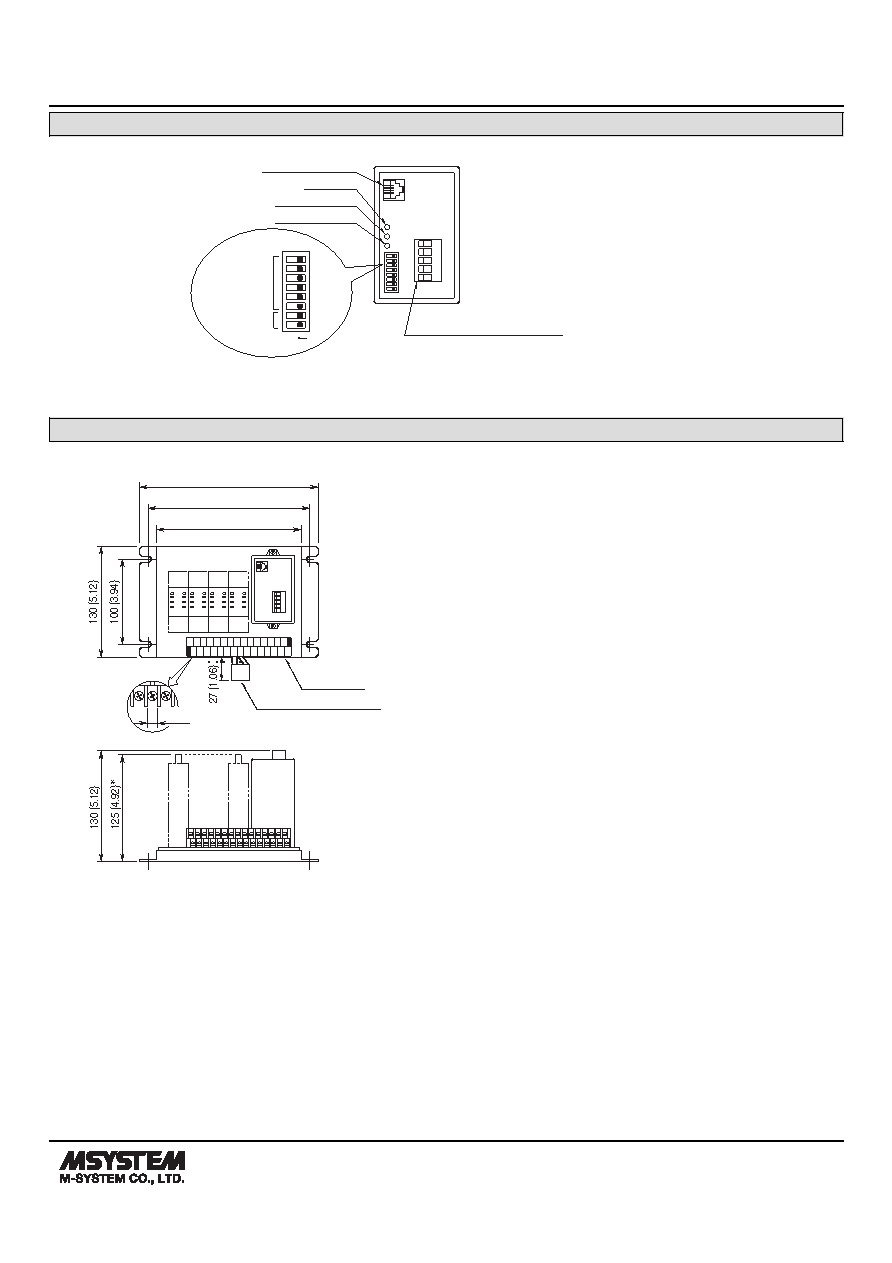

COMM. MODULE FRONT PANEL
PWR
MS
NS
NA1
NA0
NA2
NA3
NA4
NA5
DR0
DR1
ON
Node
Address
Setting
Baud Rate
Setting
NS Indicator LED
Euro Type Connector Terminal
for DeviceNet
MS Indicator LED
Power LED
PU-2x Modular Jack
Refer to the instruction manual for detailed procedures.
EXTERNAL DIMENSIONS unit: mm (inch)
■ M2BD-041 (INPUT BASE)
1
2
3
4
5 8
1 4
5 8
1 4
5 8
1 4
5 8
1 4
FG1
13 14
CH4
CH1
6 (.24)
170 (6.69)
190 (7.48)
210 (8.27)
2–M3 POWER
TERMINALS
CT PROTECTOR (CTM2)
**
16–M3 INPUT TERMINALS
* 165 (6.50) required for pneumatic tubing for M2PV.
** Attached to M2CA and M2CE.
