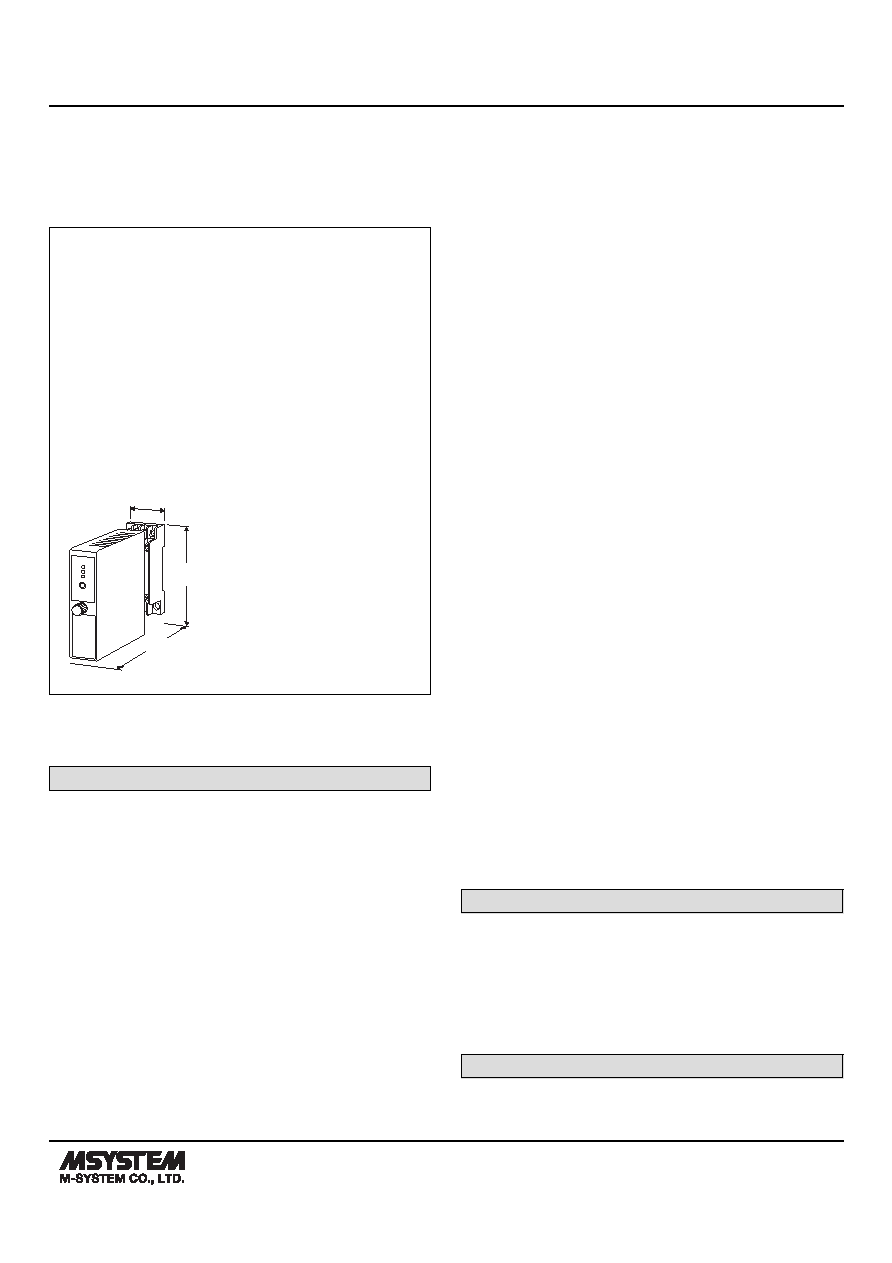

1 / 4 page  MODEL: W2XM W2XM SPECIFICATIONS ES-5504 Rev.6 Page 1/4 http://www.m-system.co.jp/ Space-saving Dual Output Signal Conditioners Mini-MW Series POTENTIOMETER TRANSMITTER (PC programmable) Functions & Features • Provides two DC outputs proportional to a potentiometeror slidewire position input • Two independent output ranges • Burnout detection • PC programmable • High-density mounting Typical Applications • Tank levels • Positions 88.5 (3.48) 29.5 (1.16) 124 (4.88) mm (inch) MODEL: W2XM–1[1][2]-[3][4] ORDERING INFORMATION • Code number: W2XM-1[1][2]-[3][4] Specify a code from below for each of [1] through [4]. (e.g. W2XM-1Z1V3-M2/N/Q) • Total resistance (e.g. 1 kΩ) • Input range (e.g. 0 – 100 %) • Output 1 range (e.g. 4 – 20 mA DC) • Output 2 range (e.g. 1 – 5 V DC) • Specify the specification for option code /Q (e.g. /C01/S01) Note: When the user requires a current and a voltage output, specify the current to be the Output 1 which allows a greater load. INPUT 1: Total resistance 75 Ω – 10 kΩ (Configurator software is used to change the input range.) [1] OUTPUT 1 Current Z1: Range 0 – 20 mA DC Voltage V2: Range -10 – +10 V DC V3: Range -5 – +5 V DC (Configurator software is used to change output over the described range of the selected suffix code. For changing between suffix codes, set the Output Range Selector on the side of unit before software adjustment.) [2] OUTPUT 2 Same range availability as Output 1 Y: None (Configurator software is used to change output over the described range of the selected suffix code. For changing between suffix codes, set the Output Range Selector on the side of unit before software adjustment.) [3] POWER INPUT AC Power M2: 100 – 240 V AC (Operational voltage range 85 – 264 V, 47 – 66 Hz) DC Power R: 24 V DC (Operational voltage range 24 V ±10 %, ripple 10 %p-p max.) R2: 11 – 27 V DC (Operational voltage range 11 – 27 V, ripple 10 %p-p max.) P: 110 V DC (Operational voltage range 85 – 150 V, ripple 10 %p-p max.) [4] OPTIONS (multiple selections) Standards & Approvals (must be specified) /N: Without CE Other Options blank: none /Q: Option other than the above (specify the specification) SPECIFICATIONS OF OPTION: Q (multiple selections) COATING (For the detail, refer to M-System's web site.) /C01: Silicone coating /C02: Polyurethane coating /C03: Rubber coating TERMINAL SCREW MATERIAL /S01: Stainless steel RELATED PRODUCTS • PC configurator software (model: W2CFG) Downloadable at M-System’s web site. A dedicated cable is required to connect the module to the |
