MODEL: M6SWVS

M6SWVS SPECIFICATIONS

ES-7977 Rev.7 Page 3/4

http://www.m-system.co.jp/

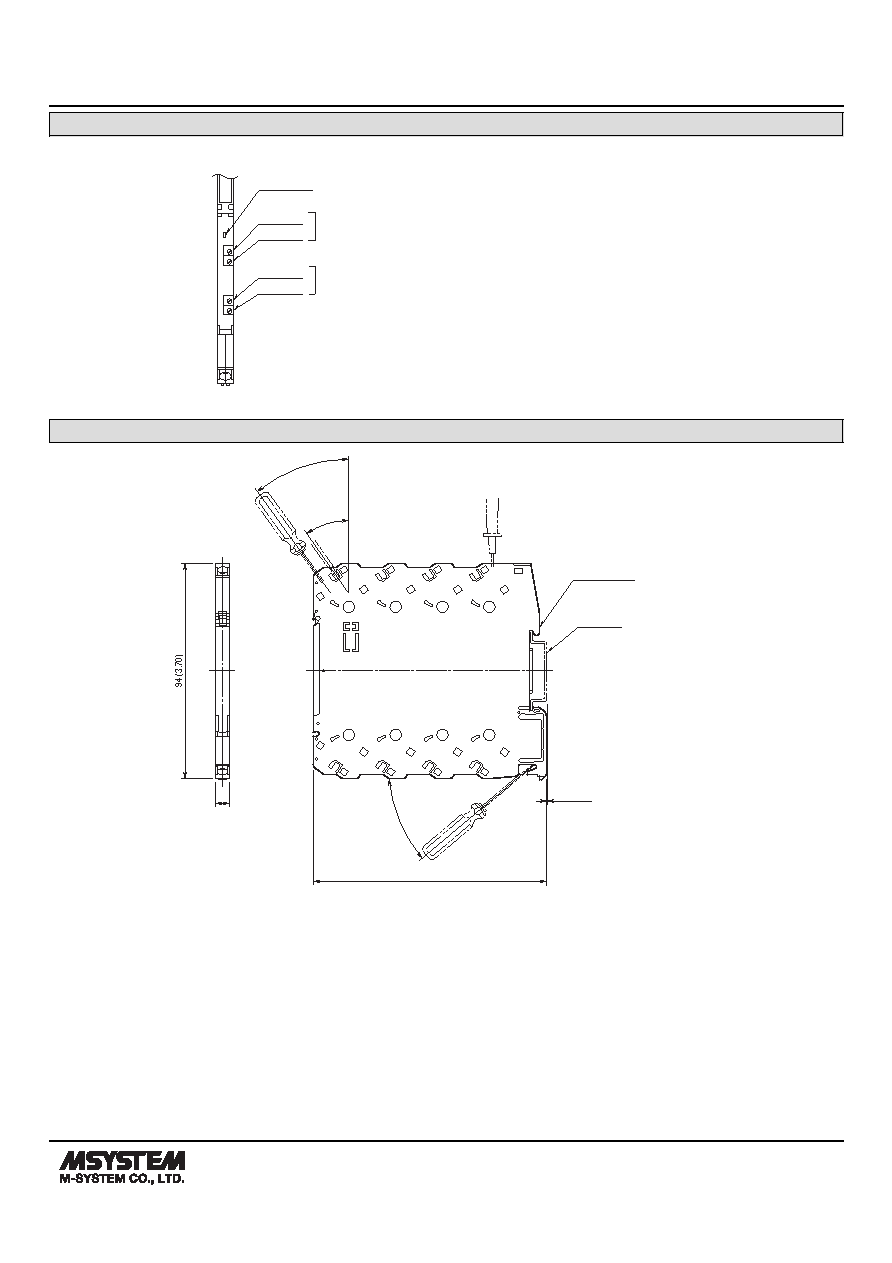

EXTERNAL VIEW

(With the cover open)

Zero Adj.

Power LED

Span Adj.

Output 1

Zero Adj.

Span Adj.

Output 2

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

5.9 (.23)

DIN RAIL

35mm wide

DIN RAIL HOOK

*Use a minus screwdriver: tip width 3.8 mm max., tip thickness 0.5 to 0.6 mm

102 (4.02)

[0.5 (.02)]

SCREWDRIVER

INSERTION ANGLE

: approx. 40°

WIRE INSERTION ANGLE

: approx.35°

TEST PROBE

max. 2 (.08) dia.

SCREWDRIVER *

INSERTION ANGLE

: approx. 35°

5

6

7

8

1

2

3

4

• When mounting, no extra space is needed between units.
