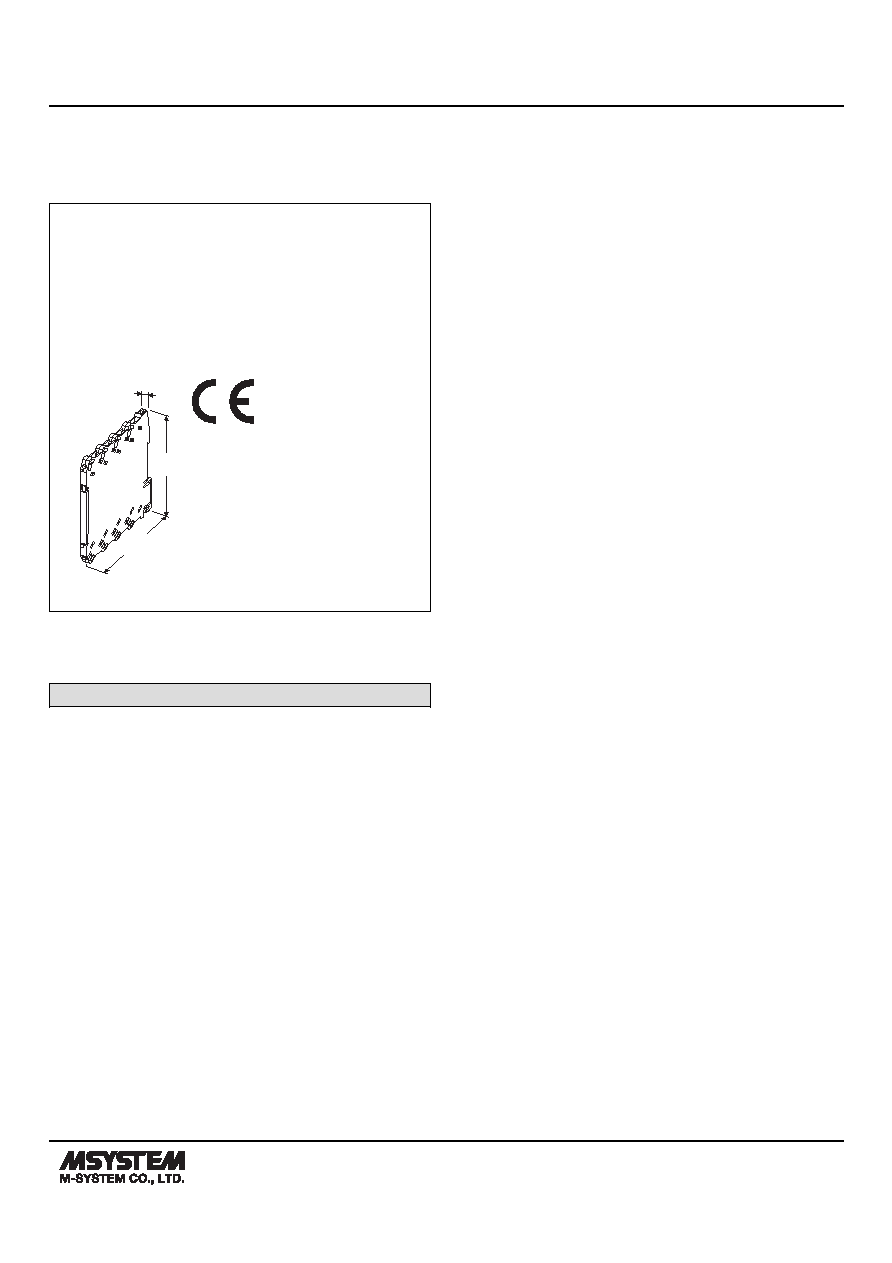

1 / 6 page  MODEL: M6DXU M6DXU SPECIFICATIONS ES-7853 Rev.5 Page 1/6 http://www.m-system.co.jp/ Euro Terminal Ultra-Slim Signal Conditioners M6D Series UNIVERSAL TRANSMITTER (PC programmable) Functions & Features • Universal input (mV, V, mA, T/C, RTD and potentiometer) 5.9-mm ultra-slim transmitter • Low profile allows the M6D module mounted in a 120-mm deep panel. • PC programmable • High-density mounting • Power indicator LED 5.9 (.23) 94 (3.70) 102 (4.02) mm (inch) MODEL: M6DXU–[1][2]–[3][4] ORDERING INFORMATION • Code number: M6DXU-[1][2]-[3][4] Specify a code from below for each [1] through [4]. (e.g. M6DXU-Z1Z1-M2/Q) Non-specified orders will be shipped as default factory settings (M6DXU-00: 4 – 20 mA input/4 – 20 mA output). • Input range (e.g. 4 – 20 mA DC) • Output range (e.g. 4 – 20 mA DC) • Specify the specification for option code /Q (e.g. /C01) [1] INPUT 0: User-calibrated (Factory default: 4 – 20 mA DC) If the unit is to be factory-calibrated to a specific input type, please select from the following: Current Z1: Range 0 – 50 mA DC (Input resistance 17 Ω) Voltage S1: Range -1000 – +1000 mV DC (Input resistance 1 MΩ min.) S2: Range -10 – +10 V DC (Input resistance 1 MΩ min.) Thermocouple T1: (PR) (Usable Range 0 to 1760°C, 32 to 3200°F) T2: K (CA) (Usable range -270 to +1370°C, -454 to +2498°F) T3: E (CRC) (Usable range -270 to +1000°C, -454 to +1832°F) T4: J (IC) (Usable range -210 to +1200°C, -346 to +2192°F) T5: T (CC) (Usable range -270 to +400°C, -454 to +752°F) T6: B (RH) (Usable range 100 to 1820°C, 212 to 3308°F) T7: R (Usable range -50 to +1760°C, -58 to +3200°F) T8: S (Usable range -50 to +1760°C, -58 to +3200°F) TN: N (Usable range -270 to +1300°C, -454 to +2372°F) T0: Specify (Please provide an emf table.) RTD (2- , 3- or 4-wire) R1: JPt 100 (JIS'89) (Usable range: -200 to +500°C, -328 to +932°F) R3: Pt 100 (JIS'89) (Usable range: -200 to +650°C, -328 to +1202°F) R4: Pt 100 (JIS'97, IEC) (Usable range: -200 to +850°C, -328 to +1562°F) R5: Pt 50 Ω (JIS'81) (Usable range: -200 to +649 °C, -328 to +1200°F) R7: Pt 1000 (Usable range: -200 to +850°C, -328 to +1562°F) R9: Cu 10 @25°C (Usable range: -50 to +250°C, -58 to +482°F) R0: Specify (Please provide a resistance table.) Potentiometer M1: Total resistance 100 – 5000 Ω (Configurator software is used to change input over the described range of the selected suffix code. For changing between suffix codes, set the Input Range Selector on the side of unit before software adjustment.) [2] OUTPUT 0: User-calibrated (Factory default: 4 – 20 mA DC) If the unit is to be factory-calibrated to a specific output type, please select from the following: Current Z1: Range 0 – 20 mA DC Voltage V2: Range -10 – +10 V DC V3: Range -5 – +5 V DC (Configurator software is used to change output over the described range of the selected suffix code. For changing between suffix codes, set the Output Range Selector on the side of unit before software adjustment.) [3] POWER INPUT AC Power M2: 100 – 240 V AC (Operational voltage range 90 – 264 V, 47 – 66 Hz) |
