KS2TR2-1-R Folha de dados(PDF) 4 Page - M-System Co.,Ltd.

Nome de Peças KS2TR2-1-R
Descrição Electrónicos  Plug-in Signal Conditioners K-UNIT
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  MSYSTEM [M-System Co.,Ltd.]
Página de início  https://www.m-system.co.jp/
Logo MSYSTEM - M-System Co.,Ltd.

KS2TR2-1-R Folha de dados(HTML) 4 Page - M-System Co.,Ltd.

  KS2TR2-1-R Datasheet HTML 1Page - M-System Co.,Ltd. KS2TR2-1-R Datasheet HTML 2Page - M-System Co.,Ltd. KS2TR2-1-R Datasheet HTML 3Page - M-System Co.,Ltd. KS2TR2-1-R Datasheet HTML 4Page - M-System Co.,Ltd.
Zoom Inzoom in Zoom Outzoom out
 4 / 4 page
background image
MODEL: KS2TR2
KS2TR2 SPECIFICATIONS
ES-3606 Rev.6 Page 4/4
https://www.m-system.co.jp/

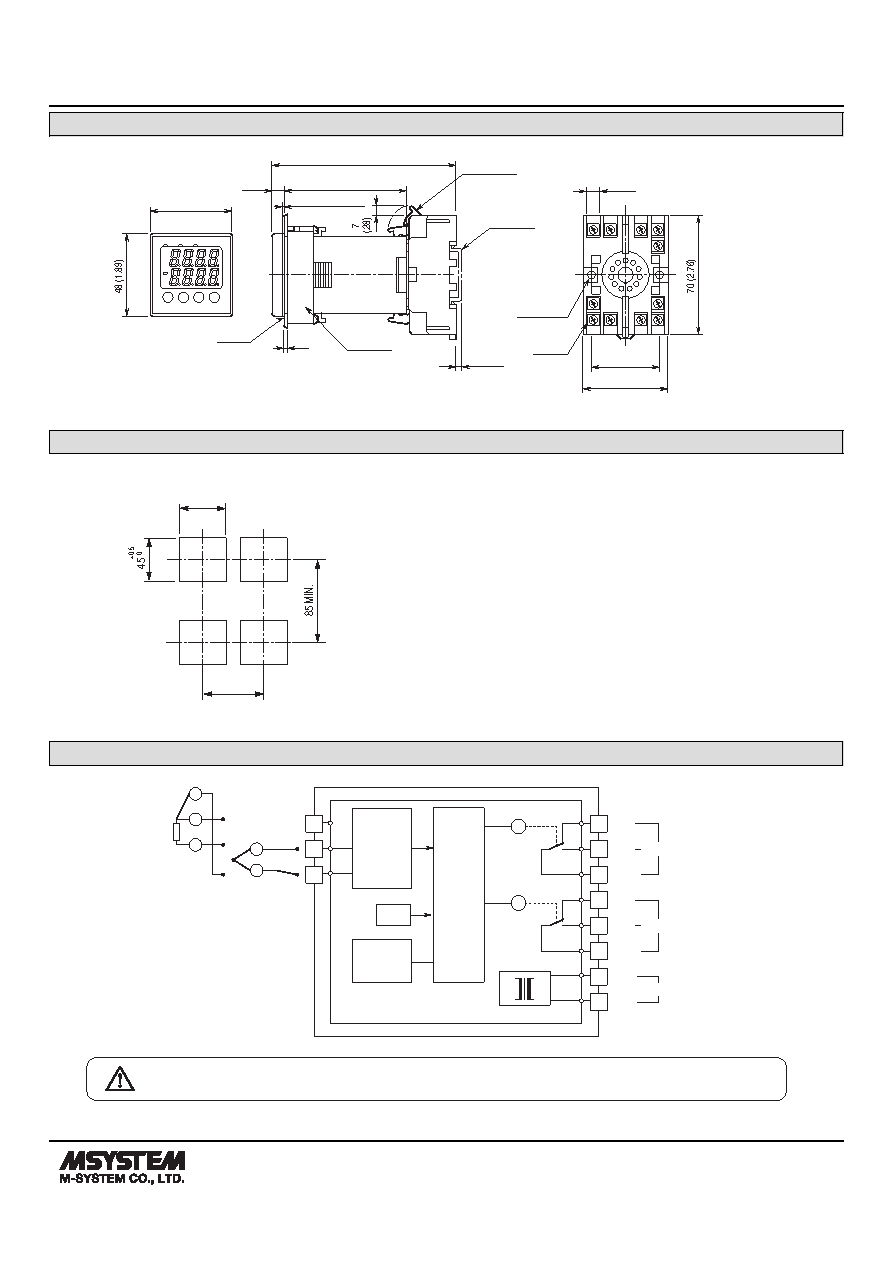

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]
5
6
7
8
2
1
11
10
3
9
4
[3.5] (.14)
110 (4.33)
7.5
(.3)
48 (1.89)
t
1 ≤ t ≤ 8
(.04 ≤ t ≤.31)
MOUNTING
BRACKET
71.5 (2.81)
40 (1.57)
50 (1.97)
7.8 (.31)
CLAMP
(top & bottom)
DIN RAIL
35mm wide
2–4.5 (.18) dia.
MTG HOLE
25 (.98) deep
1 1–M3.5
SCREW
PACKING
PANEL
1.5 (.06)
PANEL CUTOUT unit: mm
■PANEL CUTOUT
45
+0.5
0
63 MIN.
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
7
8
10
11
9
2
3
1
N.C.
N.O.
COM
SET1
N.C.
N.O.
COM
SET2
U(+)
V(–)
POWER
B
B
A
RTD
THERMOCOUPLE
+
–
comp.
leadwire
+
–
T/C
Display/
Setting
Digital
Computation
A/D
Converter
RY
RY
Base Socket
CJC
Sensor
4
5
6
Specifications are subject to change without notice.
