MODEL: KEP

KEP SPECIFICATIONS

ES-3571 Rev.11 Page 3/3

http://www.m-system.co.jp/

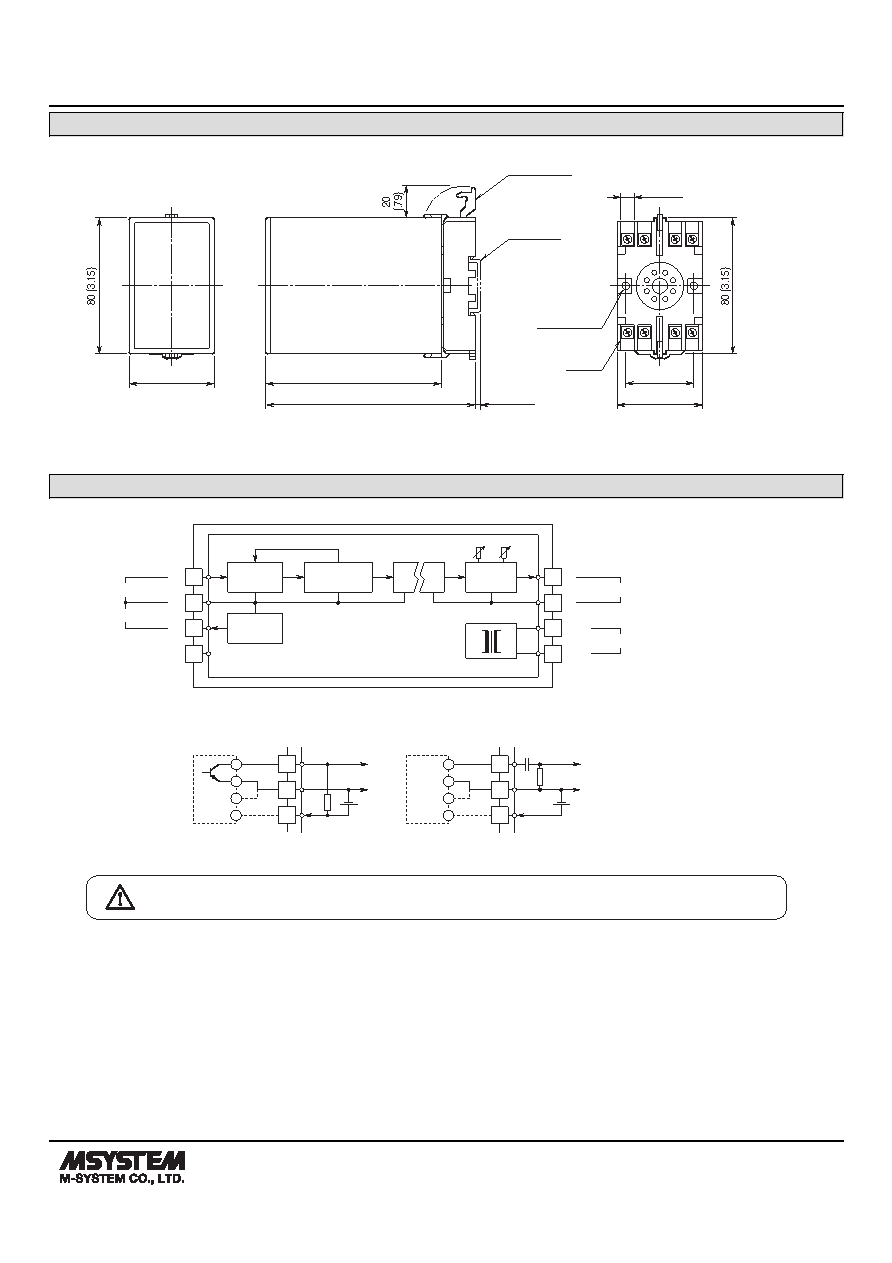

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

103 (4.06)

123 (4.84)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

15 (.59) deep

SCREW

• When mounting, no extra space is needed between units.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

Isolation

Base Socket

S

Z

Waveform

Shaper

Output

Driver

OUTPUT

6

1

2

U(+)

V(–)

POWER

7

8

Digital

Computation

12V Supply

+

–

INPUT

3

5

4

+

SENSOR EXCITATION

3

5

4

4k

Ω

■ Open Collector or Mechanical Contact

Input Connection Examples

+

–

+12V

PWR

■ Voltage Pulse

3

5

4

+

+

–

–

+12V

PWR

+

–

Specifications are subject to change without notice.
