MODEL: JRP2

JRP2 SPECIFICATIONS

ES-1577 Rev.8 Page 4/5

http://www.m-system.co.jp/

EXTERNAL VIEW

Refer to the instruction manual for the setting procedure.

3

2

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

ON

SW1

SW3

SW2

Span Adj.

Detecting Level Adj.

Detecting Level Adj. Pin

Pulse Amplitude Selector

Input Type Selectors

Zero Adj.

Sensor Excitation Adj.

Modular Jack

Input Monitor LED PL1

Input Monitor LED PL2

OPERATION

rev. 30 Hz

fwd. 100 Hz

4mA

20mA

rev. 100 Hz

fwd. 100 Hz

–10V

+10V

0 Hz

+

–

ACCEL.

ACCEL.

DECEL.

STOP

REVERSE

FORWARD

B

A INPUT

INPUT

CUTOUT

CUTOUT

Forward Rotation: Phase A leads the Phase B by 90 degrees.

Reverse Rotation: Phase A lags behind Phase B by 90 degrees.

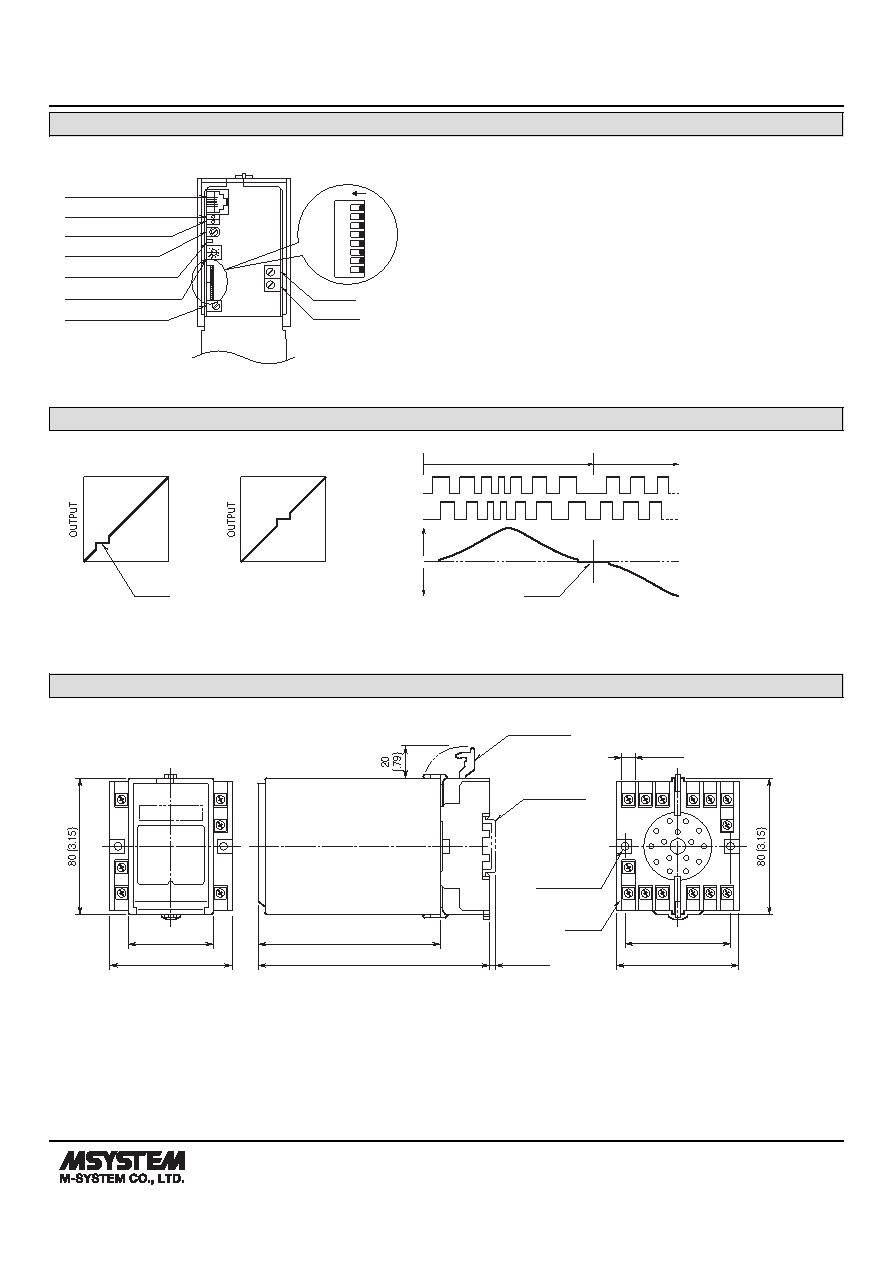

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

50 (1.97)

72 (2.83)

107 (4.21)

136 (5.35)

[3.3 (.13)]

60 (2.36)

72 (2.83)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

25 (.98) deep

14–M3.5

SCREW

• When mounting, no extra space is needed between units.

12

5

6

14

11

1

10

15

4

3

2

7

9

8
