MODEL: DA3

DA3 SPECIFICATIONS

ES-1395 Rev.14 Page 7/7

https://www.m-system.co.jp/

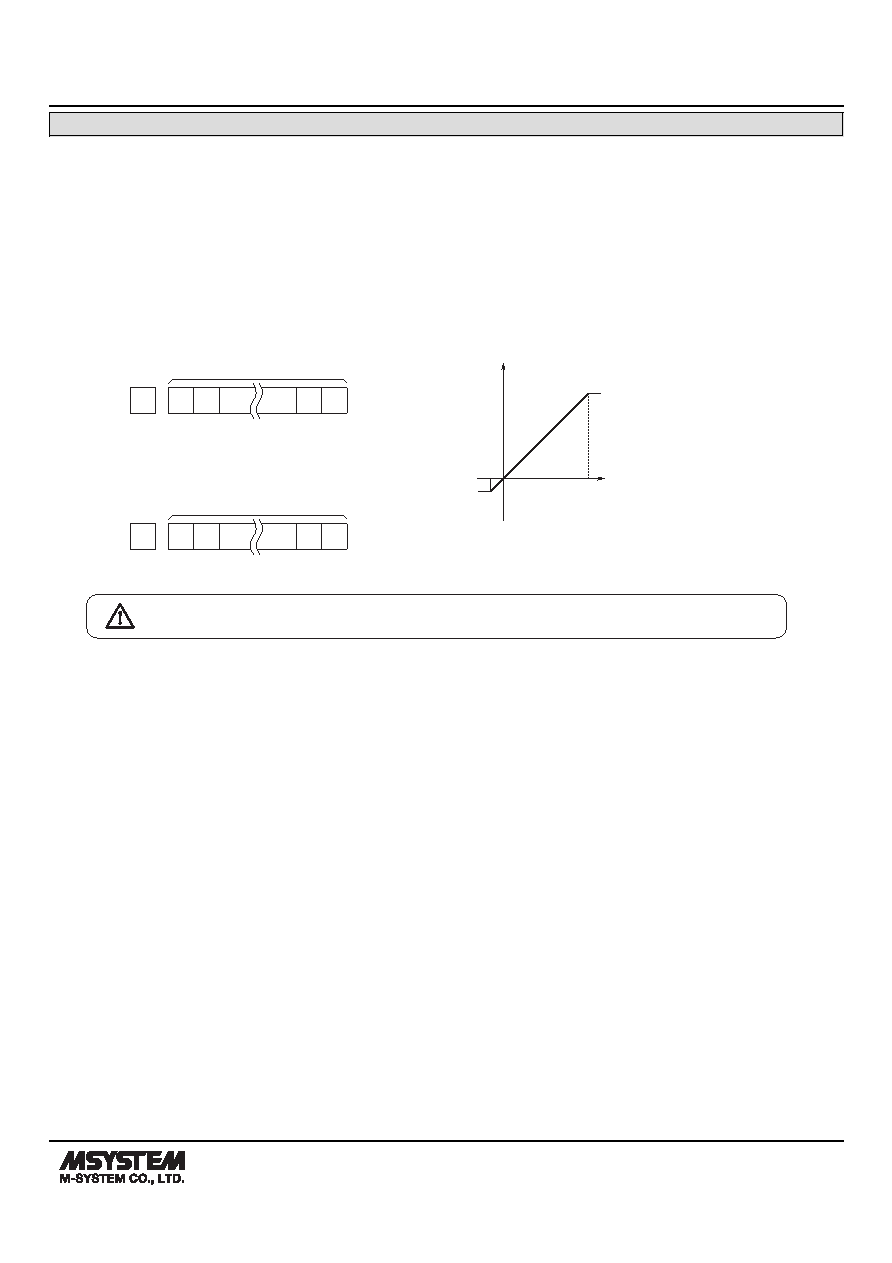

INPUT-OUTPUT RELATION EXAMPLES

• FS

-FS stands for -15 % of the input range (0 to 100 %), which is configured by ITEM 08, display range scaling 0 % and ITEM 09,

display range scaling 100 %. +FS stands for +115 % of the input range.

• OR

When one of the following conditions is true, the digital input overflows (OR).

1) When the input signal is out of the range between -FS and +FS.

2) When the display value (= input signal) exceeds the display range.

The display range differs according to input code. For example, in case of BCD with polarity, it is -9999 to 9999. Please refer to

the instruction manual for detail.

■ BCD, BINARY (WITH POLARITY)

MSB

POL

POLARITY

DATA

LSB

MSB

POL

UNUSED

DATA

LSB

■ OFFSET BINARY & TWO’S COMPLEMENT

–FS

OR

0%

ANALOG OUTPUT

+FS

DIGITAL INPUT

OR

Specifications are subject to change without notice.
