Data Sheet
ADBMS1818
THEORY OF OPERATION
analog.com
Rev. 0 | 47 of 89
Using a Single ADBMS1818
When only one ADBMS1818 is needed, the device can be used as
a single (non daisy-chained) device if the second isoSPI port (Port
B) is properly biased and terminated, as shown in Figure 81 and
Figure 82. ICMP must not be tied to GND but can be tied directly to
IBIAS. A bias resistance (2 kΩ to 20 kΩ) is required for IBIAS. Do
not tie IBIAS directly to VREG or V–. Finally, IPB and IMB must be
terminated into a 100 Ω resistor (not tied to VREG or V–).

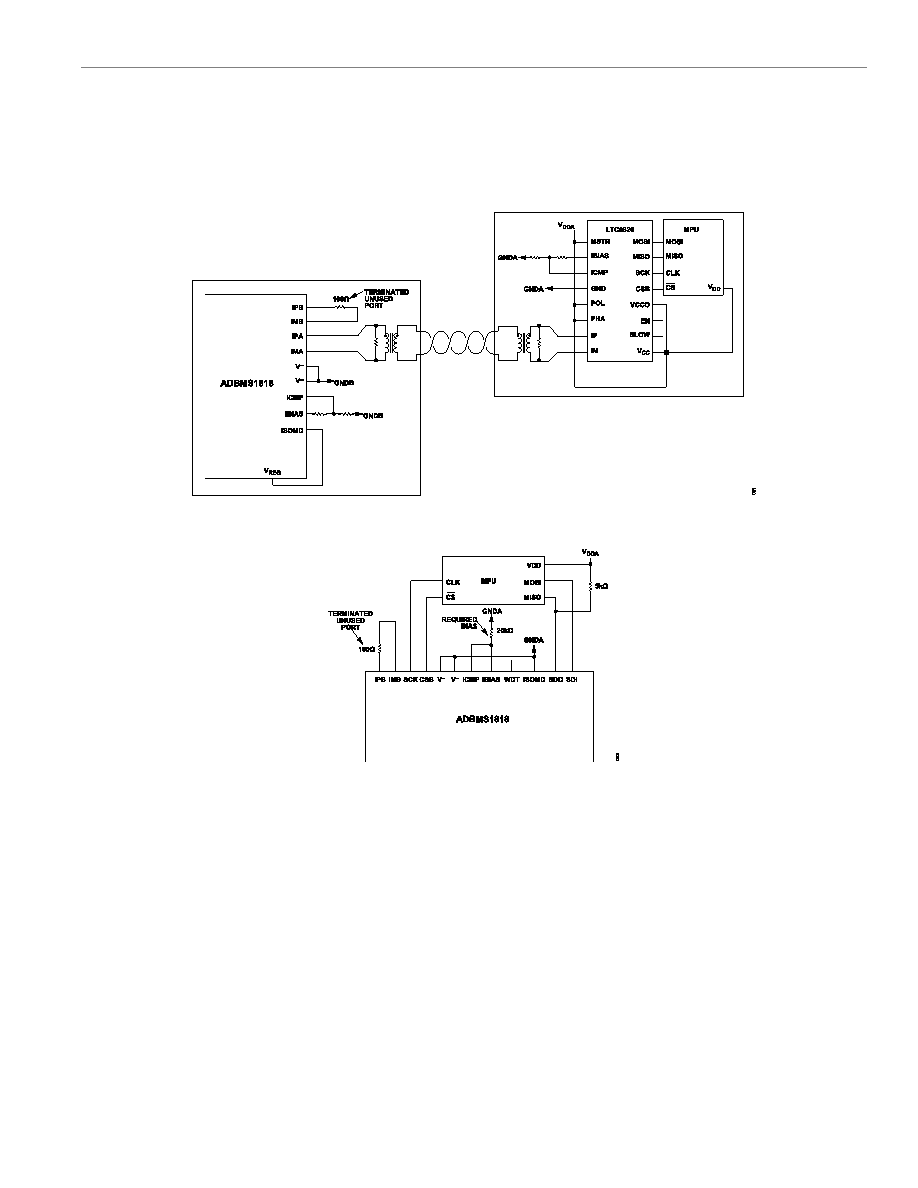

Figure 81. Single Device Using 2-Wire Port A
Figure 82. Single Device Using 4-Wire Port A
