Feb 8, 2021

1

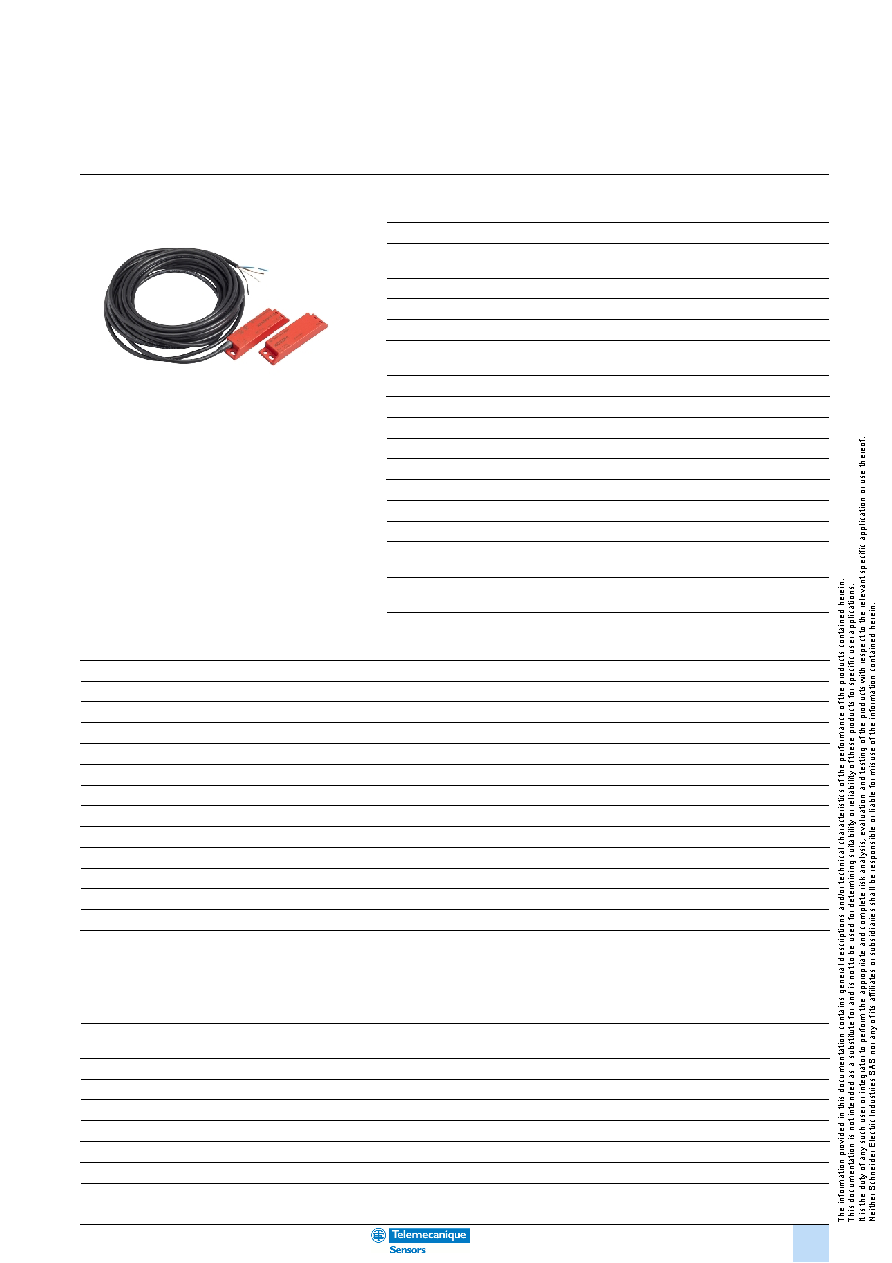

Product data sheet

Characteristics

XCSDMP79110

coded magnetic switch XCSDMP - 2 NC -

staggered - 10m

Main

Range of product

Preventa Safety detection

Product or component

type

Coded magnetic switch

Component name

XCSDMP

Design

Rectangular, standard

Size

88 x 25 x 13 mm

Contacts type and

composition

2 NC

Contact operation

Staggered

Material

Plastic

Electrical connection

Pre-cabled

Cable composition

4 x 0.25 mm²

Cable length

10 m

Number of poles

2

Local signalling

1 LED

Approach directions

3 directions

[Ue] rated operational

voltage

24 V DC

[Ui] rated insulation

voltage

100 V DC

Complementary

[Sa] assured operating distance

8 mm

[Sar] assured tripping distance

20 mm

Maximum [Ie] rated operational current

100 mA

[Uimp] rated impulse withstand voltage

EN/IEC 60947-5-1 2.5 kV

Resistance across terminals

57 Ohm

Short-circuit protection

500 mA external cartridge fuse type gG (gl)

Contacts material

Rhodium

Electrical durability

1200000 cycles

Maximum switching voltage

100 V DC

Switching capacity in mA

5...100 mA

Insulation resistance

1000 MOhm

Breaking capacity

3 VA

Switching frequency

150 Hz

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach PL = e with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach SIL 3 with the appropriate monitoring system and correctly wired

conforming to EN/IEC 61508

Safety reliability data

B10d = 50000000 value given for a life time of 20 years limited by mechanical or

contact wear

Enclosure material

Thermoplastic PBT

Cable material

PVC

Depth

13 mm

Height

88 mm

Width

25 mm

Net weight

0.18 kg
