ADAR2004ACCZ-R7 Folha de dados(PDF) 1 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADAR2004ACCZ-R7 Folha de dados(HTML) 1 Page - Analog Devices |
|
|

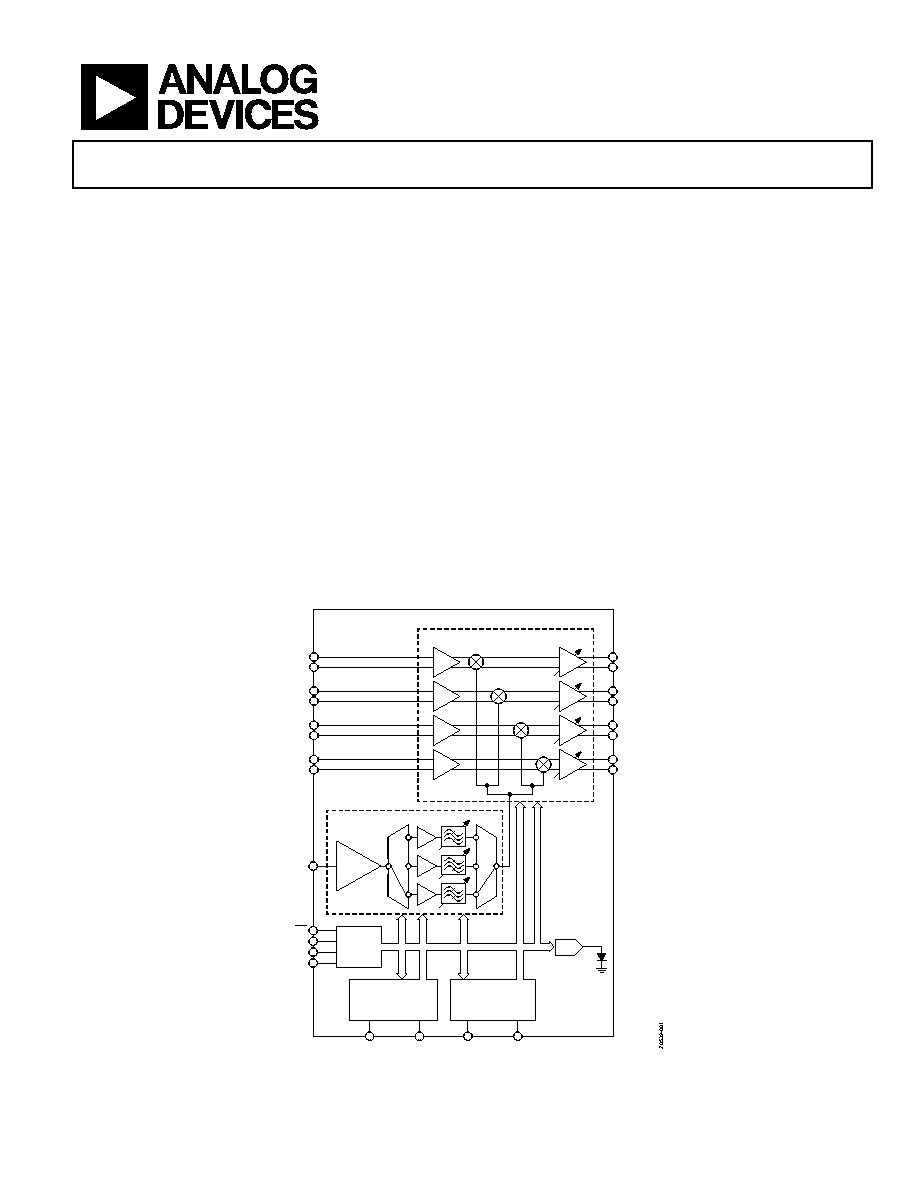

1 / 37 page  10 GHz to 40 GHz, 4-Channel Rx Mixer with 4× LO Multiplier/Filter Data Sheet ADAR2004 Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2020 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com FEATURES Quad LNA, mixer, IF VGA 4× LO multiplier with programmable harmonic filter RF input frequency range: 10 GHz to 40 GHz IF output frequency range: 0 MHz to 800 MHz LO input frequency range: 2.4 GHz to 10.1 GHz Gain range: 21 dB to 41 dB Input P1dB: −20 dBm typical (at minimum gain) Noise figure: 9 dB typical (at maximum gain) 3-wire or 4-wire SPI control On-chip programmable state machines for fast multiplier/filter and receiver switching and control On-chip temperature sensor and ADC DC power: 910 mW (2.5 V supply) 7 mm × 7 mm, 48-terminal LGA package APPLICATIONS Millimeter wave imaging Security Medical Industrial Multichannel receivers GENERAL DESCRIPTION The ADAR2004 is a 4-channel receiver IC that is optimized for millimeter wave body scanning applications. Accepting differential input signals from 10 GHz to 40 GHz, the ADAR2004 provides a low intermediate frequency (IF) output up to 800 MHz. Each receive channel also has independent gain control. The mixer local oscillator (LO) path includes a 4× multiplier requiring an applied LO frequency between 2.4 GHz and 10.1 GHz. The 4× multiplier block includes a programmable filter that helps keep harmonics down before reaching the mixer. Two programmable state machines are included to facilitate simple configuration, control, and fast switching of the frequency multiplier, filter, and receiver sections. These sequencers are programmed through the serial peripheral interface (SPI) and are then operated by pulsed inputs (reset and advance). The ADAR2004 requires only a single 2.5 V supply with power consumption of 910 mW with all channels turned on. The ADAR2004 is available in a 7 × 7 mm, 48-terminal LGA package and is specified from −40°C to +85°C. FUNCTIONAL BLOCK DIAGRAM LNA VGA IFOUT1+ RECEIVER SEQUENCER IFOUT1– RFIN1+ RFIN1– LNA VGA IFOUT2+ IFOUT2– RFIN2+ RFIN2– LNA VGA IFOUT3+ IFOUT3– RFIN3+ RFIN3– LNA ×4 VGA IFOUT4+ IFOUT4– RFIN4+ RFIN4– LOIN ADAR2004 ×4 BUFFER SPI CONTROL MULTIPLIER/FILTER SEQUENCER ×4 CS SDIO SCLK MRST MADV RxRST RxADV SDO MULTIPLIER/FILTER STATE MACHINE (16 STATES) RECEIVER STATE MACHINE (16 STATES) ADC TEMPERATURE SENSOR Figure 1. |
