SWF21FC-R82KA datasheet(1/2 Pages) TAI-TECH

Nome de Peças	SWF21FC-R82KA

Descrição Electrónicos	Winding Type Chip Inductor

PDF	2 Pages

Scroll/Zoom	100%

Fabricante Electrônico	TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]

Página de início	https://www.tai-tech.com.tw/en/

Logo

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

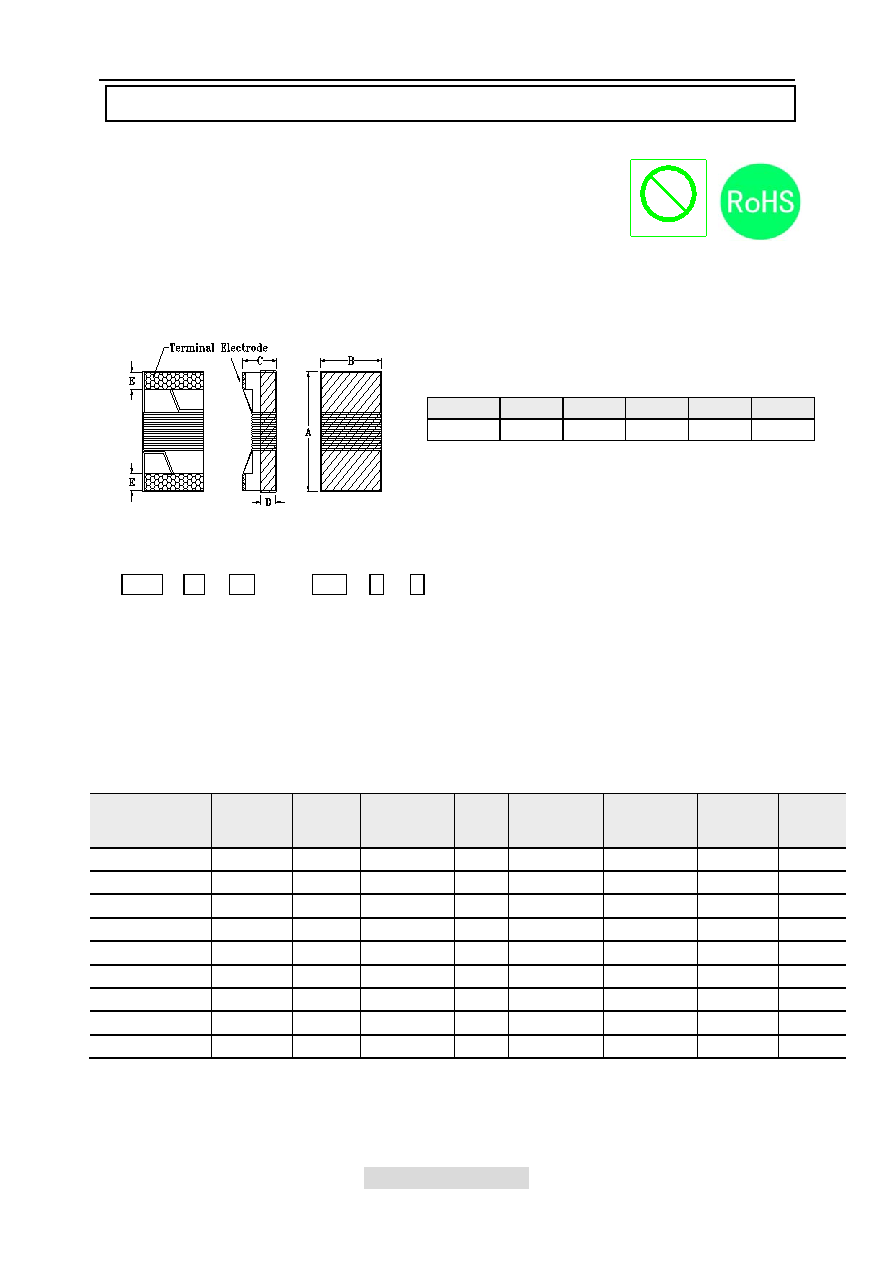

1. Features

2. Dimensions

3. Part Numbering

4. Specification

SWF

21

FC

-

R47

K

A

B

C

D

E

F

A: Series

B: Dimension

L x W

C: Lead free type

D: Inductance

R47=0.47 uH

E: Inductance Tolerance

K=±10%,M=±20%

F: Control S/N

Size

A

B

C

D

E

SWF21FC

2.40 max.

1.60 max.

1.40 max.

0.51 ref.

0.44±0.1

Unit:mm

1. Ferrite core wire wound construction.

2. High Reliability due to wire wound type construction.

3. Small footprint as well as low profile.

4. Application for DC power line.

5. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

6. Operating temperature -40~+125℃ (Including self - temperature rise)

Winding Type Chip Inductor

SWF21FC-SERIES

TAI-TECH

Part Number

Inductance

(uH)

Tolerance

Test Frequency

(Hz)

Q

min.

Test Frequency

(MHz)

Rated Current

(mA) max.

DCR

(Ω) max.

SRF

(MHz) min.

SWF21FC-R47□A

0.47

K,M

0.5V/7.96M

10

7.96

750

0.20

720

SWF21FC-R56□A

0.56

K,M

0.5V/7.96M

10

7.96

730

0.21

665

SWF21FC-R68□A

0.68

K,M

0.5V/7.96M

10

7.96

670

0.28

565

SWF21FC-R82□A

0.82

K,M

0.5V/7.96M

10

7.96

650

0.31

545

SWF21FC-1R0□A

1.00

K,M

0.5V/7.96M

10

7.96

615

0.34

525

SWF21FC-1R2□A

1.20

K,M

0.5V/7.96M

10

7.96

550

0.39

473

SWF21FC-1R5□A

1.50

K,M

0.5V/7.96M

10

7.96

520

0.45

300

SWF21FC--1R8□A

1.80

K,M

0.5V/7.96M

10

7.96

500

0.48

230

SWF21FC-2R2□A

2.20

K,M

0.5V/7.96M

10

7.96

420

0.67

215

Halogen-free

Halogen
