INTEGRATED CIRCUITS DIVISION

DS-IX4351NE-R01

www.ixysic.com

1

Features

• Separate 9A peak source and sink outputs

• Operating Voltage Range: -10V to +25V

• Internal negative charge pump regulator for

selectable negative gate drive bias

• Desaturation detection with soft shutdown sink driver

• TTL and CMOS compatible input

• Under Voltage lockout (UVLO)

• Thermal shutdown

• Open drain FAULT output

Applications

• Driving SiC MOSFETs and IGBTs

• On-board charger and DC charging station

• Industrial inverters

• PFC, AC/DC and DC/DC converters

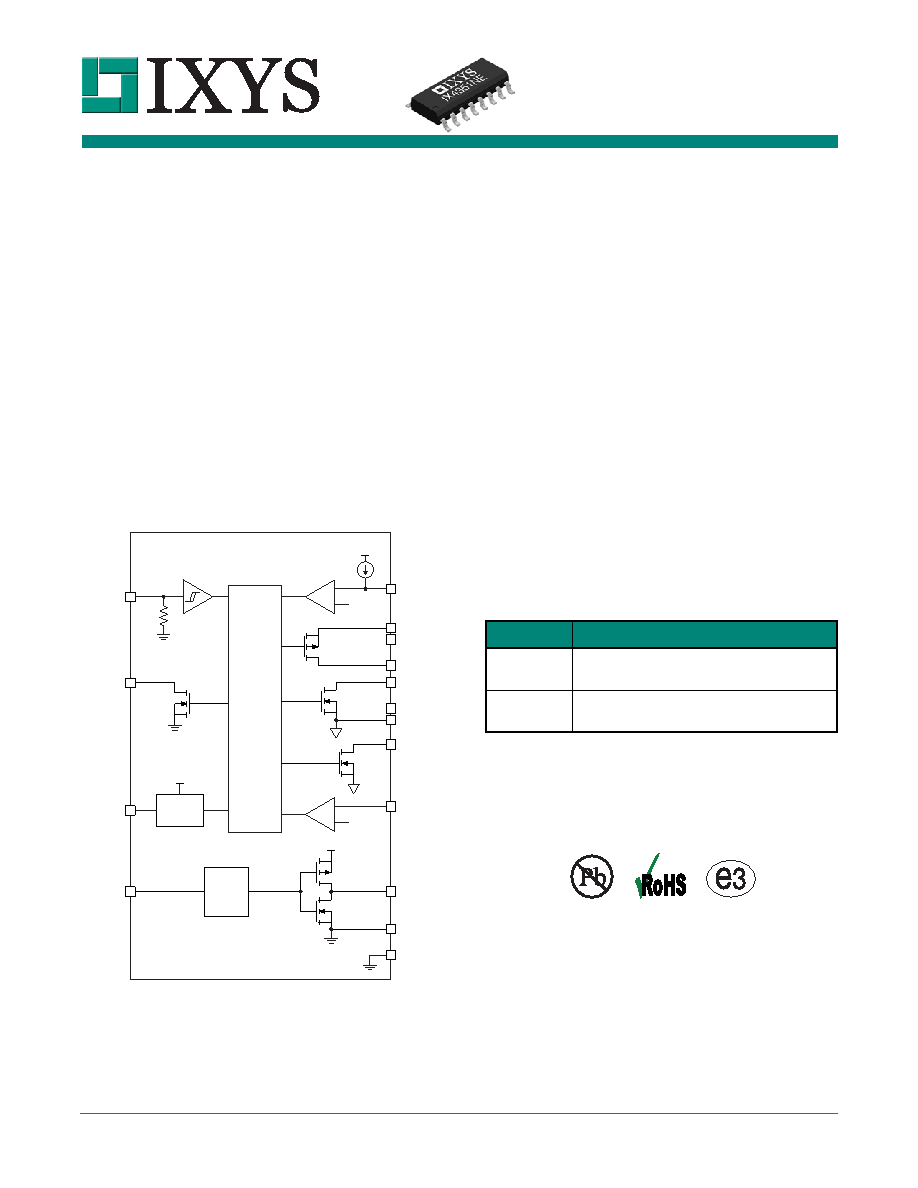

IX4351 Functional Block Diagram

Description

The IX4351NE is designed specifically to drive SiC

MOSFETs and high power IGBTs. Separate 9A

source and sink outputs allow for tailored turn-on and

turn-off timing while minimizing switching losses. An

internal negative charge regulator provides a

selectable negative gate drive bias for improved dV/dt

immunity and faster turn-off.

Desaturation detection circuitry detects an over

current condition of the SiC MOSFET and initiates a

soft turn off, thus preventing a potentially damaging

dV/dt event. The logic input is TTL and CMOS

compatible; this input does not need to be level shifted

even with a negative gate drive bias voltage.

Protection features include UVLO and thermal

shutdown detection. An open drain FAULT output

signals a fault condition to the microcontroller.

The IX4351NE is rated for operational temperature

range of -40°C to +125°C,and is available in a

thermally enhanced 16-pin power SOIC package.

Ordering Information

Charge

Pump

Control

Gate and

Control

Logic

4.6V

Regulator

IN

FAULT

V

DD

V

REG

SET

GND

COM

CAP

V

DD

2.6V

INSOFT

V

SS

OUTSOFT

V

SS

OUTSNK

OUTSRC

V

DD

DESAT

6.8V

V

DD

15

10

2

3

4

1

16

14

13

12

11

7

5

6

8

9

V

DD

V

SS

Part

Description

IX4351NE

16-Pin power SOIC with exposed thermal pad.

In tubes (50/Tube)

IX4351NETR

16-Pin power SOIC with exposed thermal pad.

In Tape & Reel (2000/Reel)

IX4351NE

9A Low Side SiC

MOSFET & IGBT Driver
