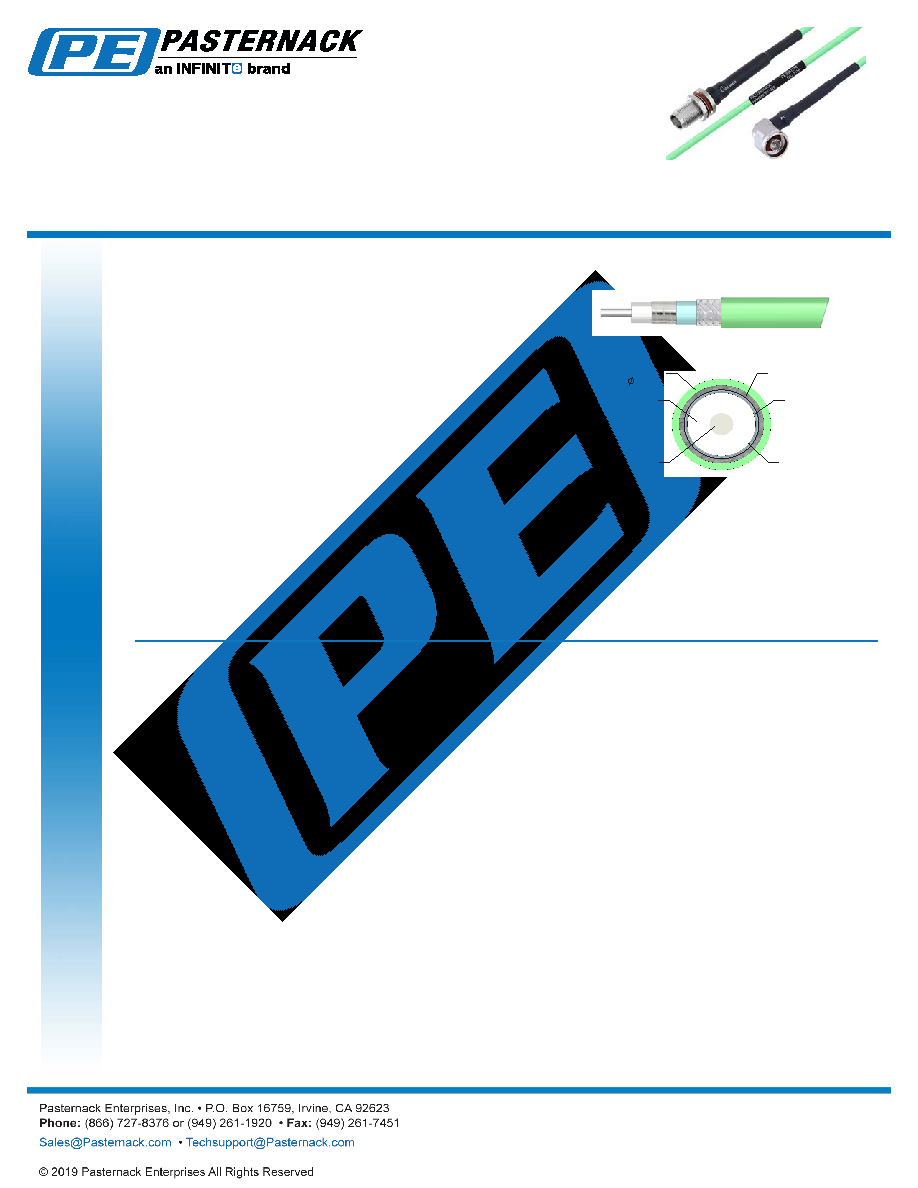

1

Configuration

• Connector 1: PE45444 (TNC Female Bulkhead)

• Connector 2: PE45448 (N Male Right Angle)

• Cable: PE-P160LL

Features

• Max Frequency 18 GHz

• 82.5% Phase Velocity

• Triple Shielded

• FEP Jacket

• Thermally Pre-Conditioned Cable

• Captivated Stainless Steel Connectors

• Expanded PTFE dielectric

• J-STD-Soldering

• Lot Traceability

• Test Report

• Ship same day

JACKET

.160 [4.06]

OUTER BRAID

INNER SHIELD

INNER BRAID

DIELECTRIC

SOLID CENTER

CONDUCTOR

SECTION VIEW

Applications

• General Purpose

• Laboratory Use

• High Reliability

• Extreme Temperatures

• Military Electronics

• Avionics

• IFF

• SATCOM

• ECM

.

Description

Pasternack’s temperature conditioned low loss cable assemblies are part of our full line of reliable RF components avail-

able for shipment same day. These commercial-off-the-shelf (COTS), RF / microwave cable assemblies are designed and

processed with high reliability in mind. Captivated stainless steel cable assembly connectors and thermally pre-conditioned

triple-shielded coaxial cable are assembled using J-STD soldering processes and WHMA-A-620 workmanship criteria. The

combination of stable materials, processing and acceptance testing work together to create a dependable cable assembly for

applications where performance over time is important or the cost of failure is high. Each finished COTS temperature condi-

tioned low loss cable assembly is traceable to its component lots and a test report is available for every lot produced.

Our highly reliable low loss conditioned RF cable assembly datasheet specifications and drawing with dimensions are shown

below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to

configure and customize their signal connections however they like. Whether the need is to provide reliable stable connections

or fielding dependable RF cables, Pasternack has the right cable assemblies for the job. Pasternack can also expertly build

your custom cable assemblies for you and ship them same day.

Referenced Specifications

IPC/WHMA-A-620

Requirements and Acceptance for Cable and Wire Harness Assemblies

MIL-STD-348

Radio Frequency Connector Interfaces for MIL-DTL-3643, MIL-DTL-3650, MIL-DTL-3655, MIL-

DTL-25516, MIL-PRF-31031, MIL-PRF-39012, MIL-PRF-49142, MIL-PRF...

IPC J-STD-001

Requirements for Soldered Electrical and Electronic Assemblies

IPC J-STD-006

Requirements for Electronic Grade Solder Alloys and Fluxed and Non-Fluxed Solid Solders for

Electronic Soldering Applications

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications: Temperature Conditioned TNC Female Bulkhead to N Male Right Angle Low Loss Cable Us-

ing PE-P160LL Coax PE3M0214

PE3M0214 REV 1.2

Temperature Conditioned TNC Female Bulkhead to N Male

Right Angle Low Loss Cable Using PE-P160LL Coax

RF Cable Assemblies Technical Data Sheet

PE3M0214
