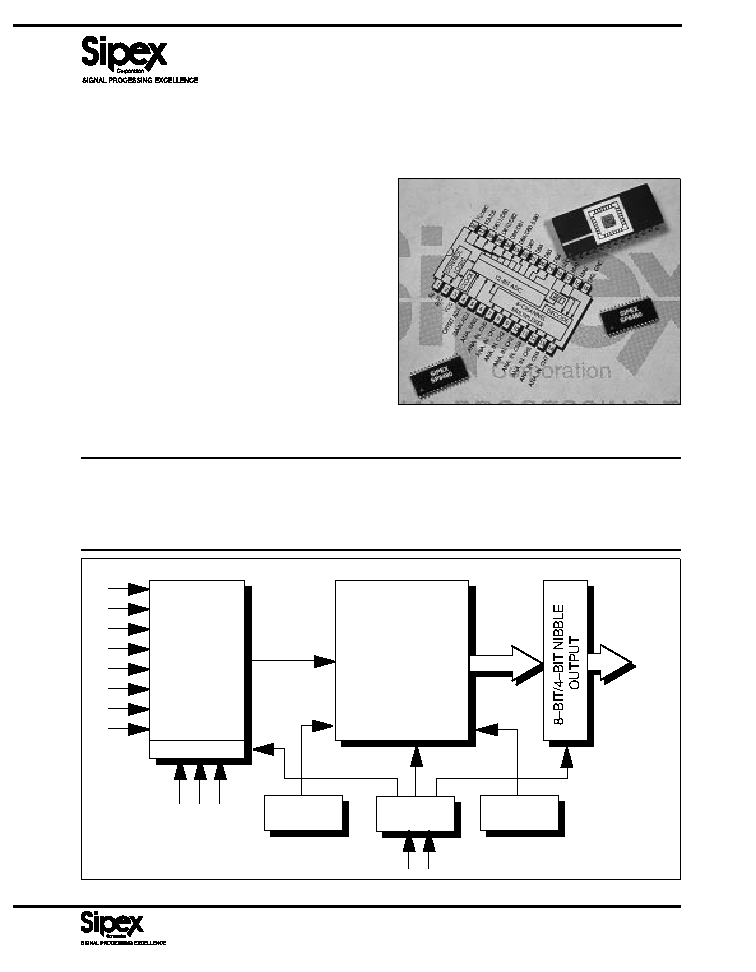

289

CONTROL

LOGIC

MULTIPLEXER

CLOCK

REFERENCE

12-BIT A/D

CONVERTER

MUX DECODE

DESCRIPTION…

The SP8480 Series are complete monolithic data acquisition systems, featuring 8-channel

multiplexer, internal reference and 12-bit sampling A/D converter in 28–pin plastic DIP or SOIC

packages. Linearity errors of

±0.5 and ±1.0 LSB, and Differential Non-linearity to 12-bits are

guaranteed, with no missing codes over temperature. Multiplexer settling plus acquisition time

is 1.9

µs maximum; A/D conversion time is 8.1µs maximum.

s Complete Monolithic 8-Channel, 12-Bit

DAS

s 100kHz Throughput

s 16-Bit Microprocessor Bus Interface

s MUX Inputs Overvoltage Protected

s Parallel 8/4-Bit Nibble Output

s Tri-State Latched Output

s No Missing Codes to 12-Bits

s 28-pin SOIC and PDIP package

s 200mW Max Power Dissipation

(140mw Typ.)

*Formerly part of the SP410 Series.

SP8480*

Monolithic, 12–Bit Data Acquisition System
